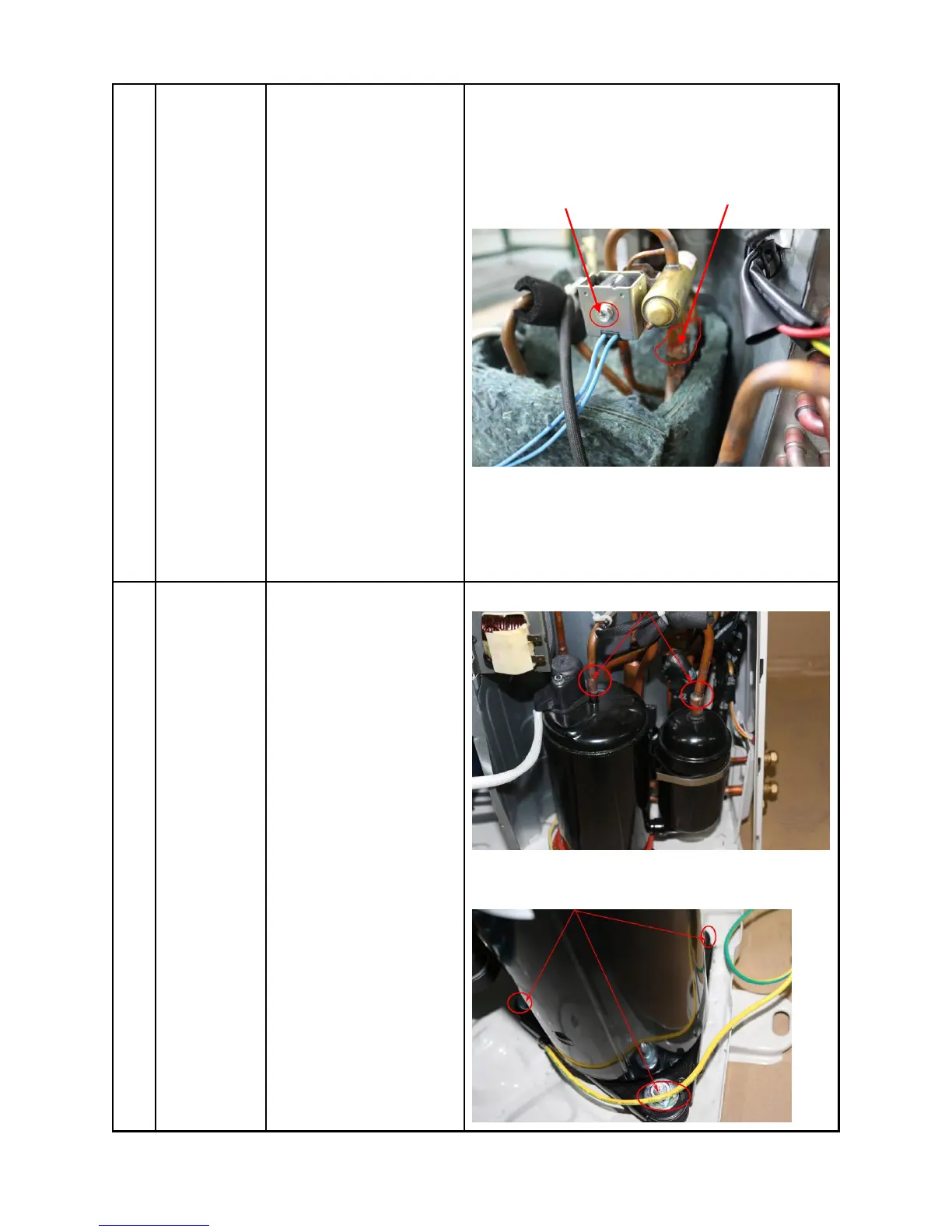

4 Four-way
valve
How to remove the
four-way valve.
1Perform work of item
1,3.
2)Recover refrigerant from
the refrigerant circuit.
3)Remove the screw of the
coil and then remove the
coil.
4)Detach the welded parts
of four-way valve and pipe.
5)Then the four-way valve
assy can be removed
The picture of four-way valve may be different from
the one on your side.
5 Compressor
How to remove the
compressor.
1) After perform work of
item1,3. Recover
refrigerant from the
refrigerant circuit.
2) Remove the
discharge pipe and suction
pipe with a burner.
3) Remove the hex nuts
and washers fixing the
compressor on bottom
plate.
4) Lift the compressor
from the base pan
assembly.
2
3
3
