Midea MCHSU-24PHH2

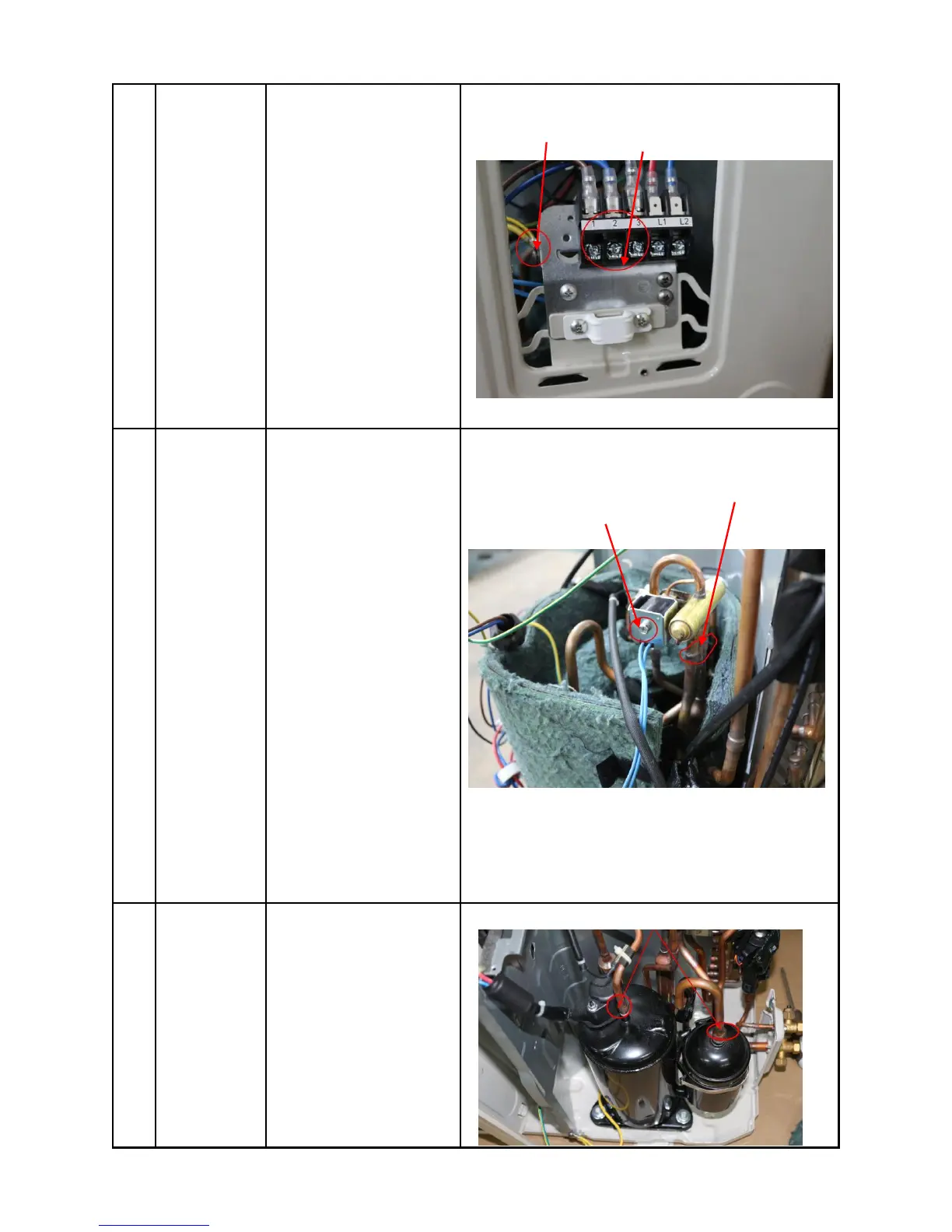

5) Remove the
grounding screw.
6) Remove the
Wires (1,2,3).
Then remove the
electronic control box.
○
5
○
6
4 Four-way
valve
How to remove the
four-way valve.
1) Perform work of
item1,3.
2) Recover refrigerant
from the refrigerant circuit.
3) Remove the screw of
the coil and then remove
the coil.
4) Detach the welded
parts of four-way valve
and pipe.
5) Then the four-way
valve ass’y can be
removed
The picture of four-way valve may be different from
the one on your side.
○
3
○
4
5 Compressor
How to remove the
compressor.
1) After perform work of
item1,3.
2) Remove the
discharge pipe and
suction pipe with a burner.
3) Remove the hex nuts
and washers fixing the
○
2
