Midea MDV-335(12)W/D2RN1T(C)

V4+R VRF 50/60Hz
12 201702
Midea V4+R Series Service Manual
1 Layout of Functional Components
MDV-252(8)W/D2RN1T(C) / MDV-280(10)W/D2RN1T(C) / MDV-335(12)W/D2RN1T(C)

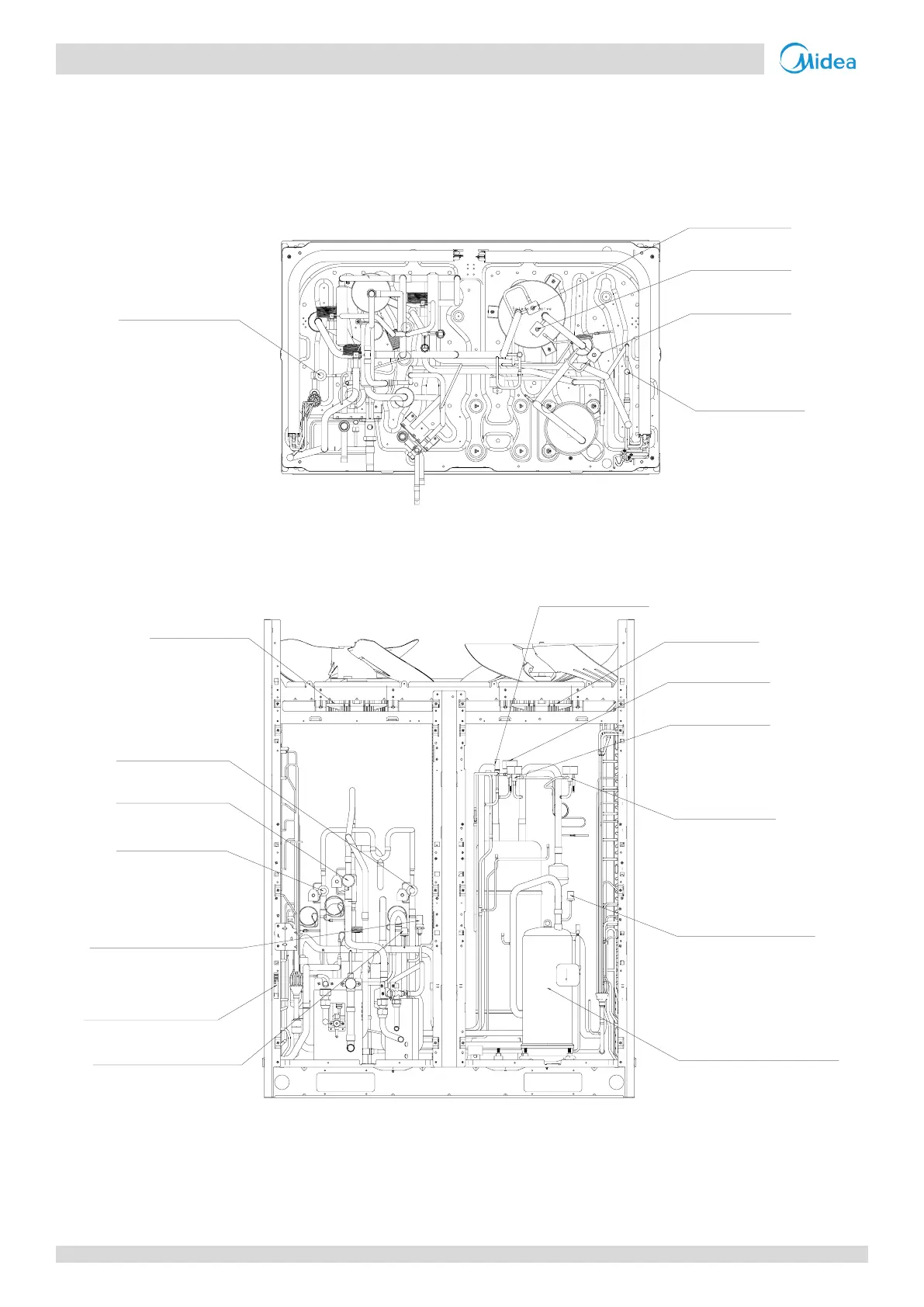

Figure 2-1.1: MDV-252(8)W/D2RN1T(C) / MDV-280(10)W/D2RN1T(C) / MDV-335(12)W/D2RN1T(C) top view
Figure 2-1.2: MDV-252(8)W/D2RN1T(C) / MDV-280(10)W/D2RN1T(C) / MDV-335(12)W/D2RN1T(C) front view
Electronic
expansion valve
Solenoid valve
Solenoid valve
Solenoid valve
Electronic
expansion valve
DC fan motor
Four-way valve
Four-way valve
Four-way valve
High pressure sensor
Outdoor ambient
temperature sensor
High pressure switch
Unloading valve
DC fan motor
Solenoid valve
Solenoid valve
Solenoid valve
Low pressure switch
DC inverter compressor
