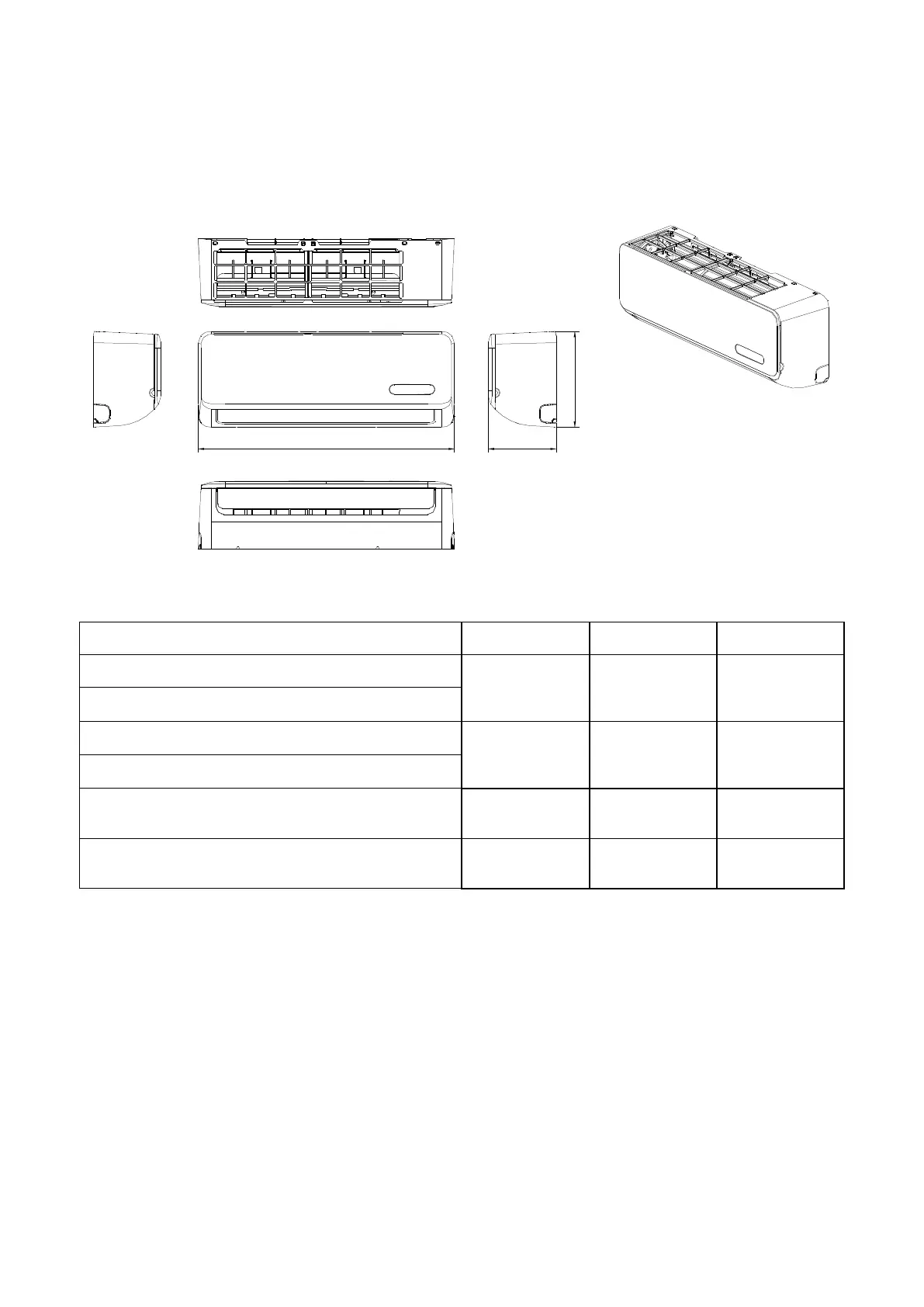

3. Dimension
3.1 Indoor Unit
W
D
H
Model
W
D
H
MEHS-09NiH2
680
(26.8in)
178
(7.0in)
255
(10.0in)
MEHS-09NIH1
MEHS-12NiH2
770mm
(30.3in)
188mm
(7.4in)
255mm
(10.0in)
MEHS-12NIH1
MEHS-18NIH2
905mm
(35.6in)
198mm
(7.8in)
275mm
(10.8in)
MEHS-22NIH2
1030mm
(40.6in)
218mm
(8.6in)
315mm
(12.4in)
6
8
Table of Contents
Table of Contents
1
Precaution
3
Safety Precaution
3
Warning
3
Part Names and Functions
6
Model Names of Indoor/Outdoor Units
6
Dimension
7
Indoor Unit
7
Outdoor Unit
8
Refrigerant Cycle Diagram
10
Wiring Diagram
11
Indoor Unit
11
Outdoor Unit
13
Installation Details
19
Connecting the Cables
19
Pipe Length and the Elevation
19
Installation for the First Time
20
Adding the Refrigerant after Running the System for Many Years
21
Re-Installation While the Indoor Unit Need to be Repaired
21
Re-Installation While the Outdoor Unit Need to be Repaired
22
Operation Characteristics
24
Electronic Function
25
Abbreviation
25
Display Function
25
Main Protection
26
Operation Modes and Functions
27
Troubleshooting
33
Indoor Unit Error Display
34
Outdoor Unit Error Display
35
Diagnosis and Solution
40
5
Based on 1 rating
Ask a question
