10.2 Outdoor unit

Note: This part is for reference, the photos may have slight difference with your machine.

MCHS-09PSH1，

No.

Part name Procedures Remarks

1 Panel plate

How to remove the panel

plate.

1)Stop operation of the

air conditioner and turn

“OFF” the power

breaker.

2) Remove the big handle

first,then remove the top

cover (3 screws)

3)Remove the screws of

front panel(7 screws)

(4) Remove the screws of

the right side panel(11

screws)

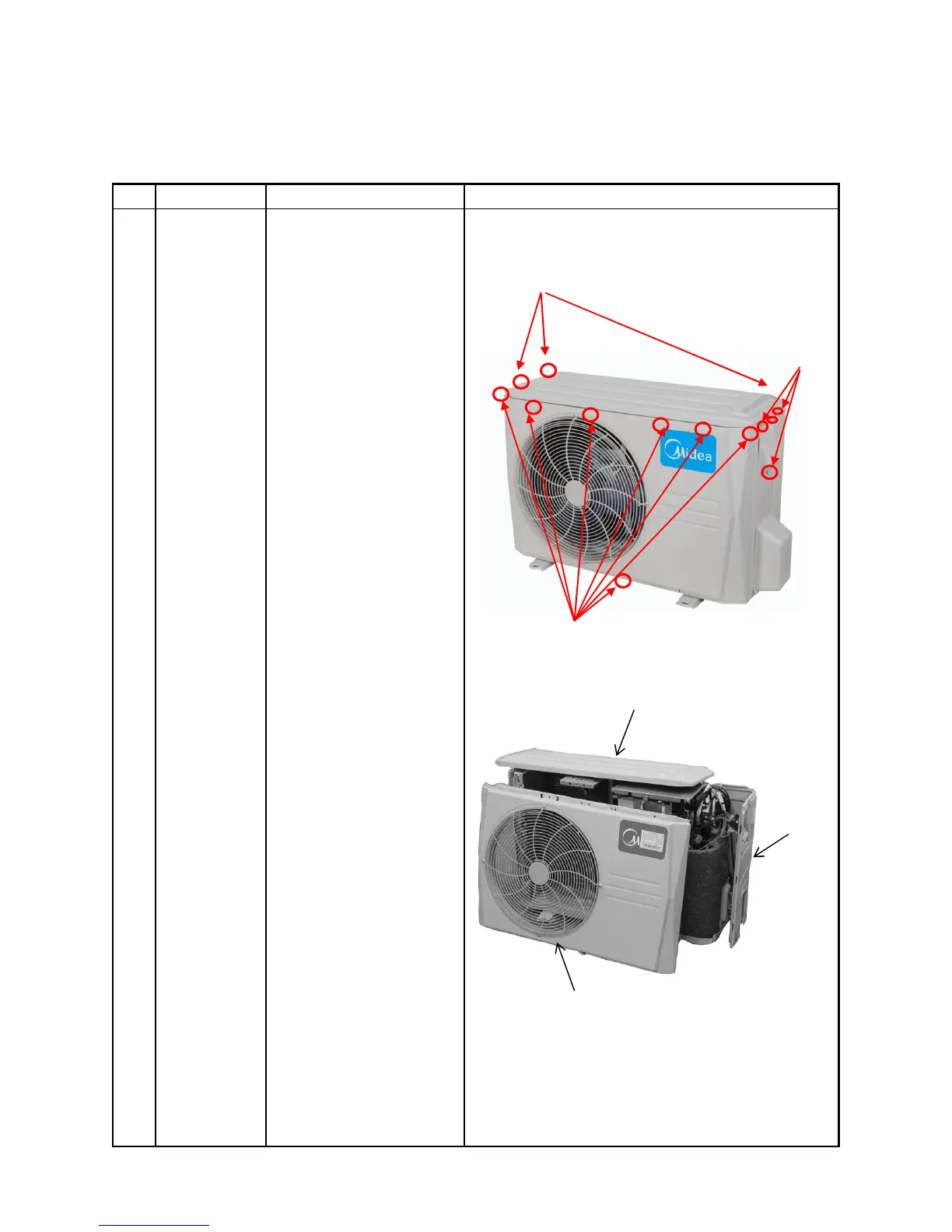

Screws of front panel(7 screws)

Screws of top panel(3 screws,1 screws is under

the big handle)

3 screw of

big handle

②

④

③
