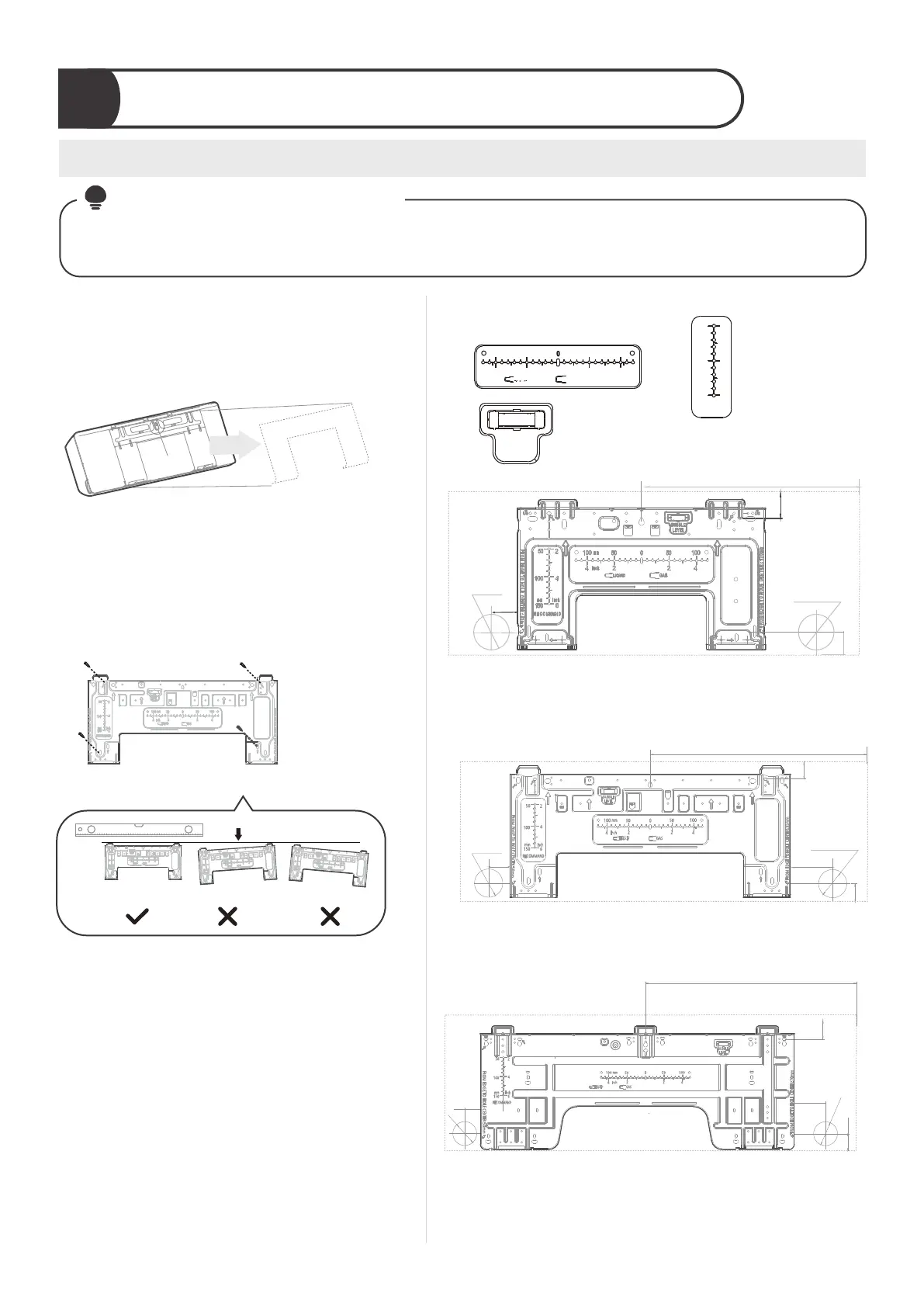

Determine wall hole location
Correct orientation of Mounting Plate
Remove the screw that attaches the
mounting plate to the back of the
indoor unit.
Secure the mounting plate to the wall
with the screws provided. Make sure
that mounting plate is flat against
the wall.
Drill wall hole for connective piping2
Screw
Step 1：
Step 3：
Step 2：
Confirm the mounting plate you own.
Determine the location of the wall hole based
on the position of the mounting plate. The
dotted rectangular box on the right figure
shows the size of your product.
The size of the wall hole is determined by the connective pipes. When the size of the gas side
connective pipe is 16mm(5/8") or more, the wall hole should be 90mm(3-9/16"). For the size of
connective pipe is less than 16mm(5/8"), the wall hole should be 65mm(2-1/2").
NOTE
: The wall hole size
11
Φ
Φ
Indoor unit dimensions(WxH):
795mm(31in)x295mm(11.6in)
Indoor unit dimensions(WxH):
965mm(38in)x322mm(12.7in)
Indoor unit dimensions(WxH):
1140mm(44.8in)x370mm(14.6in)
Unit: mm(inch)
CAUTION: For the convenience of installation,
there are bubble level, carved dimensions on
the mounting plate.The Bubble level on the
mounting plate can’t be removed. If it is broken,
make sure to clean up the leaking liquid.
Vertical direction
ruler
Horizontal direction ruler
Φ
50(1.9)
95(3.7)
120(4.7)
570.7(22.5)
70(2.8)
50(1.9)
pipe hole
65(2.5)
Φ
pipe hole
65(2.5)
Φ
pipe hole
90(3.54)
Φ
pipe hole
90(3.54)
Φ
pipe hole
65(2.5)
50(1.9)
Φ
pipe hole
65(2.5)
490(19.3)
425(16.7)
50(1.9)
40(1.6)
40(1.5)
60(2.4)
51(2.0)
BUBBLE
LEVEL
150
100
50
2
4
6
RECOMMAND
mm
inch
100
100
50
50
2
2
4
4
LIQUID
GAS
mm
inch
40(1.6)
