Before installing the indoor unit, refer to the label on the product box to make sure that the
model number of the indoor unit matches the model number of the outdoor unit.

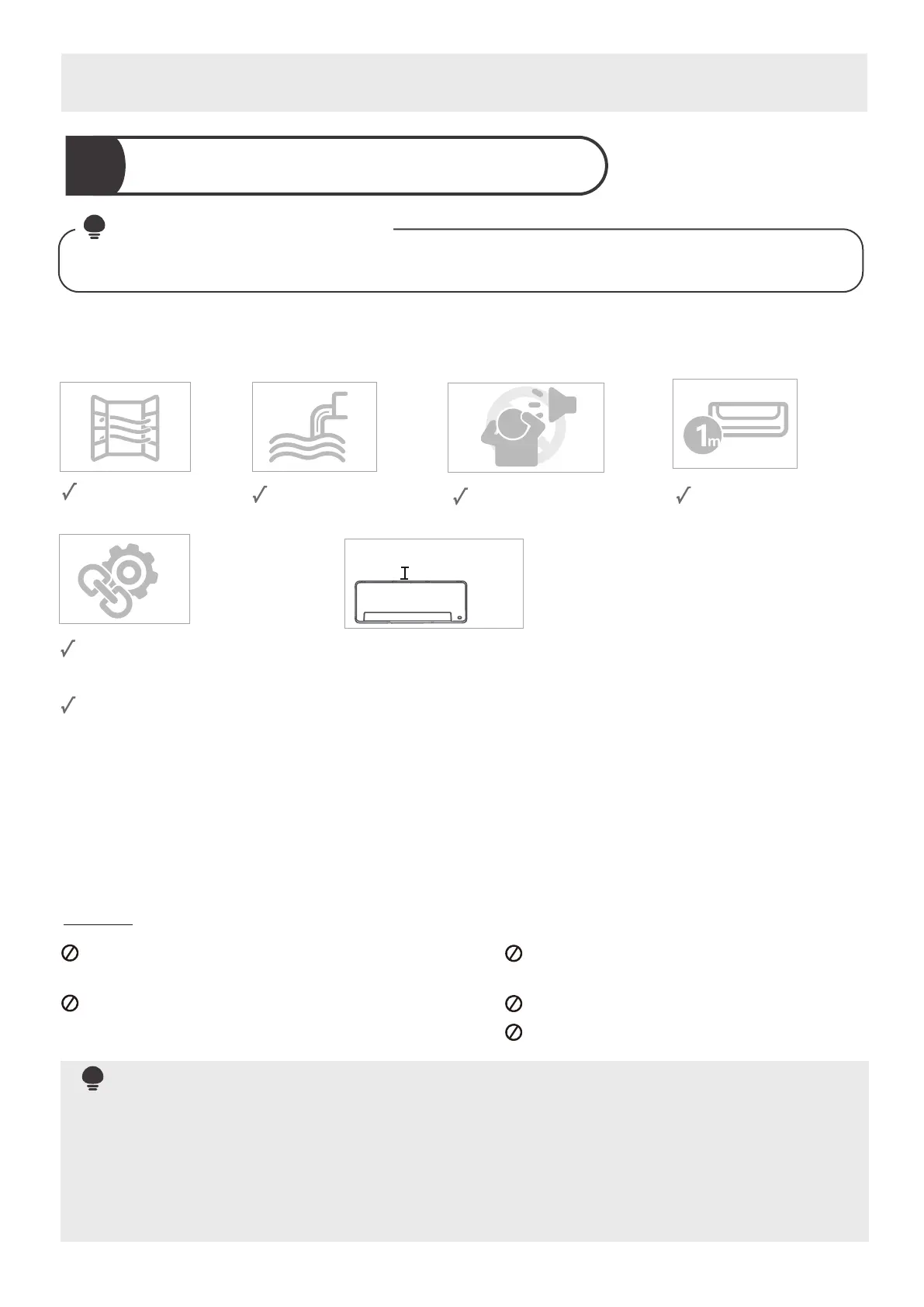

The following are standards that will help you choose an appropriate location for the unit.
Proper installation locations meet the following standards:
Good air circulation
Convenient drainage
Noise from the unit will
not disturb other people.
Firm and solid—the
location will not vibrate
Strong enough to support
the weight of the unit
A location at least one
meter from all other
electrical devices (e.g.,
TV, radio, computer)
DO NOT
install unit in the following locations:
Near any source of heat, steam, or
combustible gas
Near flammable items such as curtains or
clothing
Near any obstacle that might block air
circulation
Near the doorway
In a location subject to direct sunlight
Install You Indoor Unit
Select installation location1
10
NOTE
NOTE: FOR PRODUCT INSTALLATION
: Prior to installation
If there is no fixed refrigerant piping:
While choosing a location, be aware that you should leave ample room for a wall hole (see
Drill wall hole for connective piping step) for the signal cable and refrigerant piping that
connect the indoor and outdoor units. The default position for all piping is the right side of
the indoor unit (while facing the unit). However, the unit can accommodate piping to both
the left and right.
Distance from ceiling is determinded
by the installation method.
If no need the back holder to prop up the unit:
Finishing the pipe and cable connections before mount the
indoor unit on the wall. If the instllation height is limited, 5cm
from the ceiling is allowable, but this can lower product
performance. To ensure enough space to install and remove
the top air filter, keep at least 10cm or more from the ceiling.
Need the back holder to prop up the unit:
If connecting pipe and cable with front panel open, the
minimum distance from ceiling is 22cm or more, if
connecting pipe and cable without front panel(remove it) ,
the minimum distance from ceiling is 11cm or more.
