Floor Standing MFM DM16-01.01.25en
Service manual 16
6.2 Installing
6.2.1 Indoor Unit:

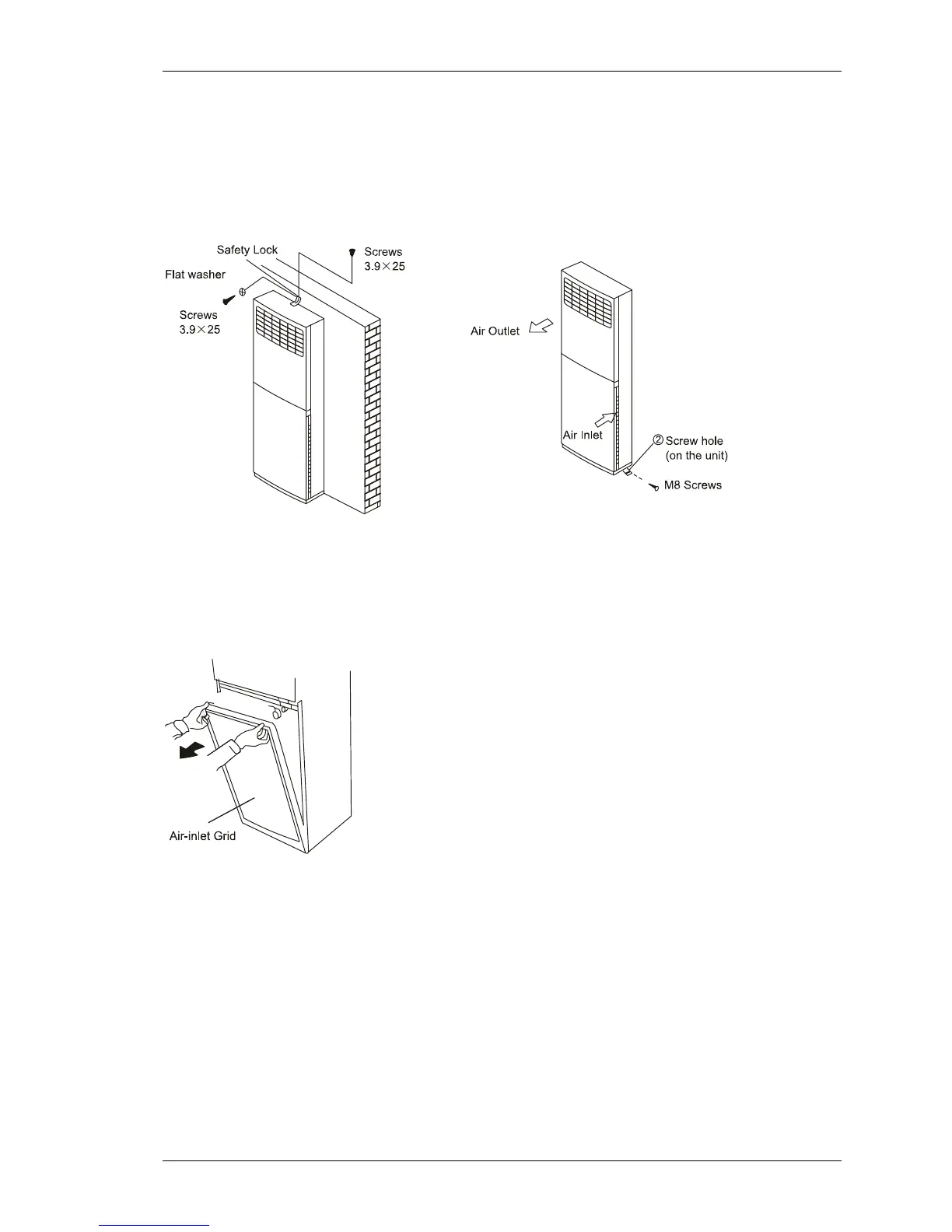

1. Anti-falling;
To prevent the indoor unit from falling, you must:
a. Pay full attention to the unit because its long outer shape makes it easy to fall;
b. Firmly fix the unit to the wall or in the ground to avoid accidental falling.
2. Dismounting the air-inlet grid
Please take off the air-inlet grid before connecting the pipes/wires.
The grid is hitched by a loop inside. To dismount the air-inlet grid, hold both sides of the grid and
pull it up, let it slant downwards until the loop become straight. Then removing the screws fastened
the loop with the grid, and the grid goes free.
3. Take the pipe clip off before connecting the pipes and wiring; fit it when these finished.
Use accessories to connect the pipes/wires on both sides and back side.
