DM16-01.01.25en Floor Standing MFM
17 Service manual
6.2.2 Outdoor Unit:
1. Ship the a/c to the installation place originally packed;
2. Be careful while hanging the unit because the center of gravity of the unit is not centralized;
3. Do not make the angle of inclination more than 45 degrees while shipping;(Avoid horizontal
storage)
4. Be sure the electric insulation work is well done if installed on metal ceiling / wall.
5. Fix the unit feet with bolts (M10/M8). Be sure the unit is fixed strongly enough to against blast or
earthquake.

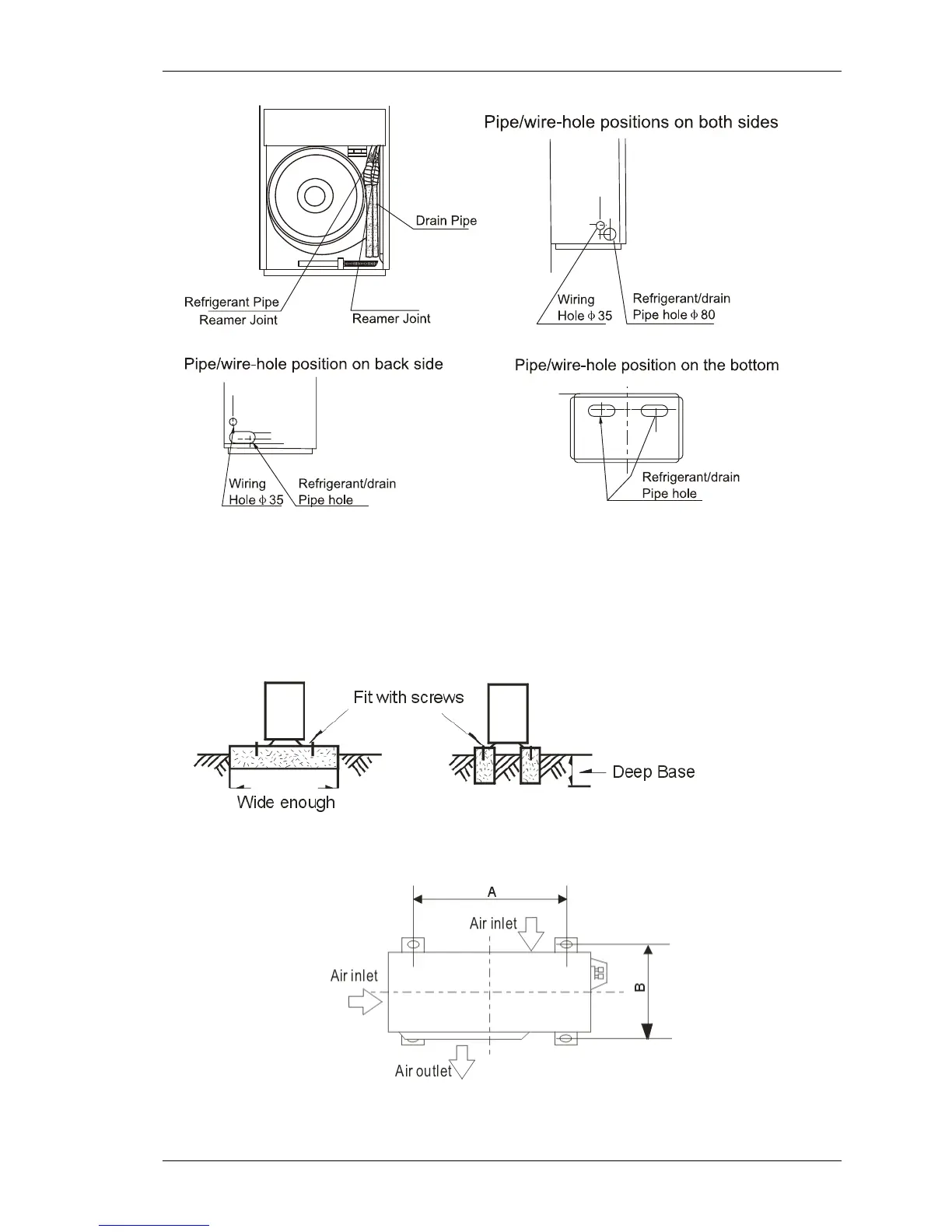

6. Make a concrete basement to the unit by the following references.
For the value of A and B, please refer to the dimension part.
