MCAC-ATSM-2011-12 Air-cooled modular chiller unit 50Hz
123

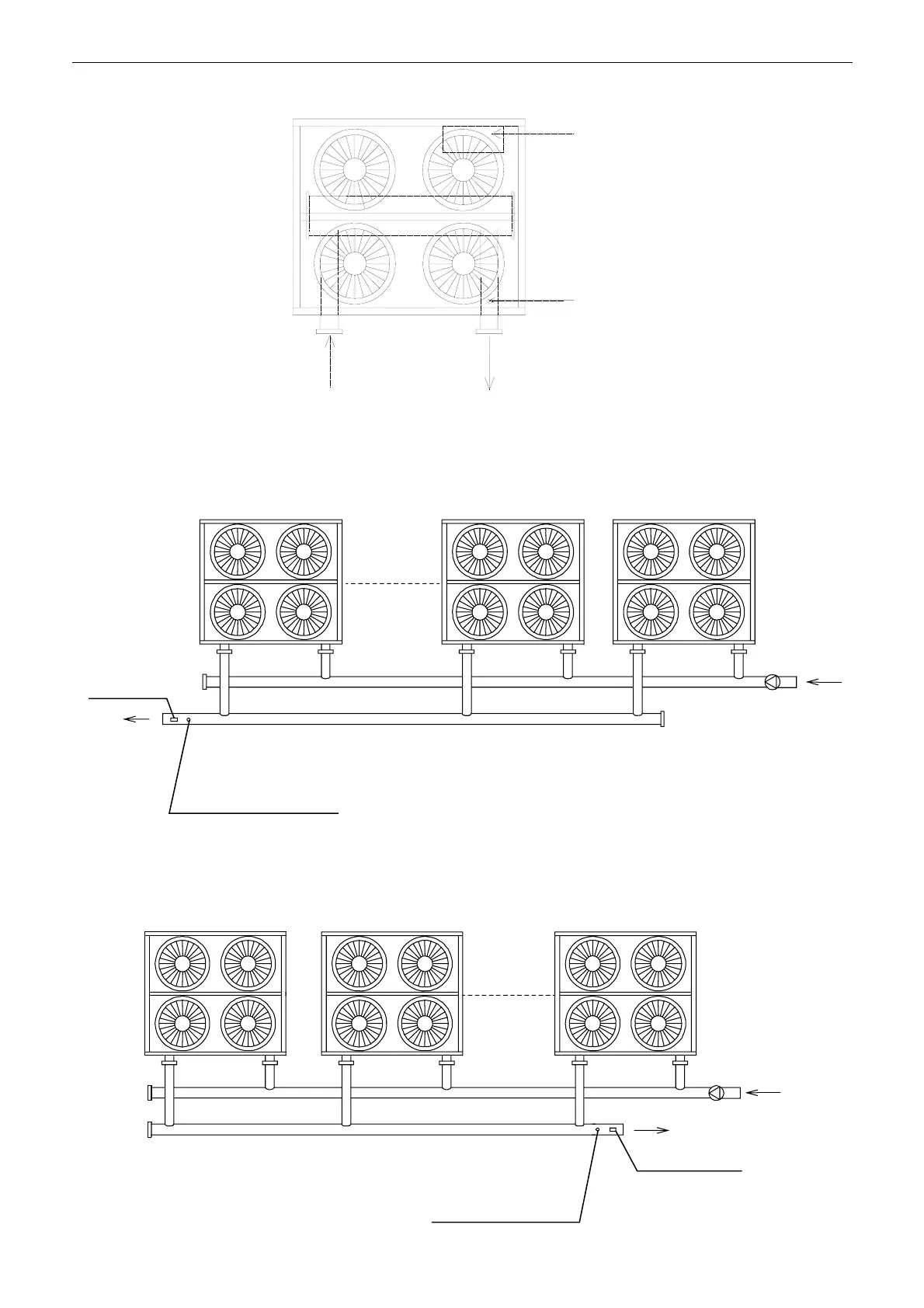

12.2.6 Installation of water system pipeline for 130KW module
Installation of single-module water system pipeline
Electric control box
Total water outlet
temp sensor
Water intlet
Water outlet
Installation of multi-module water system pipeline
1) Installation mode I (recommended installation mode)
n : the module quantity, max8
No.1 unit
No.0 address(main unit)
No.n unit (n≤8)No.(n-1) unit
No.(2n-3) address No.(2n-1) address
No.1 address No.(2n-4) address No.(2n-2) address
Pump
Drill dead hole at the
position, and move the
total effluent temperature
sensor at No.0 address to
the position
Water flow switch
Installation mode B: less than 8 modules
2) Installation mode II
n : the module quantity, max8
Water flow switch
Drill dead hole at the
position, and move the
total effluent temperature
sensor at No.0 address to
the position
No.1 unit
No.0 address(main unit)
No.n unit (n≤8) No.(n-1) unit
No.(2n-3) addressNo.(2n-1) address
No.1 addressNo.(2n-4) addressNo.(2n-2) address
Pump
Installation mode B: less than 8 modules
