12.2.7 Installation of water system pipeline for 185KW module

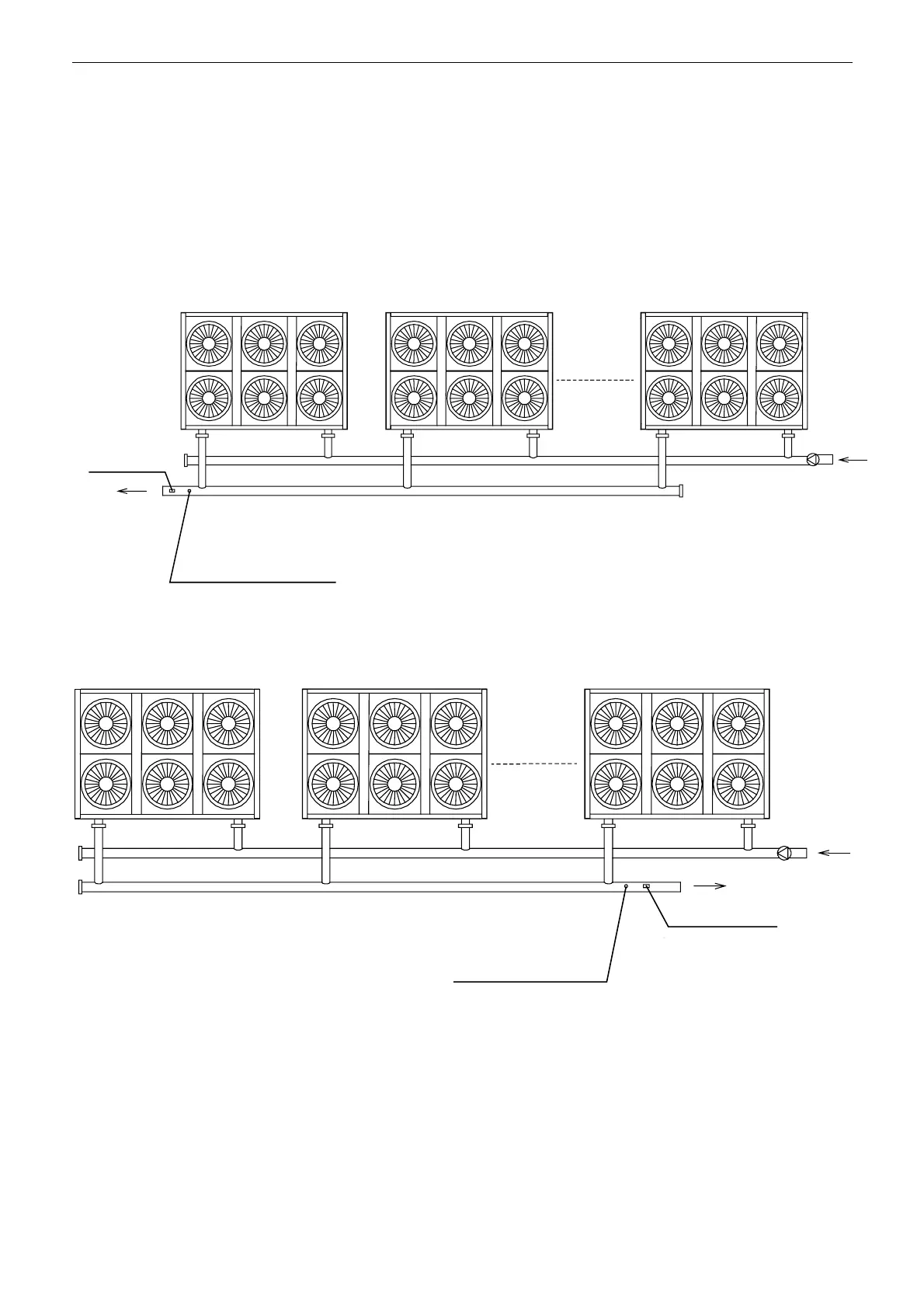

Multi-module combination installation involves special design of the unit, so relevant explanation is
given as follows.Installation mode of multi-module combination water system pipeline
n : the module quantity, max5
a. Installation mode I (recommended installation mode)
No.1 unit
No.0 address(main unit)
No.n unit (n≤5)No.(n-1) unit
No.(3n-4) address No.(3n-1) address
No.1 address No.(3n-5) address No.(3n-2) address
Pump
No.2 address No.(3n-6) address No.(3n-3) address
Drill dead hole at the
position, and move the
total effluent temperature
sensor at No.0 address to
the position
ater flow switch
b. Installation mode II
Water flow switch
Drill dead hole at the
position, and move the
total effluent temperature
sensor at No.0 address to
the position
No.1 unit
No.0 address(main unit)
No.n unit (n≤5) No.(n-1) unit
No.(3n-4) addressNo.(3n-1) address
No.1 addressNo.(3n-5) addressNo.(3n-2) address
No.2 addressNo.(3n-6) addressNo.(3n-3) address
Pump
12.2.8 Installation of water system pipeline for 250KW module
Multi-module combination installation involves special design of the unit, so relevant explanation is
given as follows. Installation mode of multi-module combination water system pipeline.
n : the module quantity, max8
less than 5 modules
(less than 5 modules)
