Midea MGB-D30W/RN1

MCAC-ATSM-2011-12 Air-cooled modular chiller unit 50Hz
79
No. Part Name Qty BOM code
No.
Part Name Qty BOM code
1
Right seal plate condenser
components D
1 201290190122 20

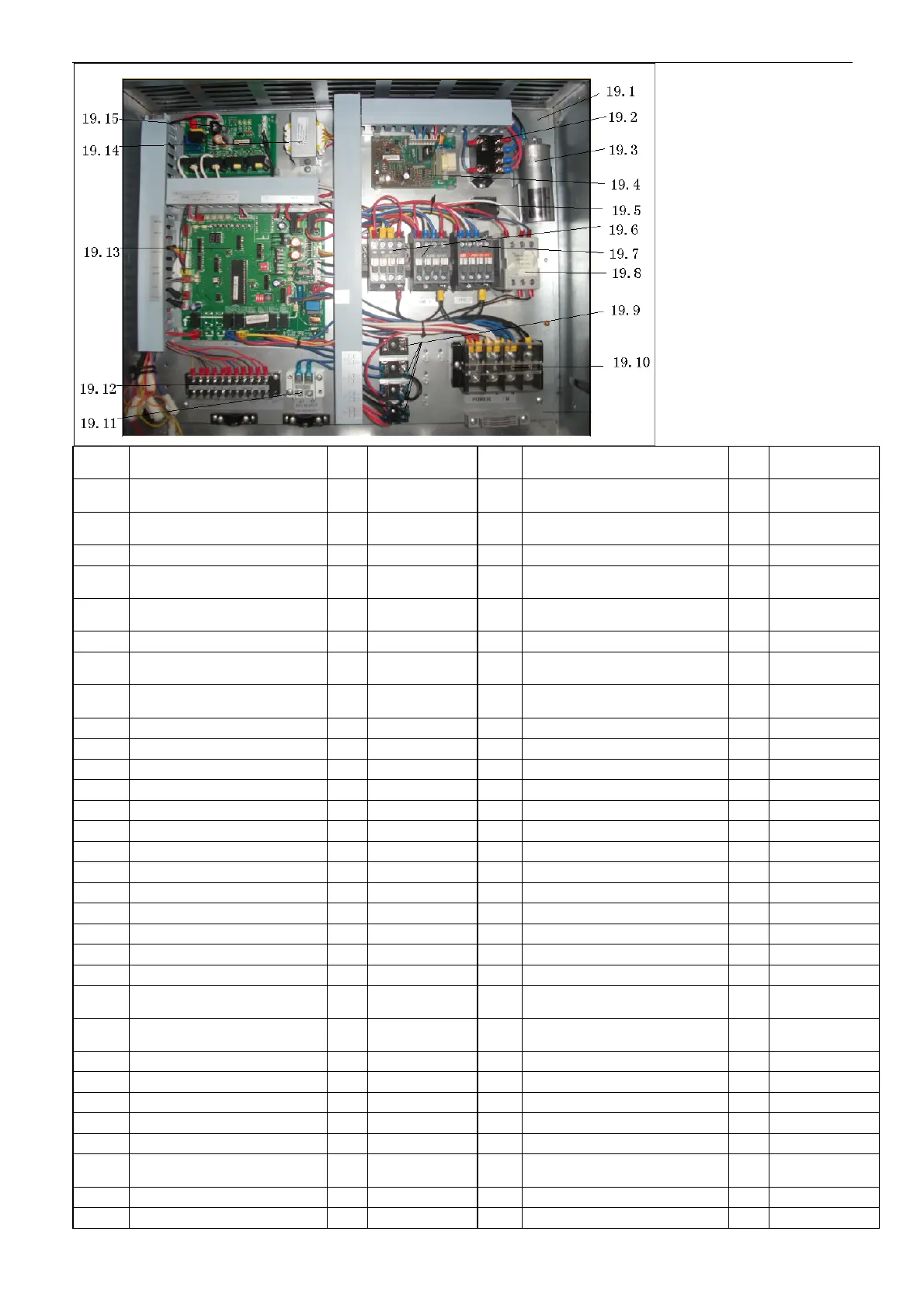

The door welding part of
electrical box
1 201290190224
2
A condenser components
1 201590190014 21
The welding part of small
baseplate
1 201290190233
3
Motor holder
2 201295010078 22
Base
1 201290190103
4
Cover
2 201295300100 23
Output pipe ass'y of A unit
double-pipe
1 201690191407
5
C components of the left seal
plate condenser
1 201290190124 23.1
Pressure controller
1 202301800835
6
Part B condenser
1 201590190012 24
Input pipe ass'y II of A unit
1 201690191414
7
A seal plate condenser
components of the right
1 201290190125 24.1
Strainer
1 201600900040
8
Supporting board
2 201290190204 25
Input pipe fixed base of double
pipe
1 201290190288
9
Cover board
2 201295300101 26
Input pipe ass'y of A unit
1 201690191416
10
Cover
1 201295300098 26.1
Electronic expansion valve
1 201601300018
11
Drainage pan holder
2 201275900027 26.2
Strainer
1 201600900040
12
Suction pipe ass'y A
1 201690191112 27
Input pipe ass'y II of B unit
1 201690191409
12.1
Pipe joint
1 201601200004 27.1
Strainer
1 201600900040
13
Accumulator cylinder
2 201601010504 28
Input pipe ass'y I of B unit
1 201690191411
14
Suction pipe ass'y B
1 201690191111 28.1
Electronic expansion valve
1 201601300018
14.1
Pipe joint
1 201601200004 28.2
Strainer
1 201600900040
15
Compressor
2 201401410020 29
Safety valve
1 201604100114
16
A unit four-way valve ass'y
1 201690191405 30
Double pipe heat exchanger
1 201700202000
16.1
4-way valve
1 201600600111 31
Replenishing pipe's fixed base
1 201290190210
16.2
4-Ways valve solenoid
1 201600600103 32
Water pump
1 202400600824
16.3
Muffler
1 201601000031 33
Installation beam of pump
2 201290190211
16.4
Strainer
1 201600900056 34
Welding support of hydraulic
module
1 201290190212
16.5
Pipe joint
3 201601200004 35
Connection part of hydraulic
module support
1 201290190209
16.6
Pressure controller
1 202301800835 36
Stainless steel corrugated pipe
1 201290190286
17
B unit 4-way valve ass'y
1 201690191151 37
Inlet pipe ass'y of pump
1 201690191422
17.1
4-way valve
1 201600600111 37.1
Y shape filter
1 201600900815
17.2
4-Ways valve solenoid
1 201600600103 37.2
Water charge valve
1 201601600104
17.3
Muffler
1 201601000031 38
Target flow-volume controller
1 202301820013
17.4
Strainer
1 201600900056 39
Outlet pipe welding ass'y of
pump
1 201690191418
17.5
Pipe joint
3 201601200004 40
Expansion vessel
1 201601300517
18
Base ass'y
1 201290190056 41
Welding parts water tray
1 201290190119
