5 Refrigeration system drawing

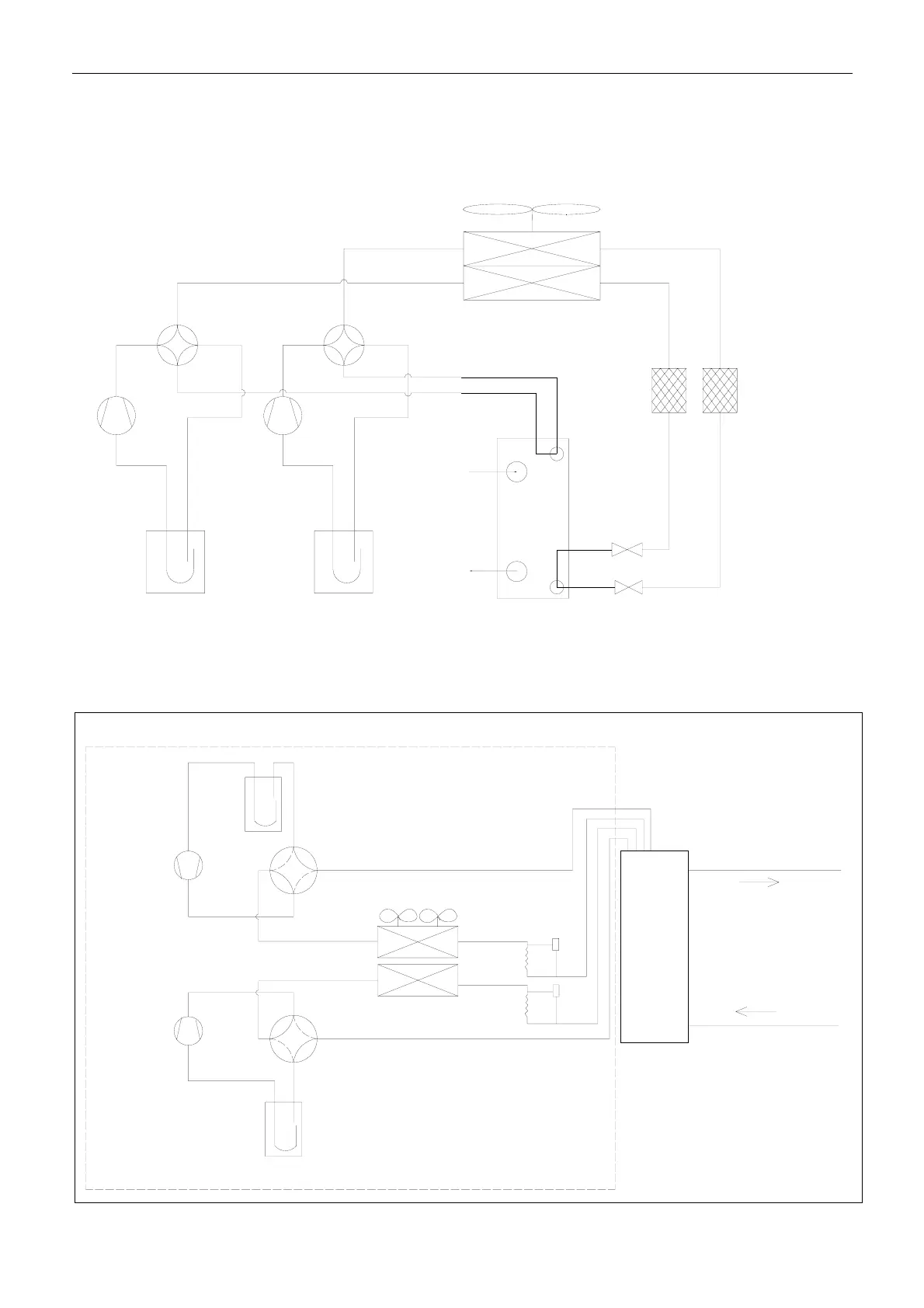

5.1 25/30KW module refrigeration system sketch drawing
Each module has two compressors with two separate units, one double-pipe evaporator for two systems.
Compressor A
Compressor B
Low pressure cylinder A
Low pressure cylinder B
4-way valve A
4-way valve B
Condenser
Evaporator
(Double-pipe heat exchanger)
Filter B
Fan
Filter A
throttle parts A
throttle parts B
Discharge pipe
Suction pipe
Water inlet
Water outlet
5.2 55/60/65KW module refrigeration system sketch drawing(Fixed speed)
Each module has two compressors with two separate units, one shell and tube evaporator for two systems.
Dry type evaporator
Condenser
Water flow direction
Compressor B
low pressure cylinder B
4-Way valve A
Fan A
EXV
Capillary
EXV
4"
Capillary
Fan B
4-Way valve B
Compressor A
low pressure cylinder A
