Midea MGB-D65W/RN1

MCAC-ATSM-2011-12 Air-cooled modular chiller unit 50Hz
35

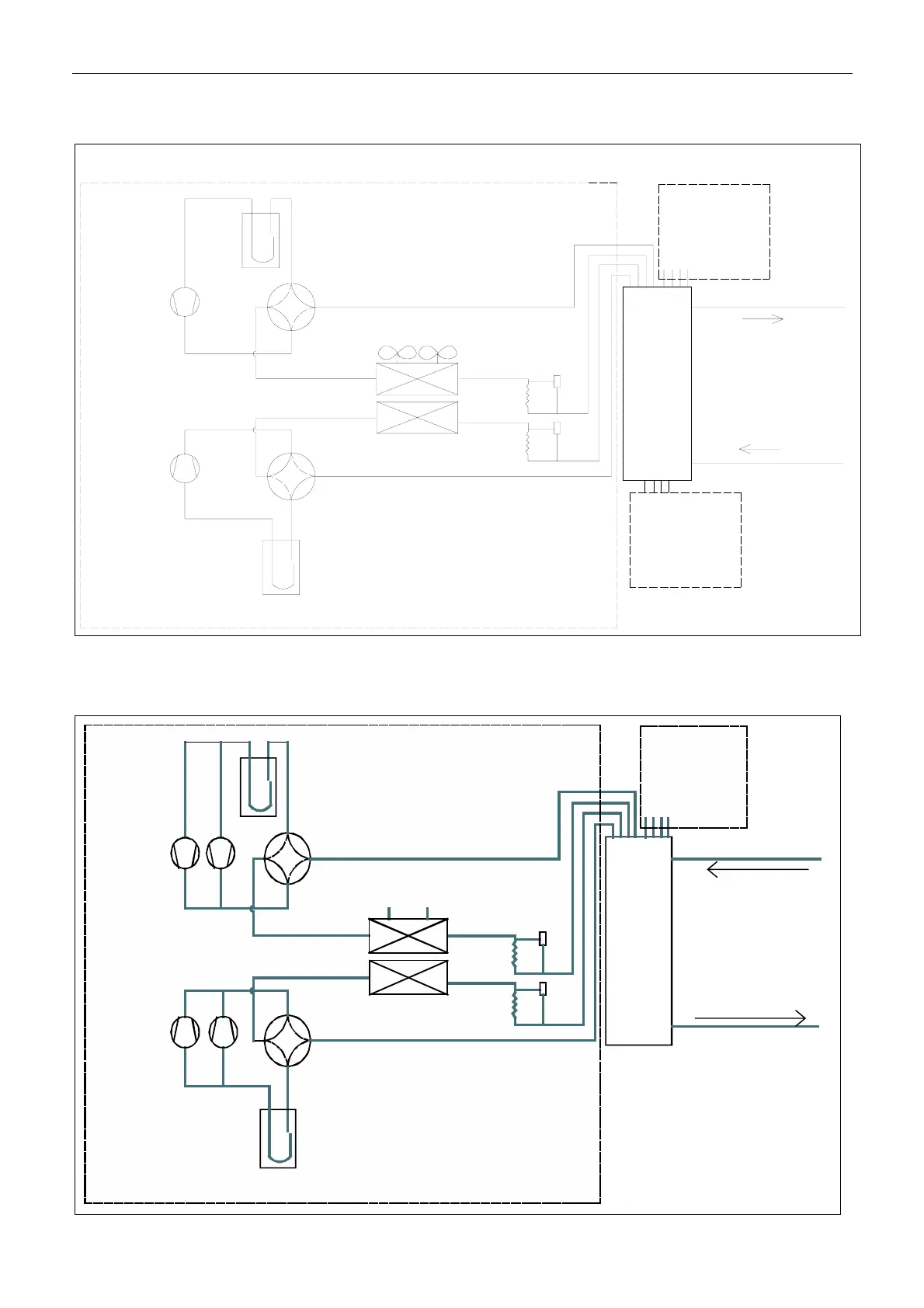

5.4 185KW module refrigeration system sketch drawing
Each module has six compressors with three separate units, one shell and tube evaporator for six systems.
Dry type evaporator
Condenser
Water flow direction
Compressor B
low pressure cylinder B
4-Way valve A
Fan A
EXV
Capillary
EXV
3"
Unit 2
Unit 3
Capillary
Fan B
4-Way valve B
Compressor A
low pressure cylinder A
Unit 1
5.5 250KW module refrigeration system sketch drawing
Each module has eight compressors with two separate units, one shell and tube evaporator for four systems
Dry type evaporator
Condenser
Water flow direction
Compressor B1
Compressor B2
low pressure cylinder B
4-Way valve A
Fan A
EXV
Capillary
EXV
4"
Unit 2
Capillary
Fan B
4-Way valve B
Compressor A1
Compressor A2
low pressure cylinder A
Unit 1
