Midea MGB-F60W/RN1 User Manual

Air-cooled modular chiller unit 50Hz MCAC-ATSM-2011-12
8

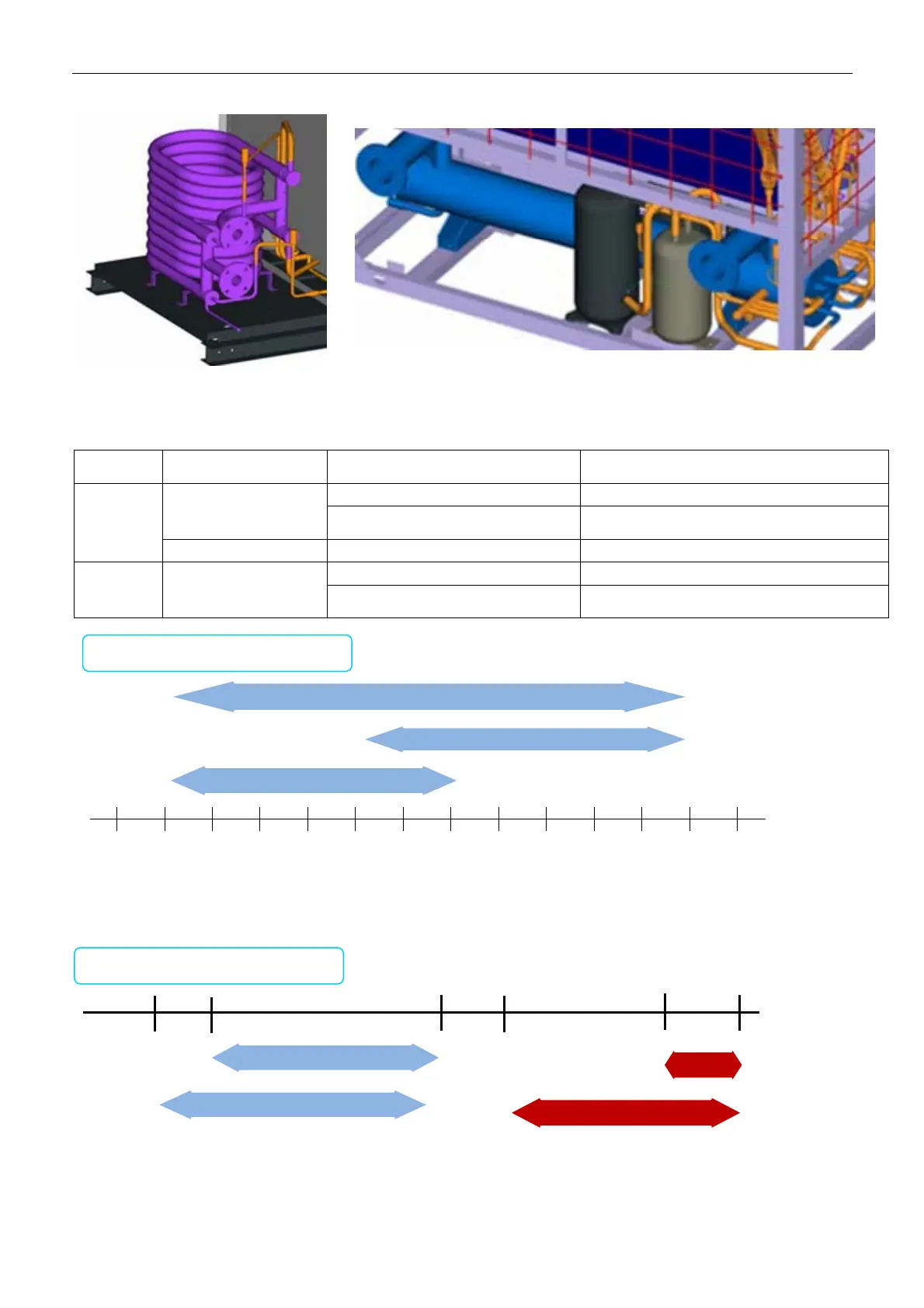

Evaporator of 25KW and 30KW module adopts tube in tube heat exchanger，evaporator of 60kw ,120kw and
180kw modules adopt Shell and tube heat exchanger.
Tube in tube heat exchanger Shell and tube heat exchanger
14). Applicable temperature range
Mode
Ambient temperature
range
Water outlet temperature range Application module
Cooling
10˚C ~46˚C
5˚C ~17˚C (7˚C is default) The module with KJR-08B/BE
0~17˚C(0˚C must add antifreeze)
For MGCSL-F(D)30W/RN1,MGBT-D65W/RN1,
MGBT-F250W/RN1
-10˚C ~46˚C 5˚C ~17˚C Only for MGCSL-F(D)30W/RN1
Heating -10˚C ~21˚C
45˚C ~50˚C (45˚C is default) The module with KJR-08B/BE
22˚C ~50˚C
For MGCSL-F(D)30W/RN1,MGBT-D65W/RN1,
MGBT-F250W/RN1
Chilled outlet water temperature can be adjusted by wire controller according to customer’s demand.
-15˚C
Ambient temperature range
-10˚C -5˚C 0˚C 5˚C 10˚C 15˚C
20˚C
25˚C
30˚C 35˚C 40˚C
45˚C
Coo
lin
g
r
a
n
ge
1
0
˚
C
4
6
˚
C
Heating range -10˚C 21˚C
Water outlet temperature range
5˚C
17˚C
50˚C
5˚C
17˚C
Heating range
Cooling range
45˚C
22˚C
0˚C
45˚C
50˚C
Cooling range
0˚C
17˚C
Heating range
22˚C
50˚C
Cooling range-10˚C
46˚C
