No. Part Name Qty BOM code No. Part Name Qty BOM code
1
The top beam
2 201290100258 35.3
Pipe joint
2 201601200004
2
The condenser seal fittings. II
2 201290100260 36
Fixed plate
4 201290100297
3
Iron nets fixed plate. II
2 201290100429 37
Pipe fixing clamp
6 201252600035
4
Protect net around
4 201290100433 38
Welding parts water tray
2 201290100431
5
pole
4 201290100427 39
Seal plate condenser
4 201290100428
6
Trough fixation plate
4 201290100266 40
A condenser components
2 201590100025
7
Left right panel by. II
1 201290100269 40.1
Condenser ass'y of A
1 201590100030
8
Iron nets fixed board I
2 201290100430 40.2
A flute-shaped tube assembly
machine
1 201690101436
9
Protect network and
4 201290100432 40.3
The condenser splitter
assemblies A
1 201690101393
10
In the frame beams
2 201290100255 41
A combination of pieces of
fixed plate condenser
2 201290108627
11 Cover 1 201290100242 42 Motor bracket bonding parts 8 201290100284
12

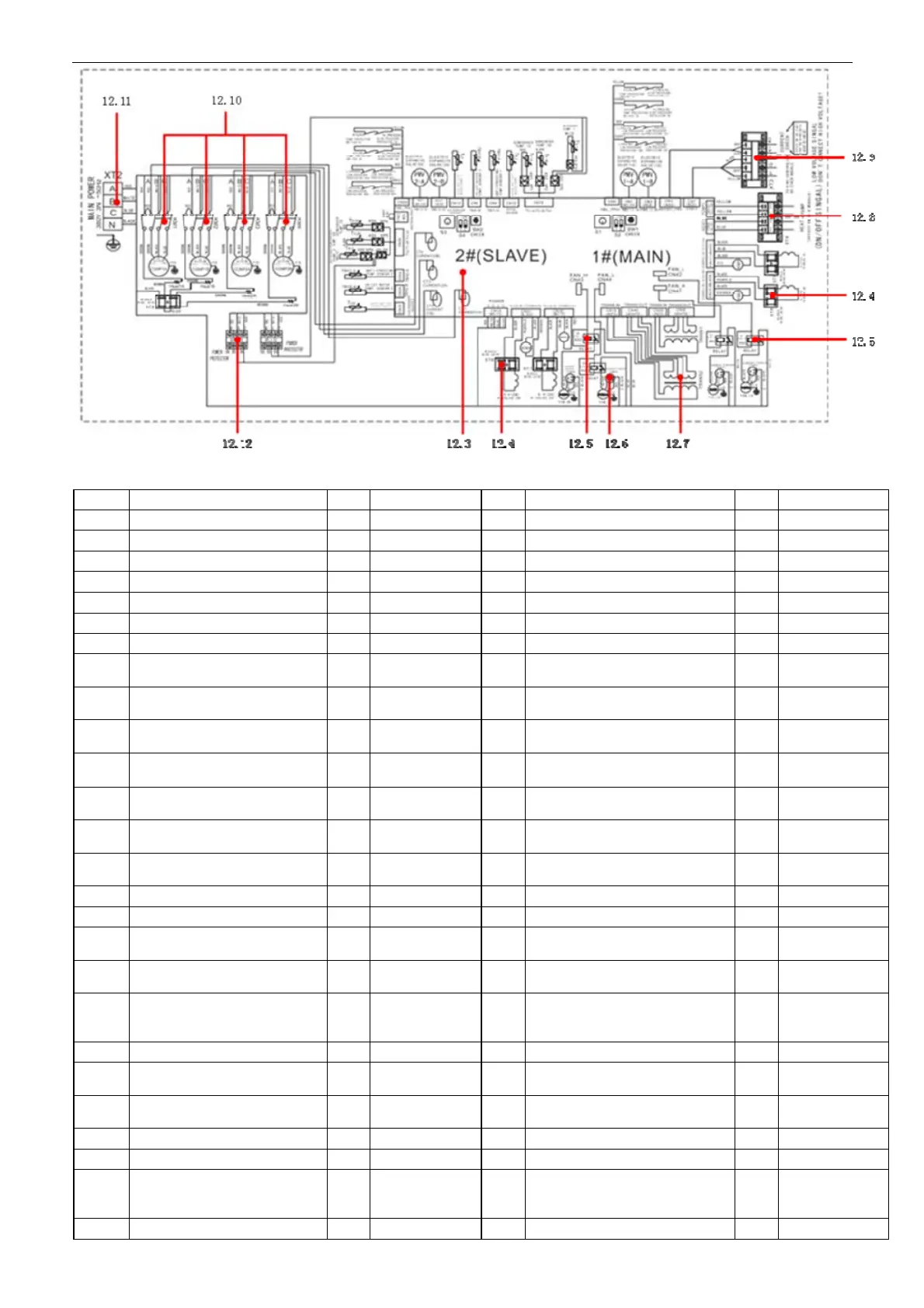

Air-cooled electronic control
box assembly module
1 203390190019 43 Motor 4 202400400399
12.3
Outdoor control board
assembly
1 201390100013 44 Axial flow fan 4 201200300013
12.4 Wire joint 5 202301450122 45
Fixed plate with the condenser
B
2 201290108629
12.5 Relay 4 202300800003 46
B condenser components
2 201590100026
12.6 Compressor capacitor 4 202401000410 46.1
Condenser ass'y of B
1 201590100031
12.7 Transformer 2 202300900109 46.2
B-flute-shaped tube
assemblies
1 201690101437
12.8 Wire joint 1 202301450130 46.3
The condenser splitter
assemblies B
1 201690101392
12.9 Wire joint, 5p 1 202301450037 47
A1 machine to take over the
evaporator component
four-way valve
1 201690191296
12.10 AC contactor 4 202300850050 47.1
Pressure controller
1 202301800842
12.11 Wire joint 1 202301450104 48
B2 four-way valve assembly
machine
1 201690191350
12.12
Three-phase power
protection devices
2 202301600518 48.1 4-way valve 1 201600600110
13
Control box door
1 201290100280 48.2
Pressure controller
1 202301800843
14
Cover
1 201290100241 48.3
Pipe joint
2 201601200004
15 Cover 1 201290100244 49
B2 machines take over the
four-way valve assembly
evaporator
1 201690191297
16
Cover
1 201290100243 49.1
Pressure controller
1 202301800842
