Midea MGB Series

MCAC-ATSM-2011-12 Air-cooled modular chiller unit 50Hz
97
No. Part Name Qty BOM code No. Part Name Qty BOM code
1
Triangular reinforcement
12 201290100387 56
Top cover
8 201195300051
2
Left panel II
1 201290100365 58
Front panel II
1 201290190282
3
Vertical beam in the frame
2 201290100386 59
Fixed part of panel
1 201290190281
4
Strengthened beams II
2 201290100370 60
Bottom pillar I
1 201290190245
5
I panel fasteners
10 201290100373 61
Pipe support IV
1 201290190274
6
I left panel
3 201290100369 62
Front panel I
1 201290190283
7
Inputting pipe ass'y of A unit
evaporator
1 201690191460 63 Pipe fixing clamp 20 201252600035
7.1
Electronic expansion valve
1 201601300021 64 Reinforcing board I 1 201290190244
7.2
Strainer
2 201600900078 65 Pipe support III 1 201290190261
8
Discharging pipe ass'y
8 201690191435 67 Pipe preforming 9 201286900040
9
Inputting pipe II of B unit
evaporator
1 201690191451 68 Pipe support VII 8 201290190273
10
Inputting pipe ass'y of B unit
evaporator
1 201690191429 69
Electrical box ass'y of air
modular
1 203390190031
10.1
Electronic expansion valve
1 201601300021 69.1 Installation board II ass'y 1 201290190265
10.2
Strainer
2 201600900078 69.2 Installation board I ass'y 1 201290190267
11
Column
4 201290100384 69.3 Electrical box welding parts 1 201290190269
12 Base welding parts 1 201290190241 69.4
Currrent detction board ass'y
of outdoor unit
2 201390100024
13 Base guard board 10 201290190257 69.5
Main board ass'y of outdoor
unit
2 201390190031
14
Inputting pipe ass'y of C unit
evaporator
1 201690191453 69.6 Relay 6 202300800003
14.1 Electronic expansion valve 1 201601300021 69.7 AC contactor 8 202300850046
14.2 Strainer 2 201600900078 69.8 AC contactor 8 202300850050
15 Guard board welding parts 4 201290190253 69.9 Transformer 2 202300900109
16 Four-way valve ass'y I 3 201690191473 69.10 A Terminal Block 1 202301400253
17
Outlet pipe ass'y I of
condenser
3 201690191447 69.11 Wire joint,11p 1 202301400365
18
Inputting pipe ass'y of D unit
evaporator
1 201690191457 69.12 Wire joint, 1P 3 202301400419
18.1 Electronic expansion valve 1 201601300021 69.13
Wire joint,4p
1 202301450003
18.2 Strainer 2 201600900078 69.14
Wire joint
7 202301450122
19 Four-way valve ass'y II 1 201690191465 70
Reinforcing board II
3 201290190242
20 Pipe support VI 1 201290190258 71
Three-phase asynchronous
motor
6 202400800834
21 Cover of wire casing III 1 201290190285 72
Back support board of
electric box
1 201290190272
22
Wire casing III
1 201290190260 73
Pipe support V
3 201290190259

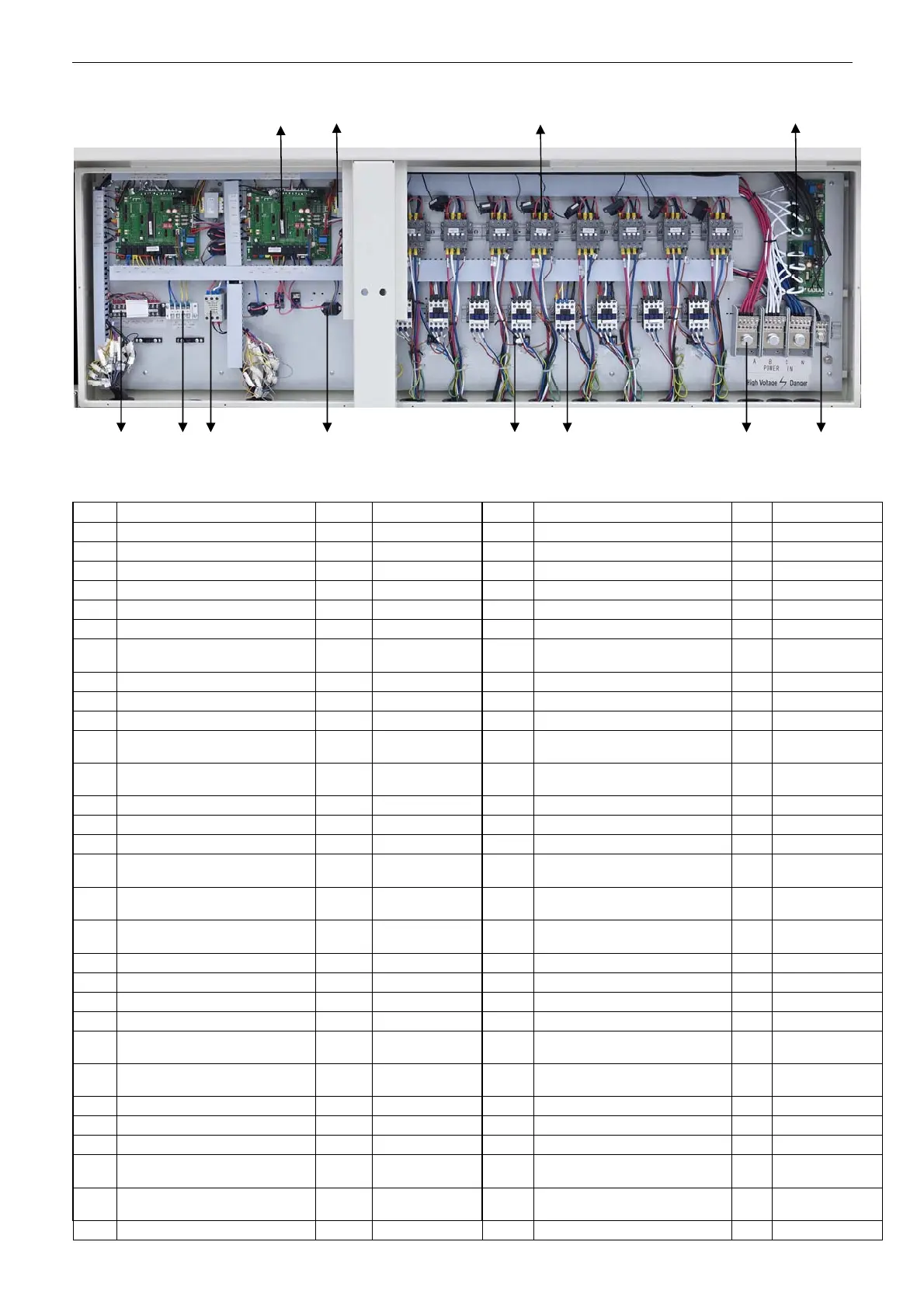

69.5 69.9 69.8 69.4
69.10 69.1 69.7
69.14
69.6
69.15
69.1 69.1
