MCAC-TSM-2008-02 Installation of Outdoor Unit
Installation 67

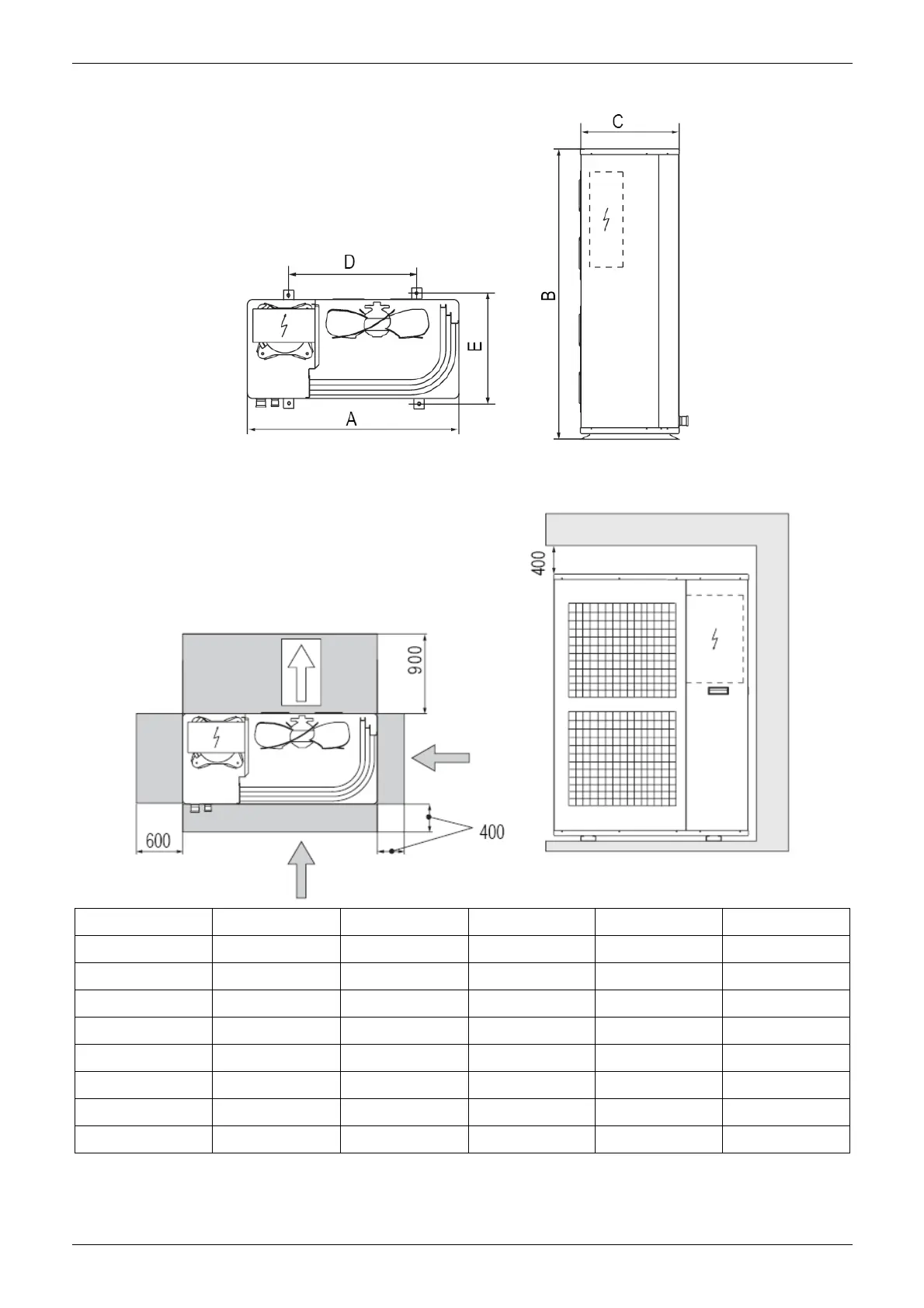

3.3 Service space
Dimension A B C D E
MGC-F05W/N1 990 966 354 624 366
MGC-F07W/N1 990 966 354 624 366
MGC-F09W/N1 940 1245 360 600 376
MGC-F10W/N1 940 1245 360 600 376
MGC-F10W/SN1 940 1245 360 600 376
MGC-F12W/SN1 1070 1249 420 698 430
MGC-F14W/SN1 1070 1249 420 698 430
MGC-F16W/SN1 1070 1249 420 698 430
