R410A 380~415V 3Ph 50Hz TempMaker Series Split AC MCAC-UTSM-2014-03
69

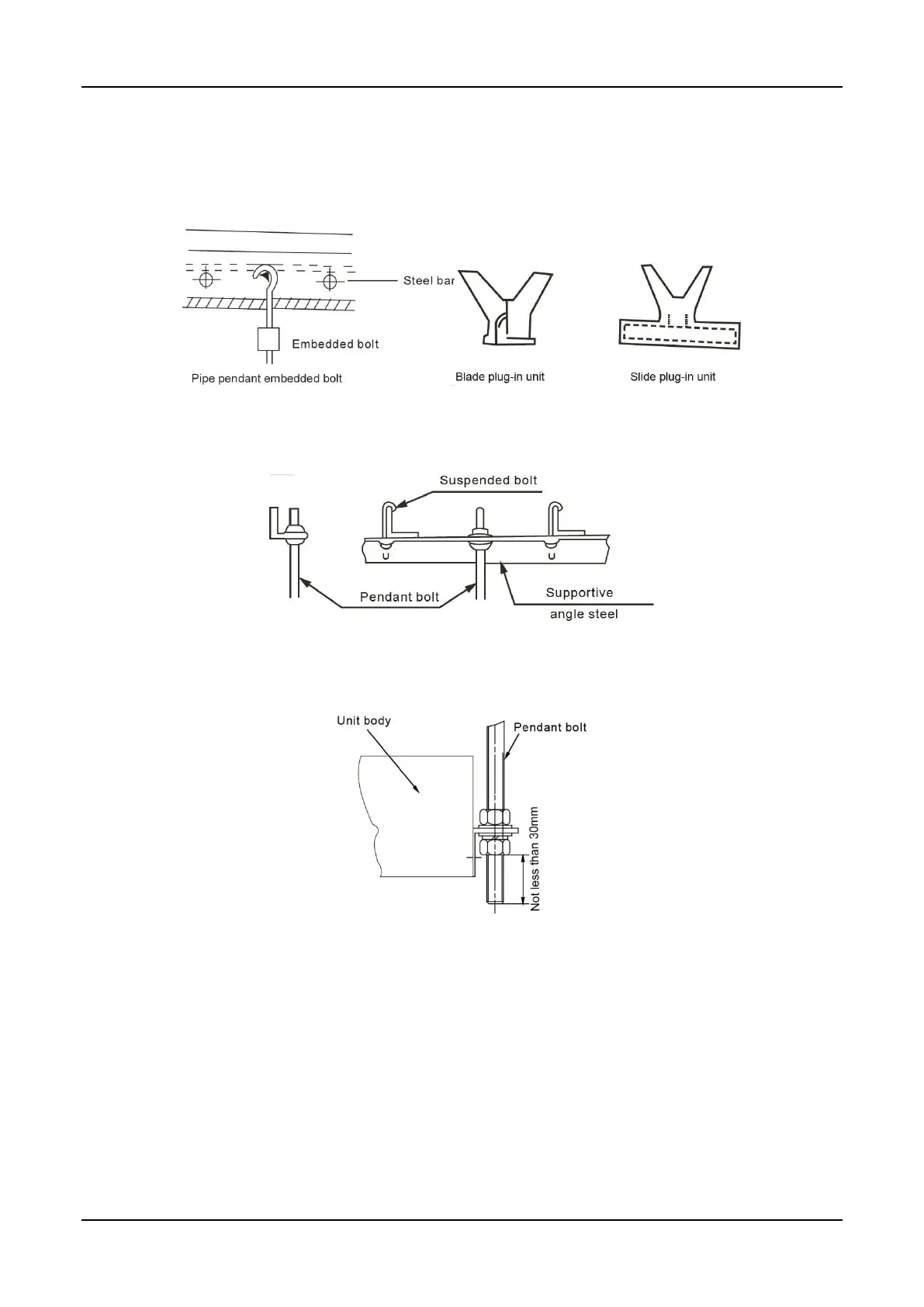

When in the new concrete roughcast environment, please use embedded bolts, embedded
pulling plugs and stick harness. On steel bar have some holes to hang pipe and embed
screw bolts.
.
When in steel beam and girder structure, set and use supportive angle steel.
After install the indoor units, use a hoisting device to hoist the indoor unit, and align it with
the installation screws to adjust the horizontality. Finally, Tighten the screws.
2.2 Designing and connecting the duct
The duct accessories and materials must be produced by professional manufacturers.
The duct design must comply with the national heating air conditioner pipeline design
specifications.
Int order to prevent air flow shoting, do not set the air inlet orifice near the air outlet orifice.
Install a filter at an easy-to-maintain place such as intake pipe. If without the filter, the duct
