24
1
4567
3
8
9
10
11
2
1-phase 5/7/9kW
1 To main board (CN101,CN105)
2 Compressor connection port U V W (U,V,W)
3 Input port N for IPM module(N)
4 Input port P for IPM module(P)
5 Input port for PFC inductance P1(P1)
6 Input port for bridge Rectifiers(P5)
7 Input port for Bridge Rectifiers(P6)
8 Output port P of PFC(P2)
9 Input port for PFC inductance 3(P3)
10 Output port N of PFC(P4)
11 +18V(P9)

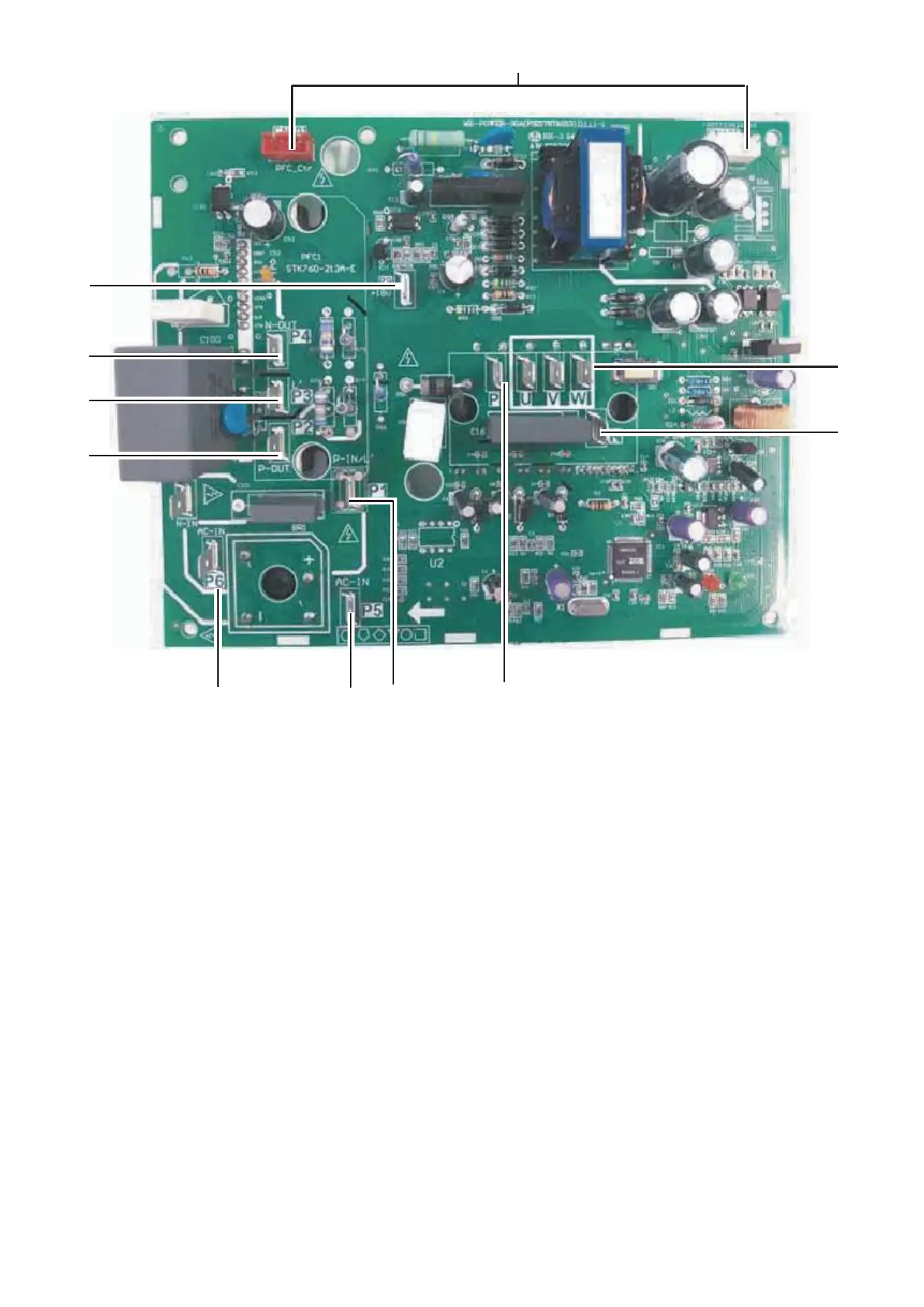

PCB A, Inverter board for 1 phase 5/7/9 kW unit.
