INSTALLATION REQUIREMENTS
F

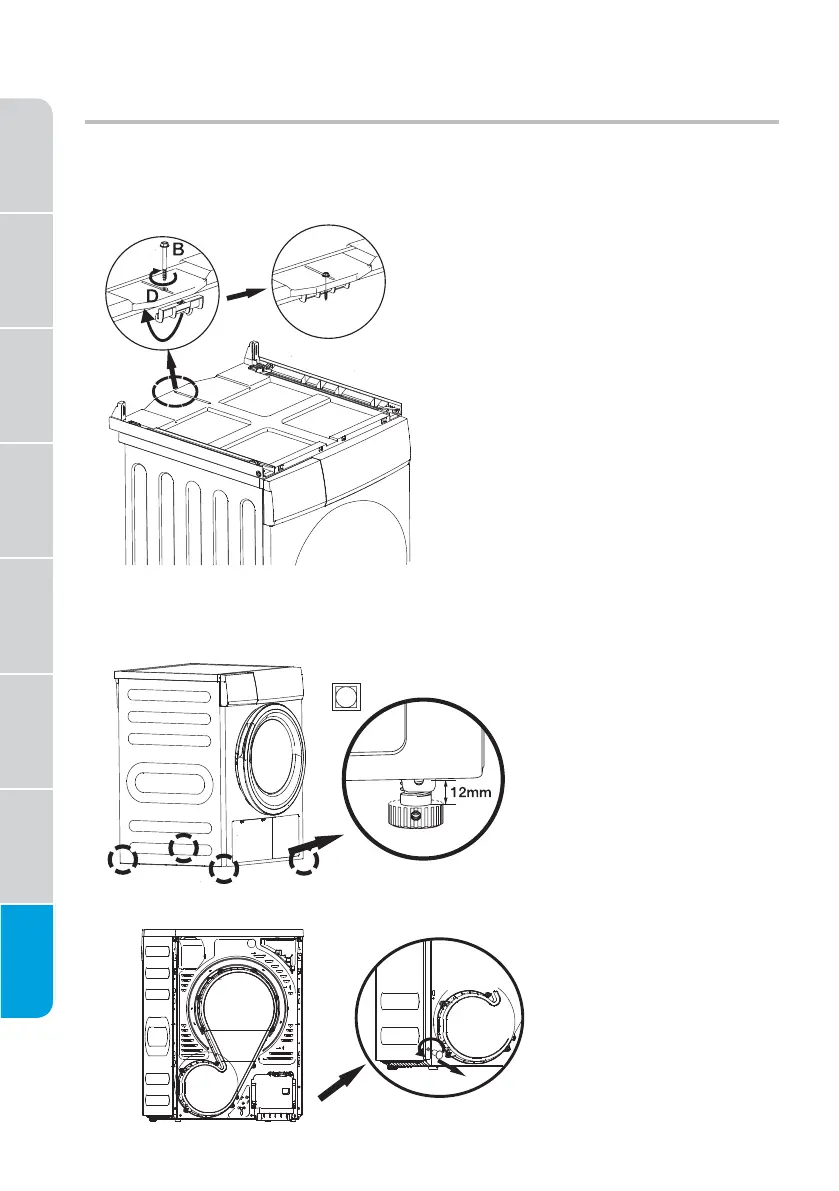

Step 5:
Install top panel fixing block (F). Fix the jack catch of the block on the top panel of
Washing Machine. Align the mounting hole of the block with the mounting hole of the
stacking kit, and fix the block with the M6 Screw (B) and Gasket (D).
Step 6:
Adjust all four leveling feet of the clothes dryer to allow a 12mm gap.
At the rear of the dryer, remove the 2 screws located towards the base of the dryer.
