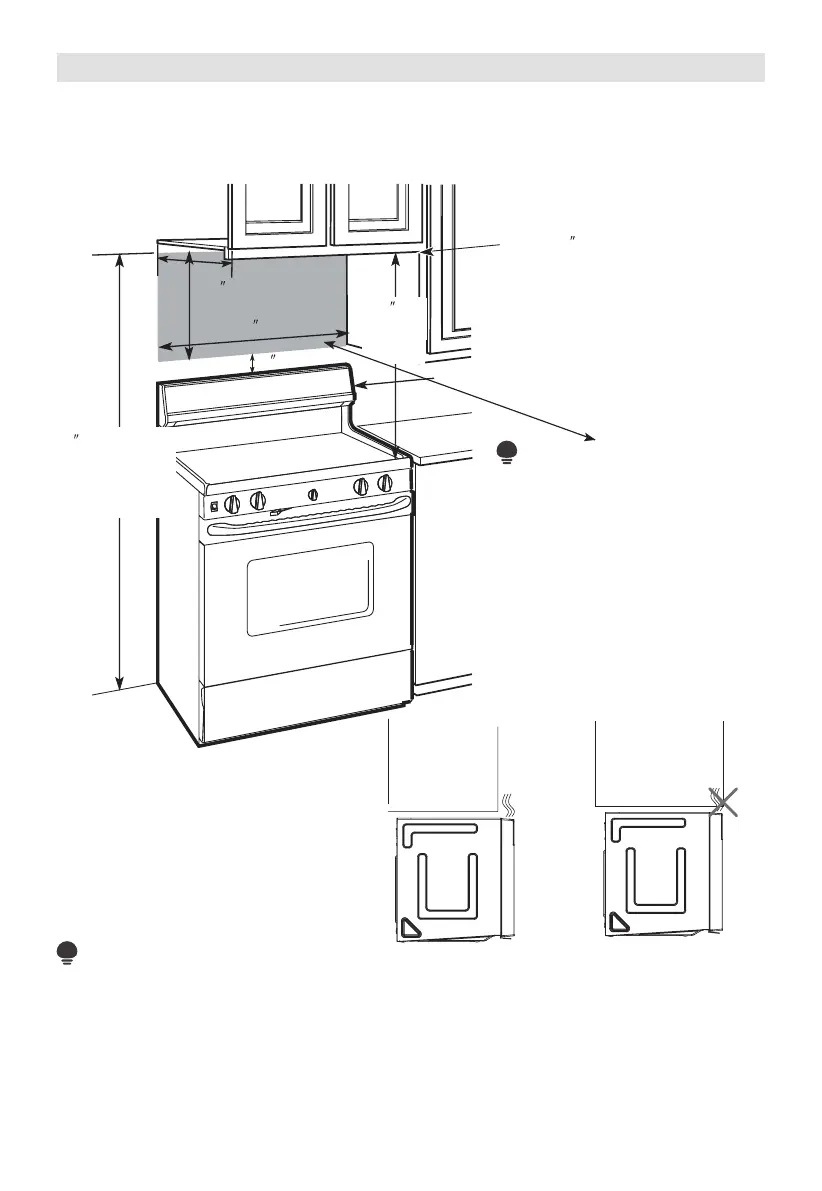

Mounting Space
MOUNTING SPACE
Bottom
Edge of
Cabinet
Needs
to
be 3 0 (76.2 cm)
or More from the
Cooking Surface
Backsplash
66 (167.6 cm)
or More from
the Floor to the
Top of the
Microwave
30 (76.2 cm)
2
(5.1cm)
30
min.
(76.2 cm)
16
1
⁄2
(41.9 cm)
13 Maximum (33 cm)
NOTE:
• The space between the cabinets must be 30" (76.2 cm)wide and free of obstructions.
• If you are going to vent your microwave oven to the outside, see Hood Exhaust
Section for exhaust duct preparation.
• When installing the microwave oven beneath smooth, flat cabinets, be careful to
follow the instructions on the top cabinet template for power cord clearance.
• As a guide to installation, see page 25 for Mounting Template Information.
• If the cabinet depth including
the cabinet doors is more than
13" then the unit must be
spaced out from wall using
adequate materials supporting
150 Ibs to allow proper top
vent air exhaust/intake.
“
