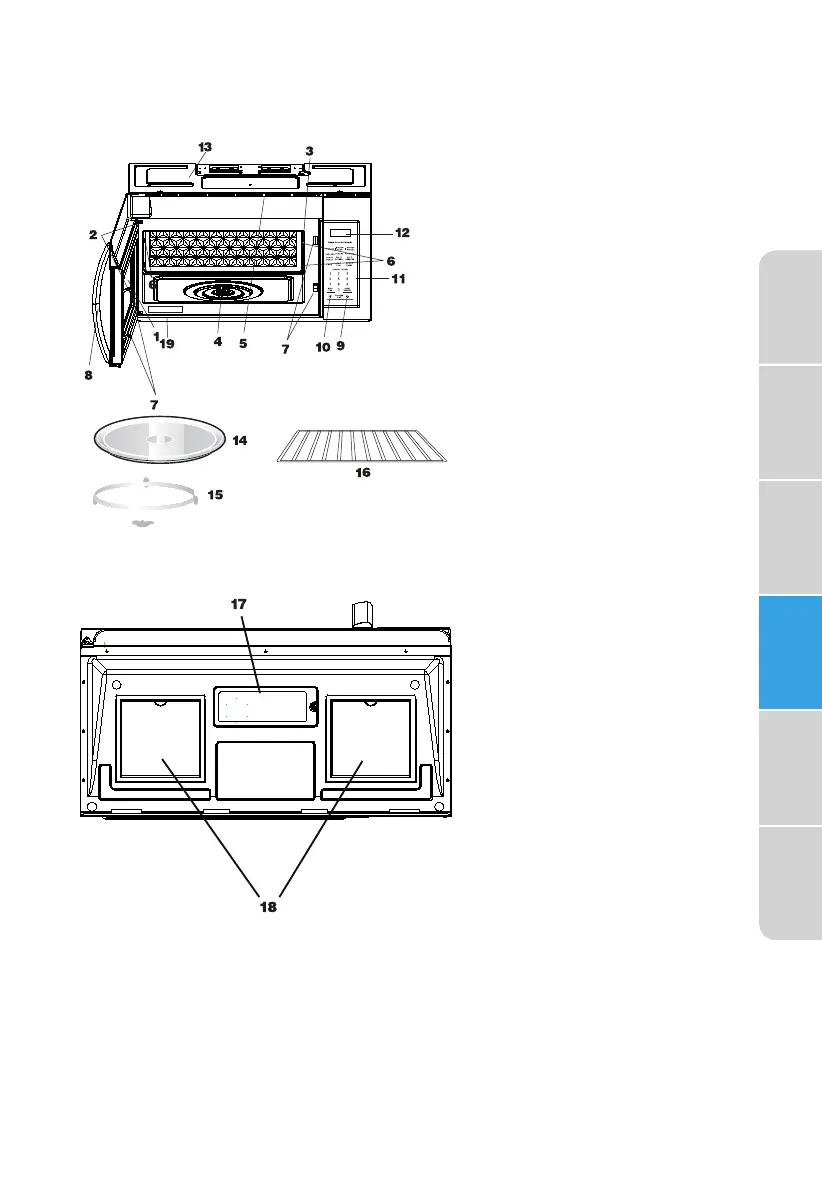

PART NAMES
FRONT VIEW
BOTTOM VIEW
1. Microwave oven door with see-
through window
2. Door hinges
3. Waveguide cover:
DO NOT REMOVE.
4. Turntable motor shaft
5. Microwave oven light
It will light when microwave oven is
operating or door is open.
6. Rack holders
7. Safety door latches
The microwave oven will not
operate unless the door is securely
closed.
8. Handle
9. Light hi/lo/o pad
Press the light hi/lo/off pad once
for high, twice for low and three
times to turn o the light.
10. Vent hi/lo/o pad
Press the vent hi/lo/off pad once
for high speed, twice for low speed
and three times to turn o the fun.
11. Auto-Touch control panel
12. Time display: Digital display, 99
minutes, 99 seconds
13. Ventilation openings
14. Removable turntable
The turntable will rotate clockwise
or counterclockwise. Only remove
for cleaning.
15. Removable turntable support
First, carefully place the turntable
support in the motor shaft in the
center of the microwave oven floor.
Place the support ring on the
microwave oven floor. Then, place
the turntable on the turntable
support securely.
16. Rack for 2-level cooking/ reheating
17. Light cover
18. Grease filters
19. Menu label
