3.2 Outdoor Unit

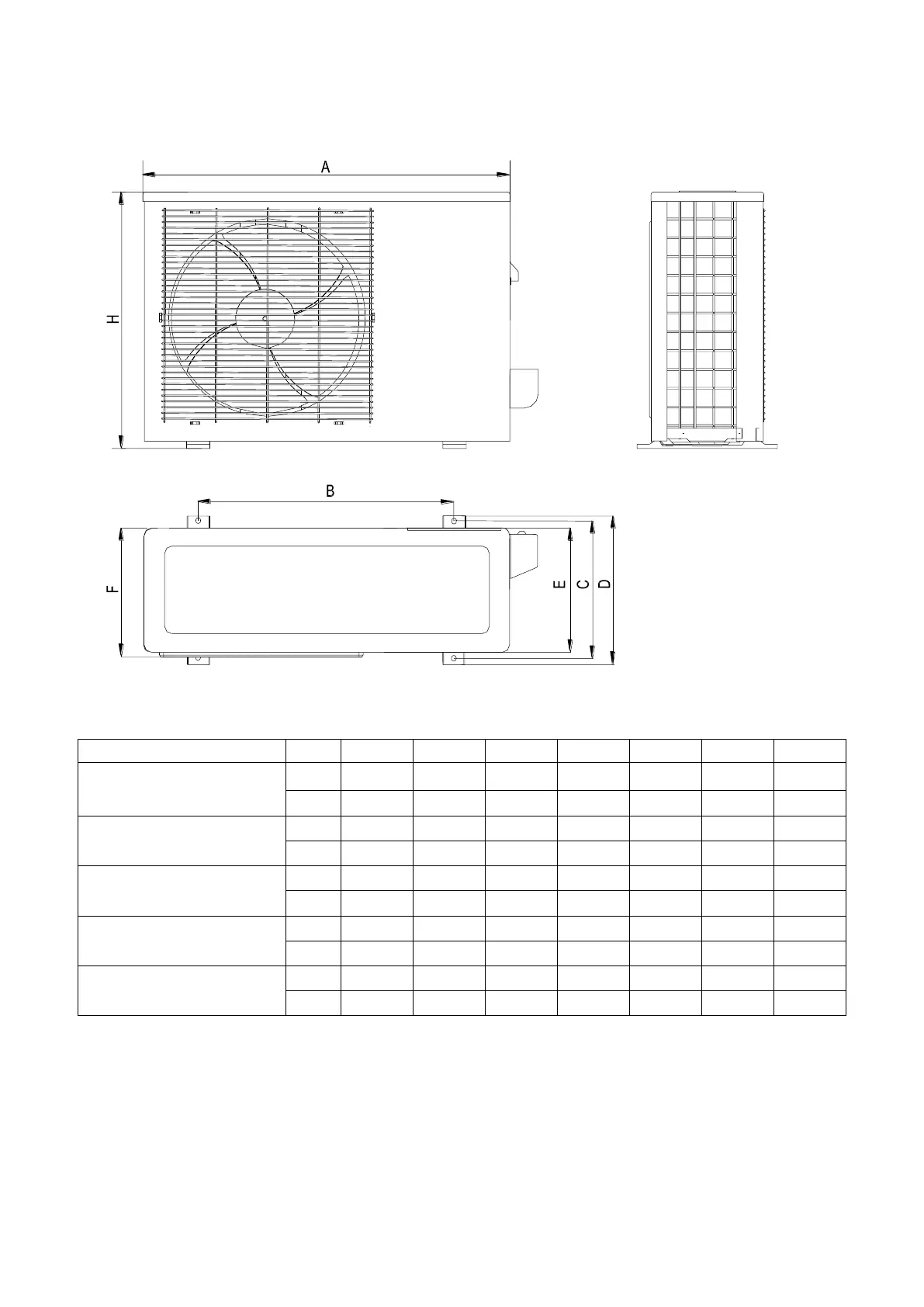

Note: The above drawing is only for reference. The appearance of your units may be different.
Model
A
B
C
D
E
F
H
MOZ-12HFN1-MU5W
mm
810
549
325
350
305
310
558
inch
31.89
21.61
12.8
13.78
12.01
12.2
21.97
MOF-18HFN1-MT0W
MOF-17HFN1-MT0W
mm
845
560
335
360
312
73
700
inch
33.27
22.05
13.19
14.17
12.28
2.87
27.56
MOY-23HFN1-MT0W
mm
945
640
405
448
385
85
810
inch
37.20
25.20
15.94
17.64
15.16
3.35
31.89
MOU-36HFN1-M(C)
mm
945
640
405
448
385
85
810
inch
37.20
25.20
15.94
17.64
15.16
3.35
31.89
MOU-48HFN1-M(C)
mm
938
634
404
448
370
85
1369
inch
36.93
24.96
15.91
17.64
14.57
3.35
53.90
