Midea MOU-36HFN1-M - Page 92

89

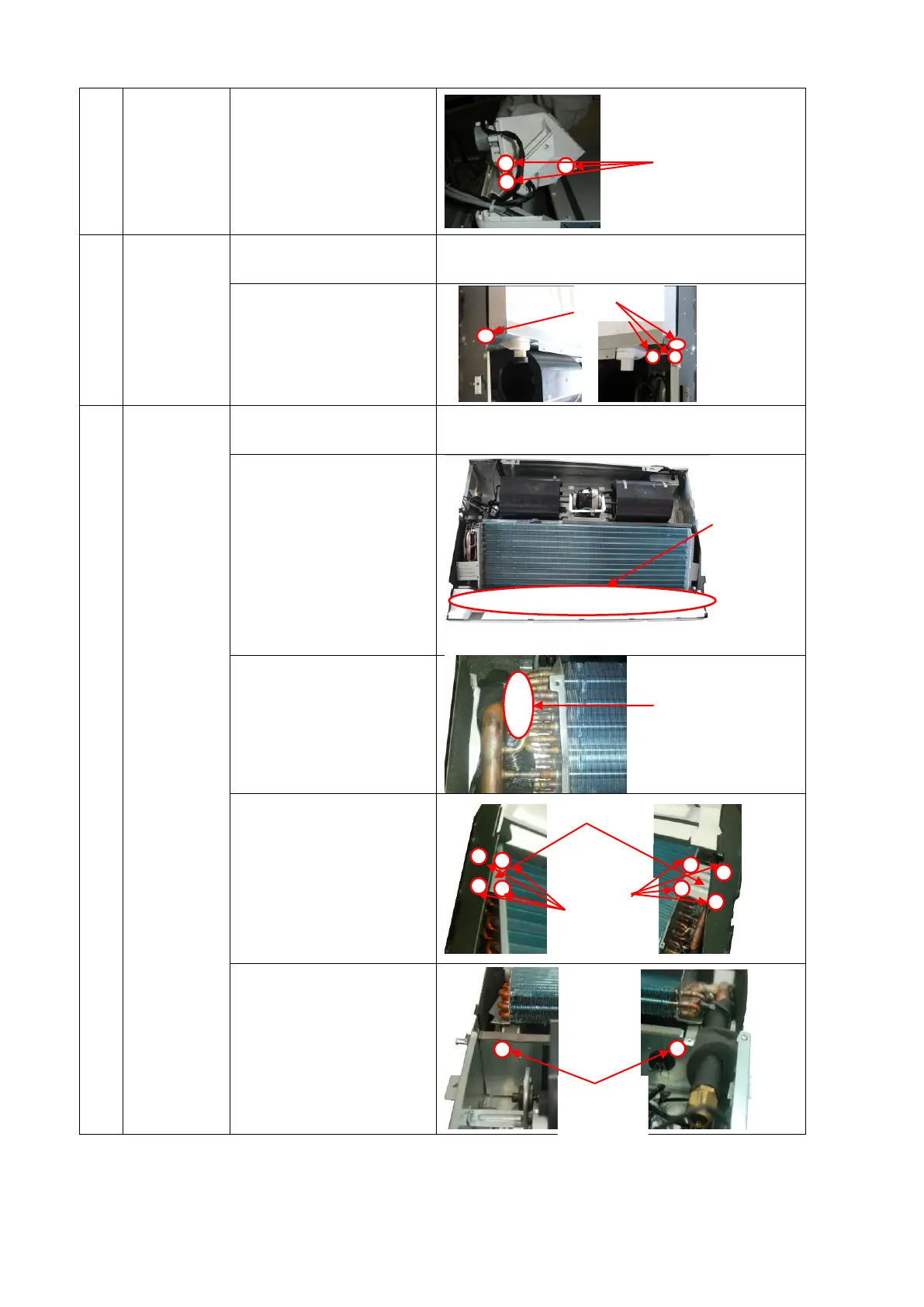

motor
2) Screw off the screws
to remove the motor
11
Remove
the water
collector
1) Remove the front
panel assembly
Repeat the operation of No.6 to remove the front panel
assembly
2) Screw off the fixing
screws to
disassemble the
water collector
12
Remove
the
evaporator
assembly
1) Remove the water
collector
Repeat the operation of No.11 to remove water collector
2) Remove the fixing
foam of evaporator
It’s has no fixing part to fasten the foam, just pull to
remove it.
3) Remove the
evaporator sensor
4) Remove the fixing
boards of
evaporator
5) Remove the fixing
screws to
disassemble the
evaporator
assembly
3 screws
4 screws
Each side
has one
screw
Fixing
foam
Evaporator
sensor
Fixing board
Each fixing
board has 4
screws
