MCAC-UTSM-2008-11 Exploded View
Indoor Units 17

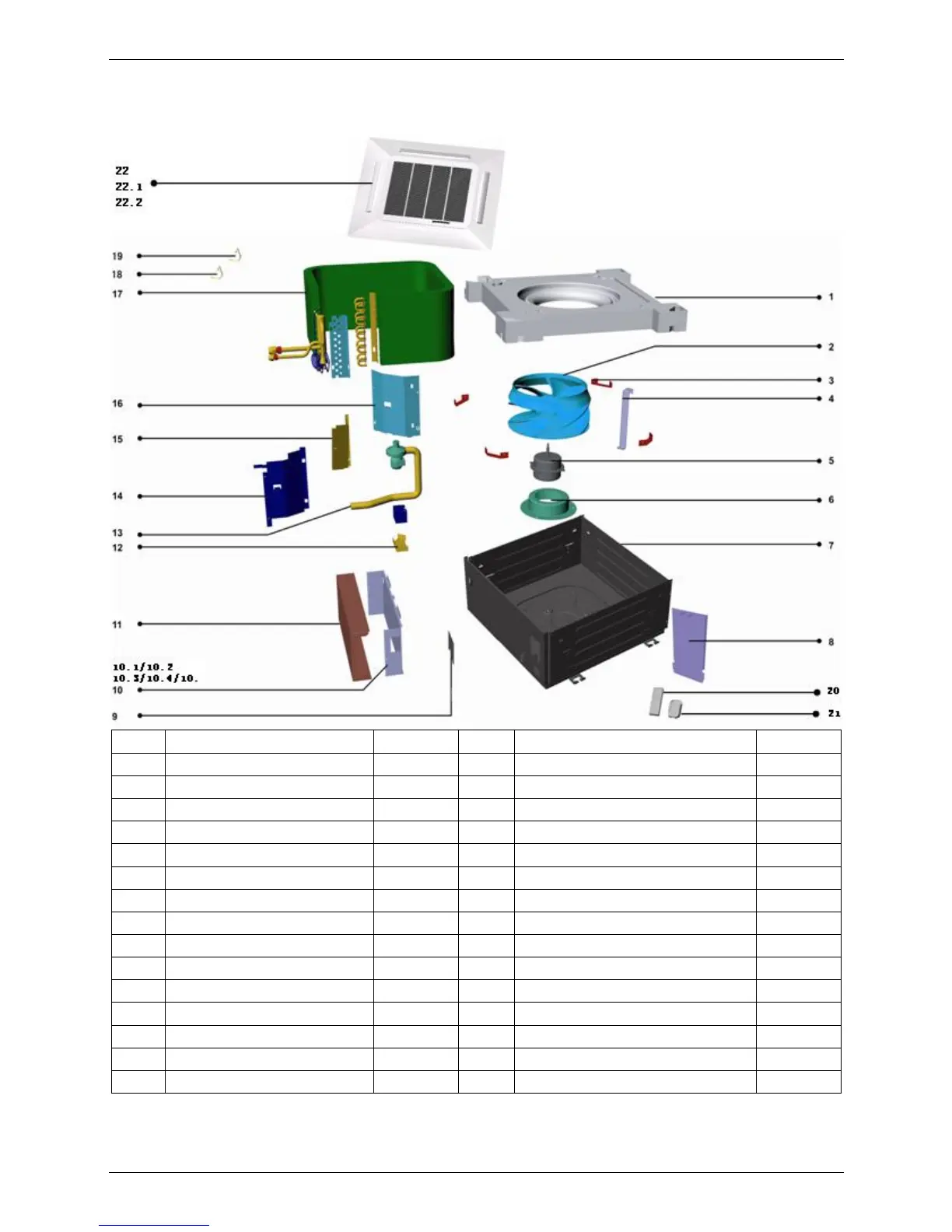

10. Exploded View
MCA-12HRN1 MCA-18HRN1
No. Part Name Quantity No. Part Name Quantity
1 Drainage pan ass'y 1 11 E-Part box cover 1
2 Centrifugal fan 1 12 Drain pump Holder 1
3 Installation bracket 4 13 Drain pump 1
4 Evaporator fixing hanger 1 14 Right clapboard ass'y 1
5 Motor 1 15 Partition board 1
6 Motor base 1 16 Evaporator fixing board ass'y 1
7 Base ass'y 1 17 Evaporator ass'y 1
8 Board 1 18 Evaporator temp. sensor ass'y 1
9 Sealed board ass'y 1 19 Room temp. sensor ass'y 1
10 E-part box ass'y 1 20 Remote controller 1
10.1 Main controller ass'y 1 21 Remote controller holder 1
10.2 Motor capacitor 1 22 Panel ass'y 1
10.3 Wire joint, 7p 1 22.1 Swing motor 1
10.4 Wire joint 1 22.2 Display board 1
10.5 Transformer 1
