10

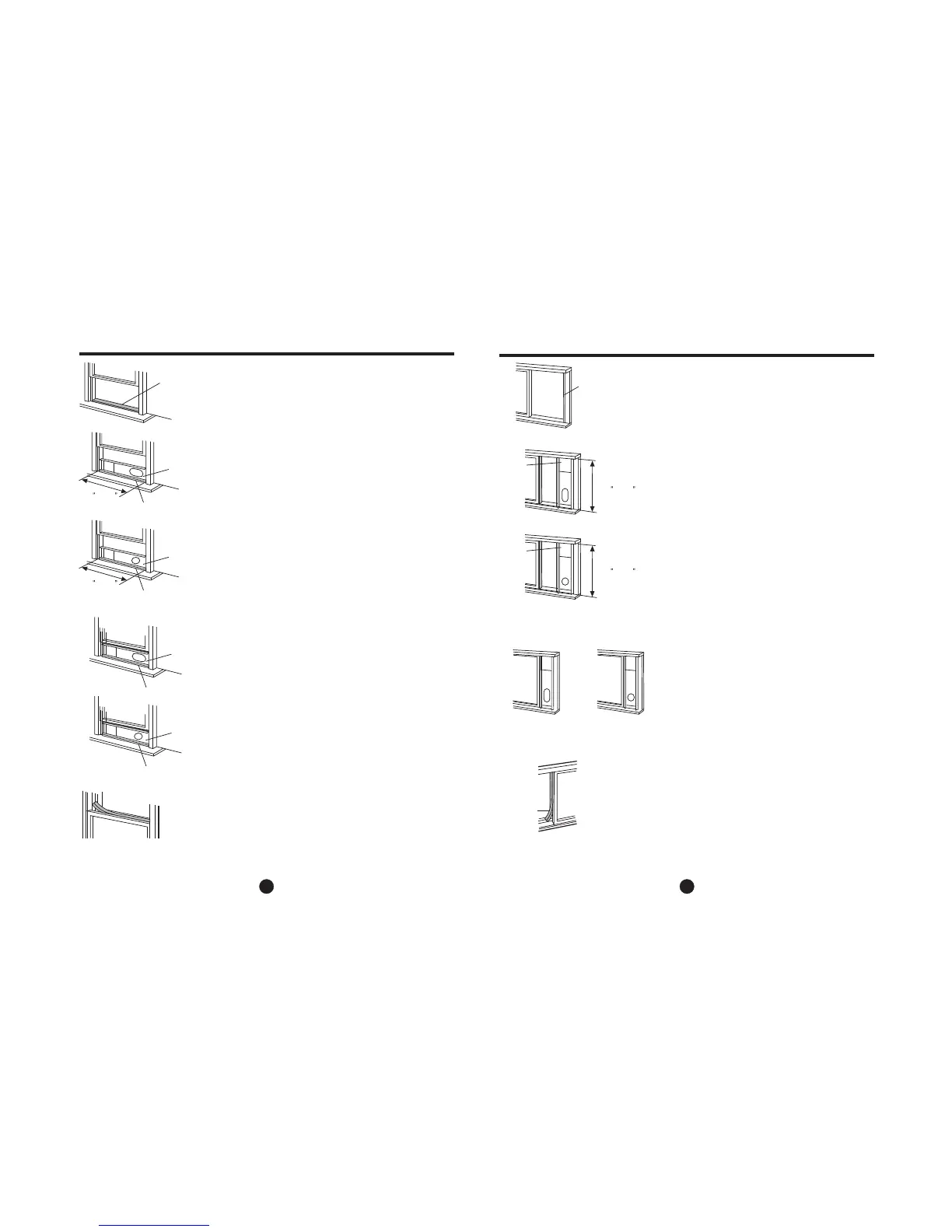

INSTALLATION INSTRUCTIONS (optional)
Installation in a double-hung sash
window
1. Cut the foam seal(adhesive type) to the proper
length and attach it to the window stool. Fig.8
2. Attach the window slider kit to the window stool.
Adjust the length of the window slider kit according
to the width of window, shorten the adjustable window
kit if the width of window is less than 26.5 inches. Open
the window sash and place the window slider kit on the
window stool. See Fig.9.
3. Cut the foam seal(adhesive type) to the proper
length and attach it on the top of the window. Shown
as in Fig.10.
4. Close the window sash securely against the
window.
5. Cut the foam seal to an appropriate length and
seal the open gap between the top window sash
and outer window sash. Shown as in Fig.11.
Foam seal A
(adhesive type)
Window kit
Window stool
Foam seal
Fig.8
Fig.9
Fig.10
Fig.11
Window kit
Window stool
Window kit
Window stool
or
Window kit
Window stool
or
11
INSTALLATION INSTRUCTIONS (optional)
Installation in a sliding sash
window
1. Cut the foam seal(adhesive type) to the proper
length and attach it to the window frame,Fig.12.
2. Attach the window slider kit to the window stool.
Adjust the length of the window slider kit according
to the width of window, shorten the adjustable window
kit if the width of window is less than 26.5 inches. Open
the window sash and place the window slider kit on
the window stool. See Fig.13.
3. Cut the foam seal(adhesive type) to the proper
length and attach it on the top of the window.
Shown as in Fig.14.
4. Close the sliding sash securely against the window.
5. Cut the foam seal to an appropriate length and
seal the open gap between the top window sash
and outer window sash. Shown as in Fig.15.
Foam seal
Foam seal A
(adhesive type)
Window
panel
Fig.12
Fig.13
Fig.14
Fig.15
Window
panel
or
or
26.5 ~ 48.0
26.5 ~ 48.0
26.5 ~ 48.0
26.5 ~ 48.0
