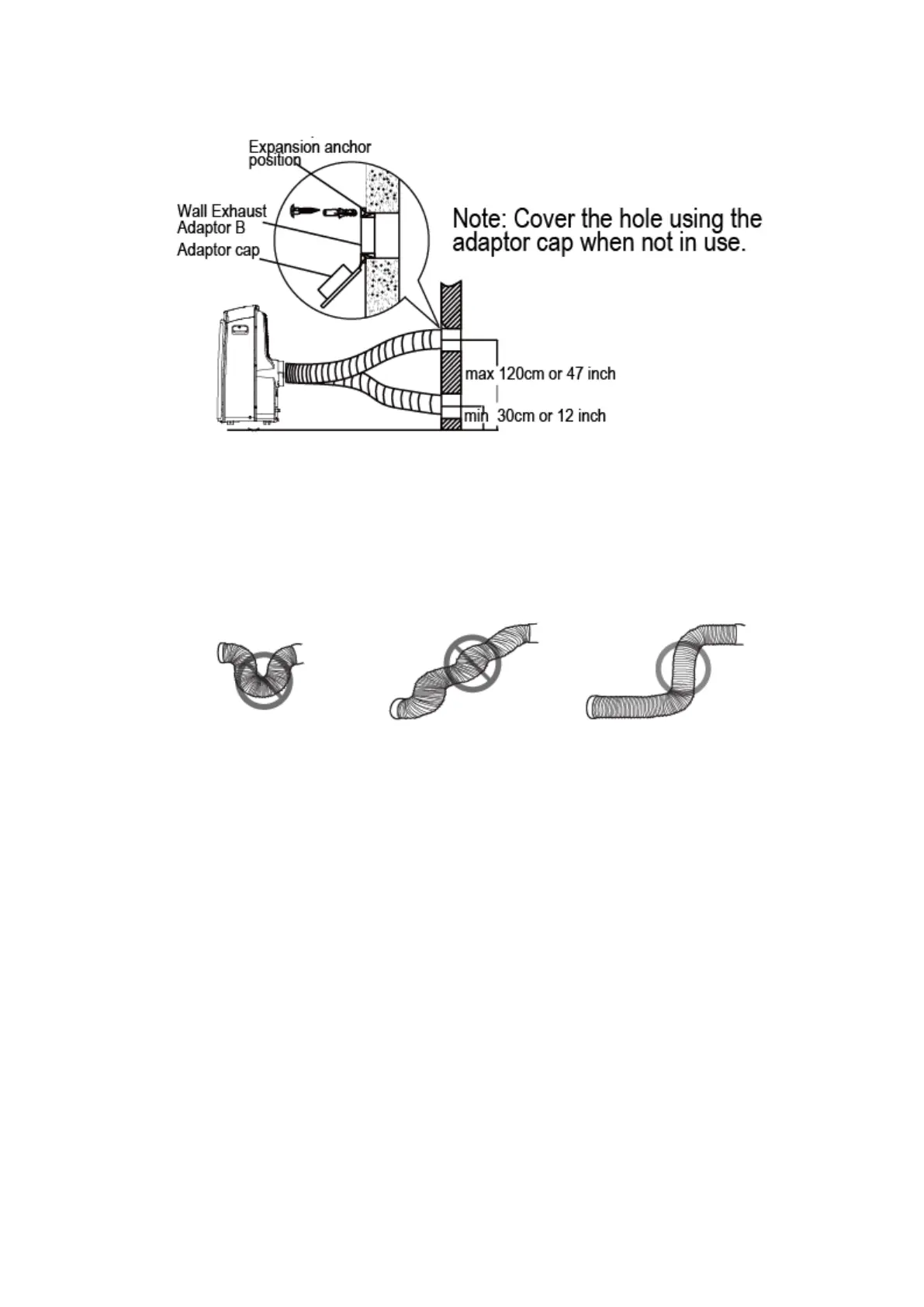

Type 3: Wall Installation(optional)
-Cut a 125mm (4.9inch) hole into the wall for the Wall Exhaust Adaptor B.
-Secure the Wall Exhaust Adaptor B to the wall using the four Anchors and Screws provided in the kit.
-Connect the Exhaust Hose Assembly(with Wall Exhaust Adaptor A) to the Wall Exhaust Adaptor B.
Note: To ensure proper function, DO NOT overextend or bend the hose. Make sure that there is no obstacle
around the air outlet of the exhaust hose (in the range of 500mm) in order to the exhaust system works
properly. All the illustrations in this manual are for explanation purpose only. Your air conditioner may be
slightly different. The actual shape shall prevail.
