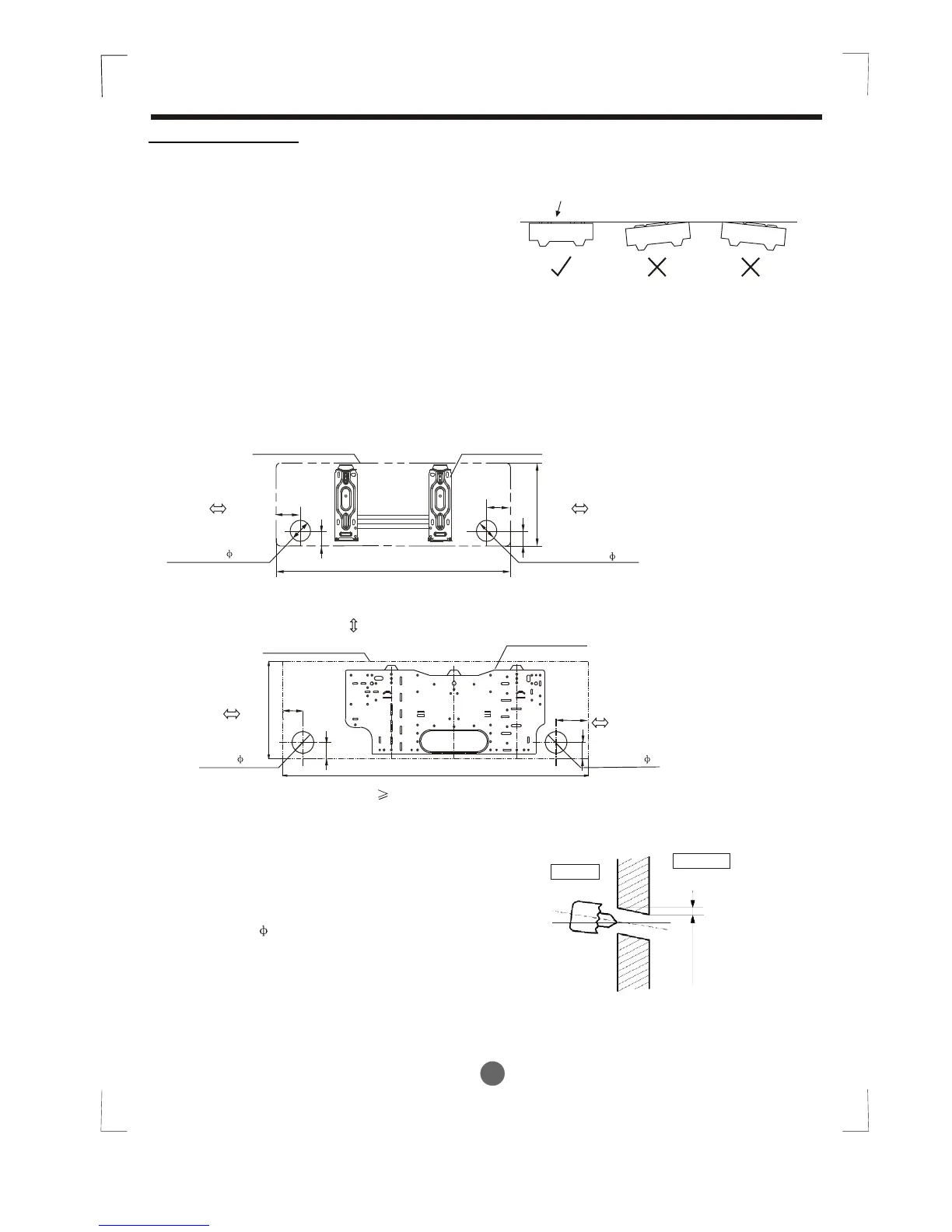

INSTALLATION INSTRUCTIONS
Indoor unit installation
2. Drill a hole in the wall
Fig.4
Note:
1. Fit the Installation Plate
1. Fit the installation plate horizontally
on structural parts of the wall with
spaces around the installation plate.
2. If the wall is made of brick, concrete or
the like, drill eight (8) 5mm diameter holes
in the wall. Insert Clip anchor for appropriate
mounting screws.
3. Fit the installation plate on the wall with eight
(8) type “A” screws.
Correct orientation
of Installation Plate
Fit the Installation Plate and drill holes in the wall according to the wall structure
and corresponding mounting points on the installation plate.
(Dimensions are in “mm” unless otherwise stated)
1. Determine hole positions according to
the diagram detailed in Fig.5. Drill
one (1) hole ( 65mm) slanting slightly
to outdoor side.
2. Always use wall hole conduit when
drilling metal grid, metal plate or the like.
Wall
Indoor
Outdoor
5-7mm
Fig.6
Fig.5
790
40
265
Right rear side
refrigerant
pipe hole 65
Installation plate
Indoor unit outline
Left rear side
refrigerant
pipe hole 65
150mm or more to ceiling
120mm or more
to wall
120mm or more
to wall
150mm or more to ceiling
Indoor unit outline
Installation plate
293
Right rear side
refrigerant
pipe hole 65
Left rear side
refrigerant
pipe hole 65
120mm or more
to wall
120mm or more
to wall
( 12000Btu/h model)
920
(<12000Btu/h model)
90
40
45
45
90
45
45
