Maintenance and

Disassembly

 Page 49 

MOBA01-09HFN1-BT0W

Procedure Illustration

1) Turn off the air conditioner and the

power breaker.

2) Remove the screws of the big handle

and then remove the big handle

(1 screw) (see CJ_BA01_INV_001).

3) Remove the screws of the top cover

and then remove the top cover (3

screws). One of the screws is located

underneath the big handle (see CJ_

BA01_INV_002).

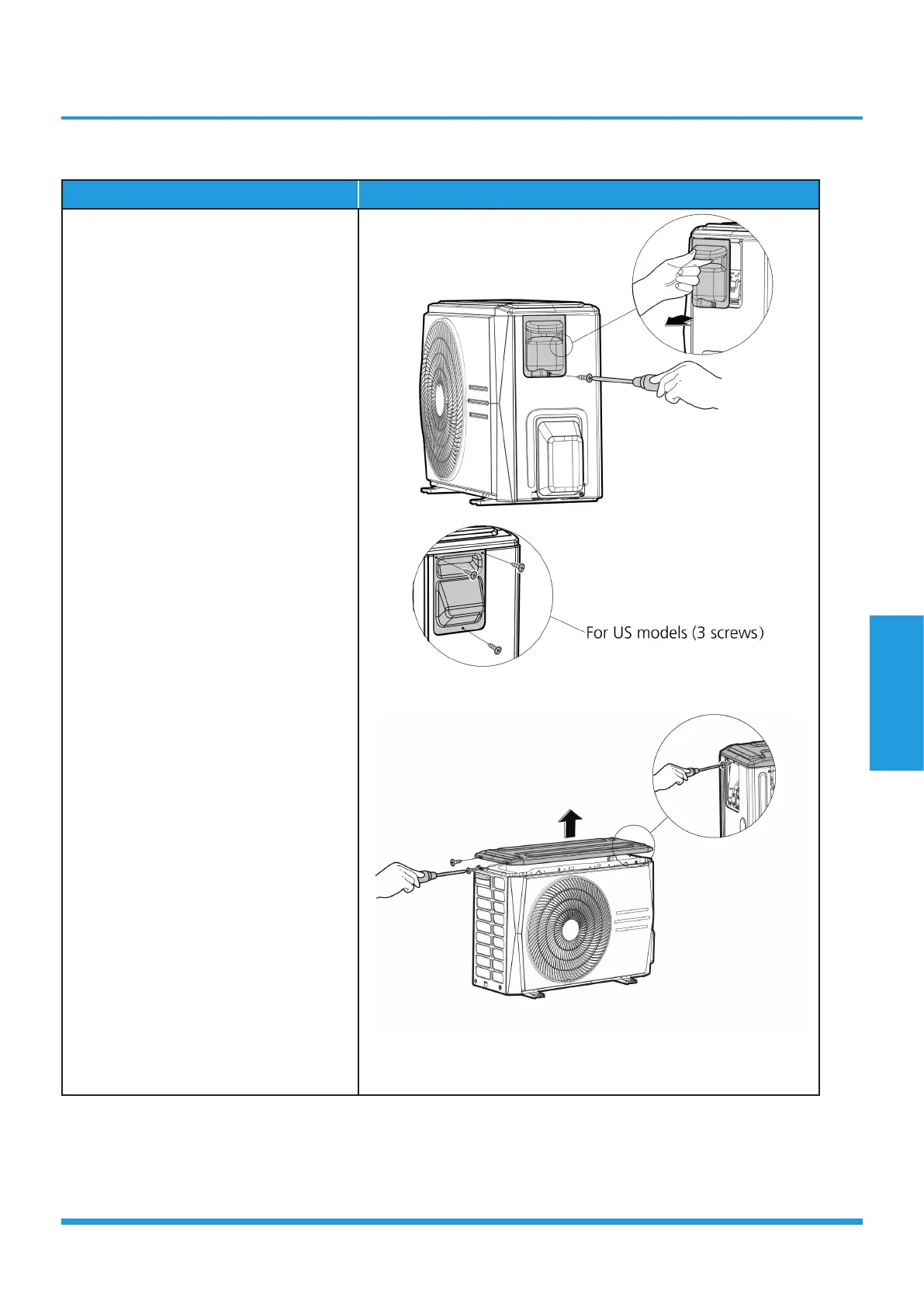

CJ_BA01_INV_001

CJ_BA01_INV_002

Note: This section is for reference only. Actual unit appearance may vary.
