Maintenance and
Disassembly
Page 62
MOD01-23HFN1-MT0W

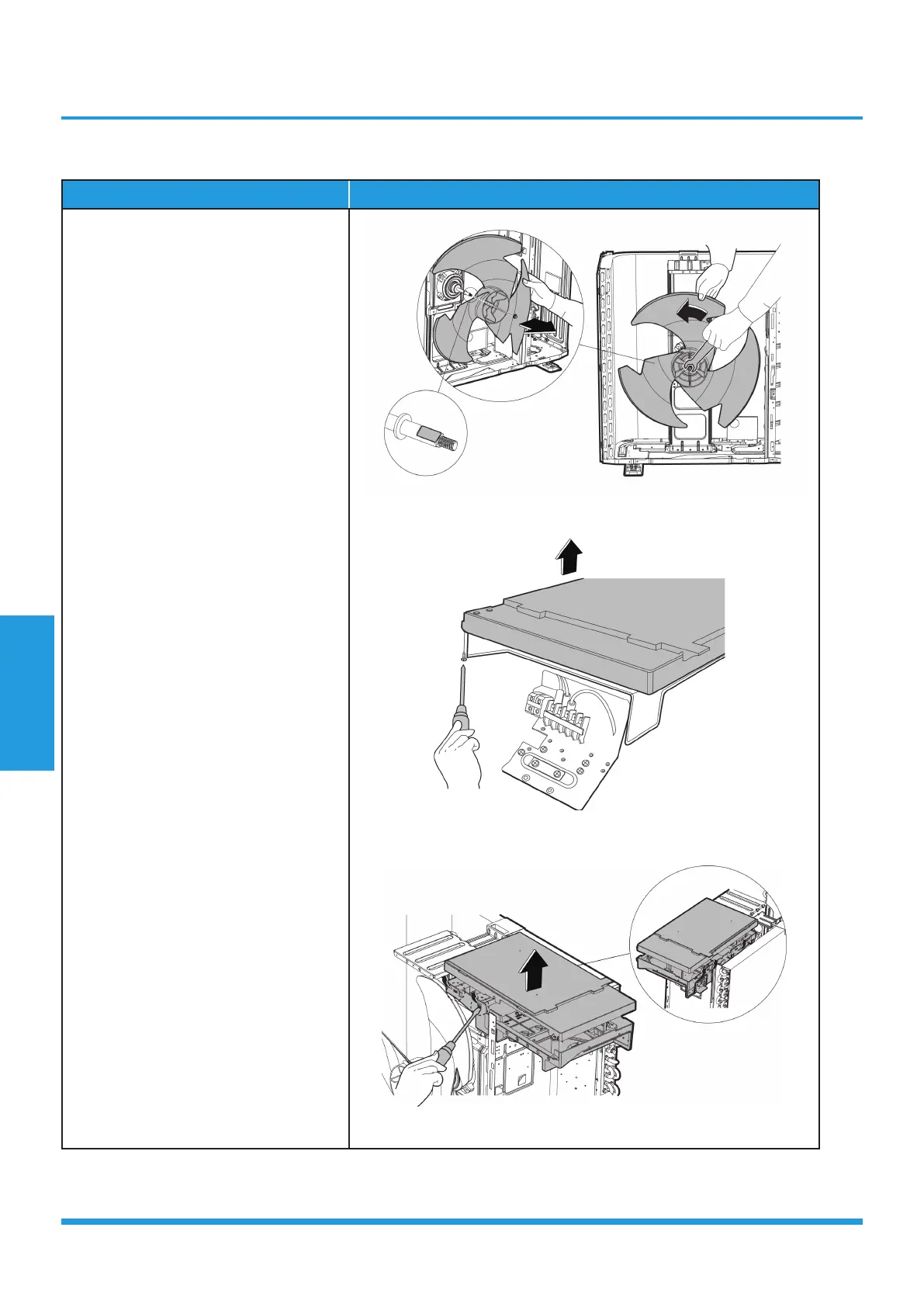

Procedure Illustration
1) Remove the nut securing the fan
with a spanner (see CJ_ODU_
INV_010).
2) Remove the fan.
3) Remove the fixing screws of the
electronic control box (see CJ_ODU_
INV_011).
4) Unfix the hooks and then open the
electronic control box cover (5 hooks)
(see CJ_ODU_INV_012).
CJ_ODU_INV_010
CJ_ODU_INV_011
CJ_ODU_INV_012
Note: This section is for reference only. Actual unit appearance may vary.
