Maintenance and
Disassembly
Page 66
MOD01-23HFN1-MT0W
Procedure Illustration
1) Remove the connector for the
compressor (see CJ_ODU_INV_016).
2) Pull out the two blue wires connected
with the four way valve (see CJ_ODU_
INV_016).
3) Pull out connectors of the condenser
coil temp. sensor(T3),outdoor ambient
temp. sensor(T4) and discharge temp.
sensor(TP) (see CJ_ODU_INV_016).
4) Disconnect the electronic expansion
valve wire (see Fig CJ_ODU_INV_016).
5) Remove the connector for the reactor
(see Fig CJ_ODU_INV_016).
6) Then remove the electronic control
box.

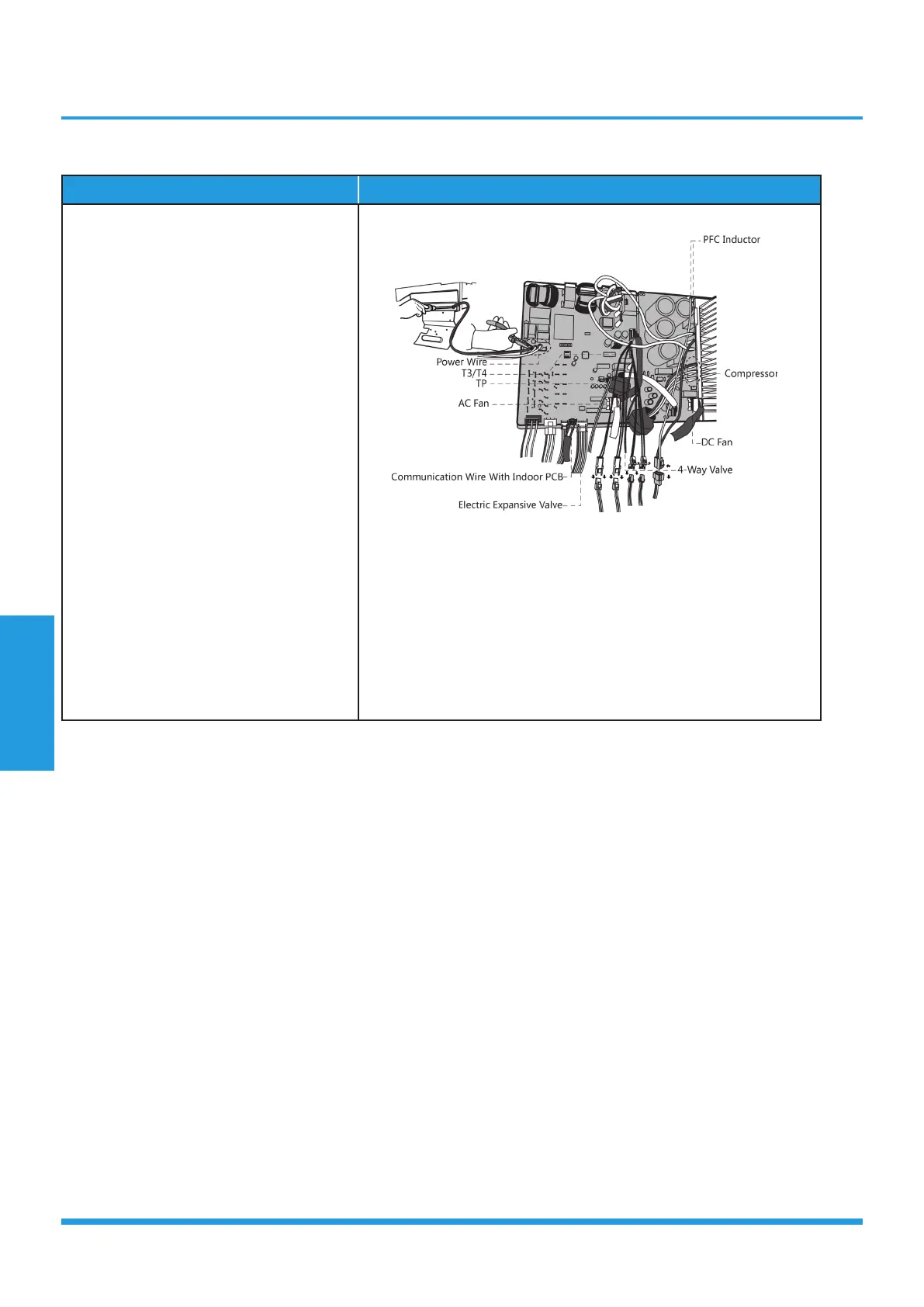

CJ_ODU_INV_016
Note: This section is for reference only. Actual unit appearance may vary.
