Maintenance and

Disassembly

 Page 70 

Procedure Illustration

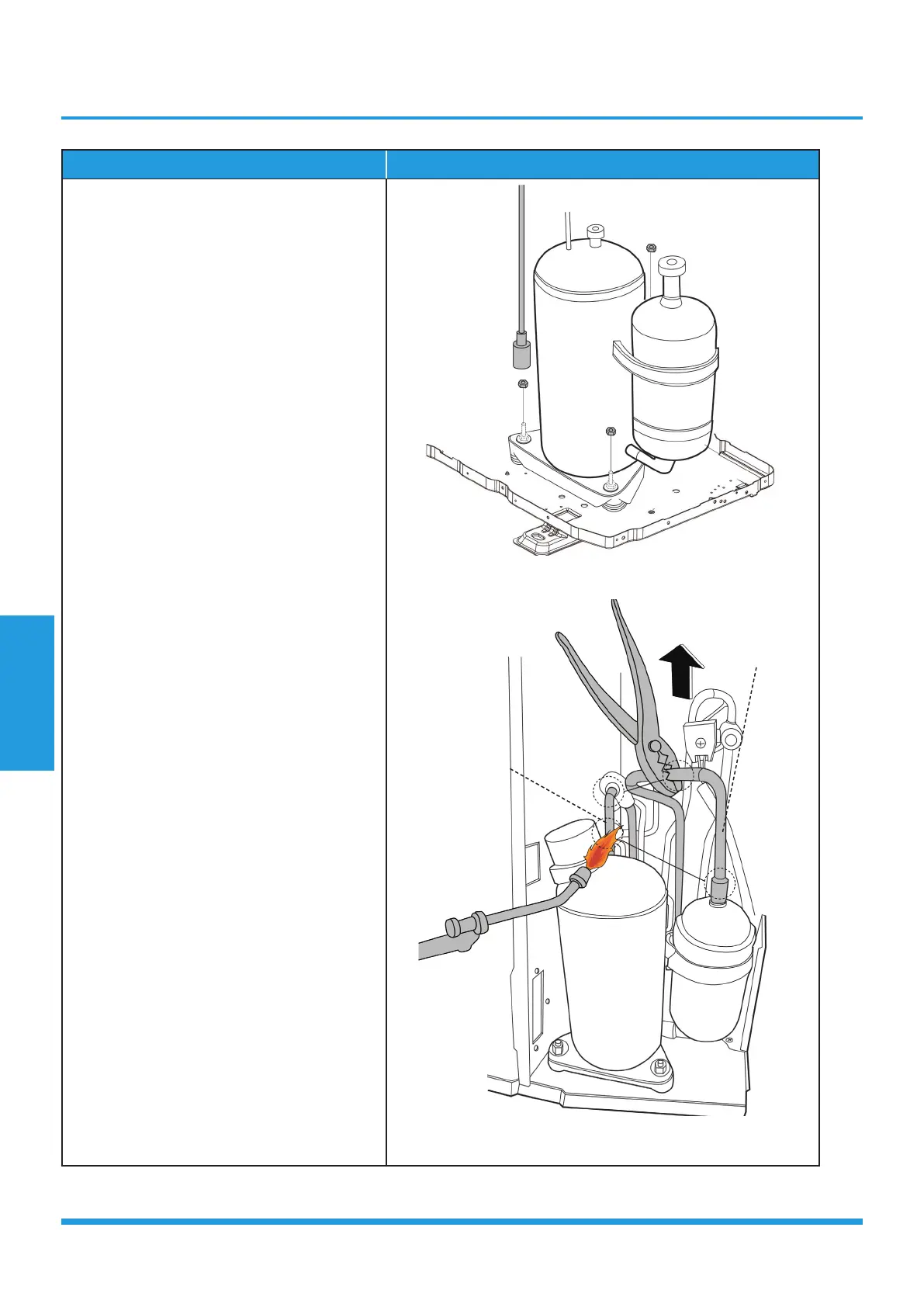

3) Remove the hex nuts and washers securing

the compressor, located on the bottom

plate (see CJ_ODU_INV_021).

4) Heat up the brazed parts and then remove

the the discharge pipe and the suction

pipe (see CJ_ODU_INV_022).

5) Lift the compressor from the base pan

assembly with pliers.

CJ_ODU_INV_021

CJ_ODU_INV_022

Note: This section is for reference only. Actual unit appearance may vary.

Discharge Pipe

Suction Pipe
