Midea MSV1I-09HRDN1 User Manual

13
7 Wire connection
7.1 Connection wire specification
Standard
length(mm)
Cores Thickness(mm
2
) Wire cover
specification
Connection wire
between indoor
unit and outdoor
unit
6000
4
(L,N,S,Grounding)
1.0
Neoprene
YZW300/500V
Remark: The connection wire between indoor unit and outdoor unit is standard. And it is
packaged in the indoor unit.

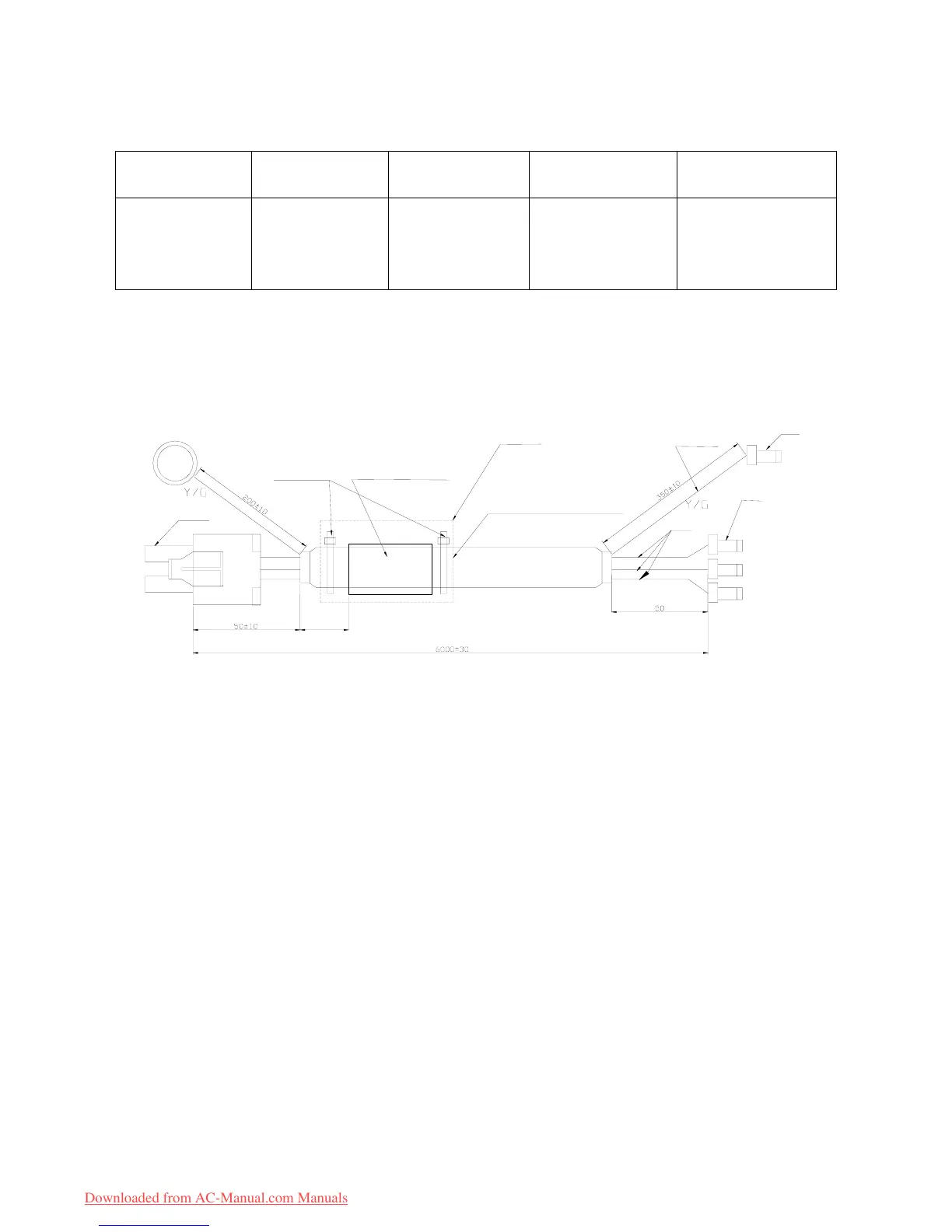

7.2 Connection wire drawing
20±10
2 Neoprene YZW300/500V
C5A 21*9*37
magnetism cycle
Tight cincture
120
Heat retractile pipe
Plug
Grouding
terminal
1.0mm2
L
N
S
Grounding
1.0mm2
Wire connection
terminal
