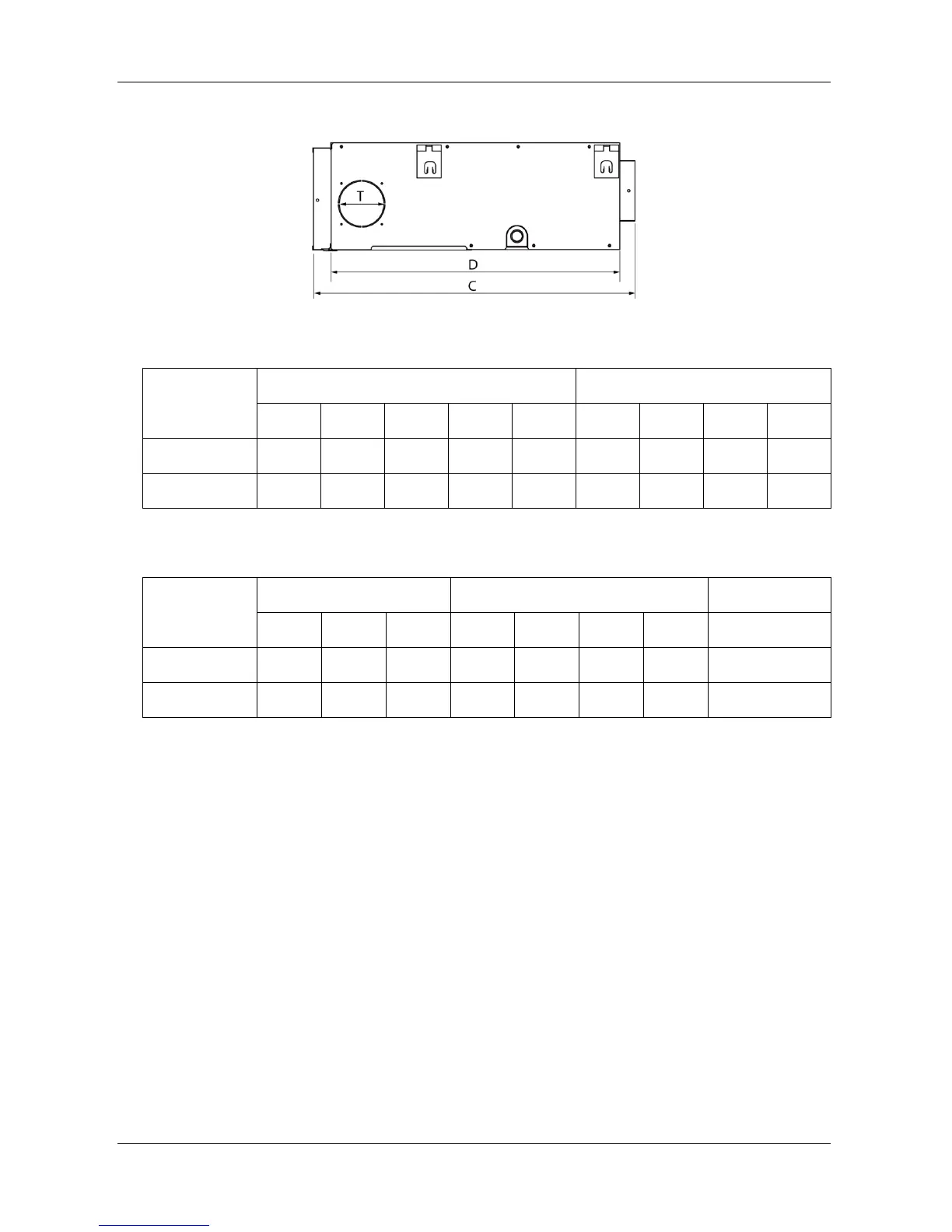

MCAC-UTSM-201707 Midea Tropical R410A High Efficient Duct Technical Manual 50Hz
22
Left side view
(Unit: mm)
Model
Outline dimension
Air outlet opening size
A
B
C
D
E
F
G
H
I
MTA-24WN1
1,140
270
775
710
1,230
65
933
35
179
MTA-36WN1
1,140
270
775
710
1,230
65
933
35
179
(Unit: mm)
Model
Air return opening size
Size of mounted lug
Fresh air inlet
J
K
L
M
N
O
P
T
MTA-24WN1
1,035
260
20
1,180
490
26
20
Φ125
MTA-36WN1
1,035
260
20
1,180
490
26
20
Φ125
