MCAC-UTSM-201707 Midea Tropical R410A High Efficient Duct Technical Manual 50Hz
90
Model
MOVTB-36CN1-R13C
MOVTB-48CN1-R13C
MOVTB-60CN1-R13C
Power supply
380-415V~, 3Ph, 50Hz
380-415V~, 3Ph, 50Hz
380-415V~, 3Ph, 50Hz
Circuit breaker / Fuse
15A/15A
20A/20A
25A/25A
Power supply cable
5×2.5mm
2
5×2.5mm
2
5×2.5mm
2
Connective wire of indoor
and outdoor unit
2×0.75mm
2
2×0.75mm
2
2×0.75mm
2

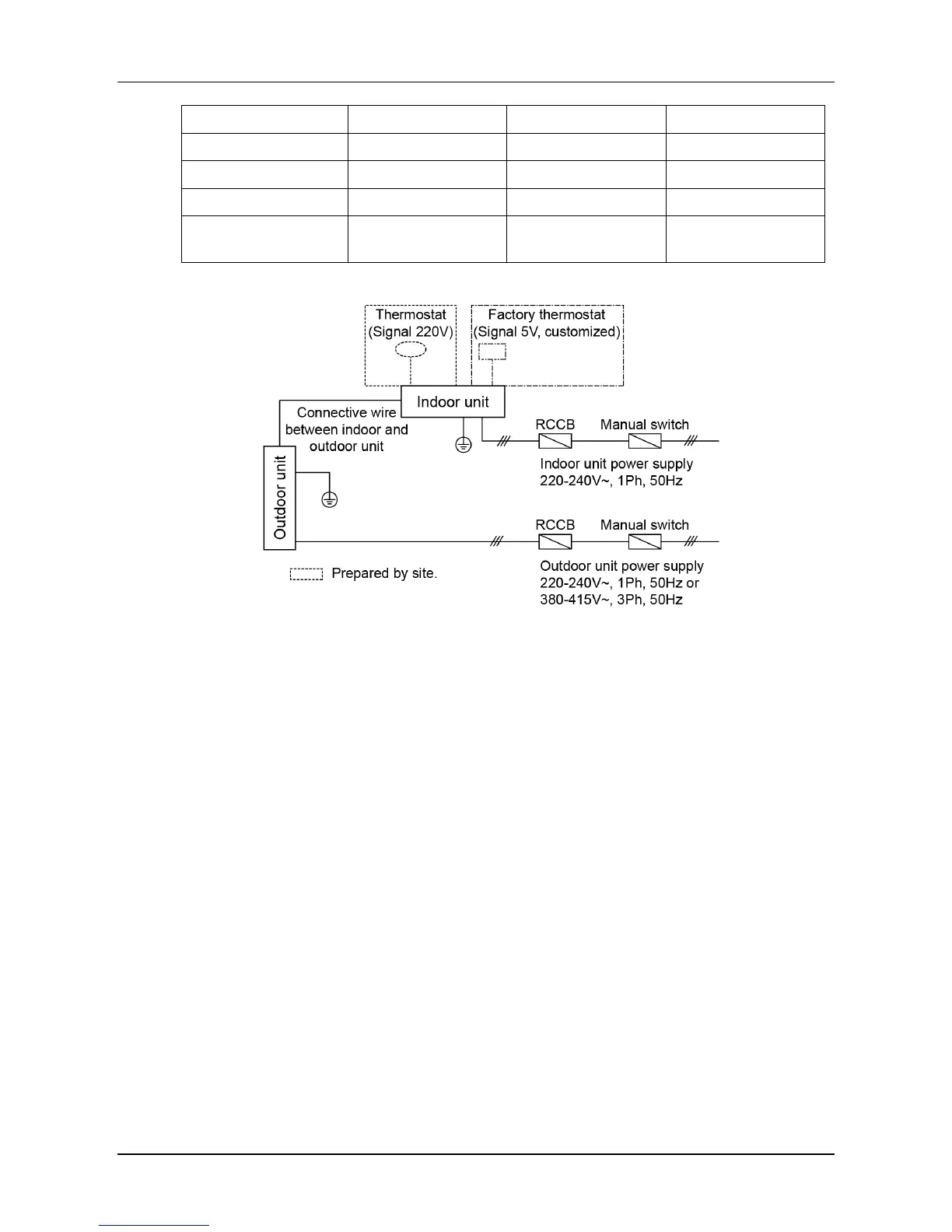

6.3 Schematic diagram
Notes:
Other thermostat with 220V signal and factory thermostat with 5V cannot be connected with
indoor unit together.
