the specific procedures.
Cut off the roof beam. Strengthen the place cut off, and consolidate the roof beam.
Carry out the pipe and line operation in the ciling after finishing the installation of the main
body. While choosing where to start the operation, determine the direction of the pipes to be
drawn out. Especially in case there is a ceiling, position the refrigerant pipes, drain pipes,
indoor and outdoor lines to the connection places before hanging up the unit.

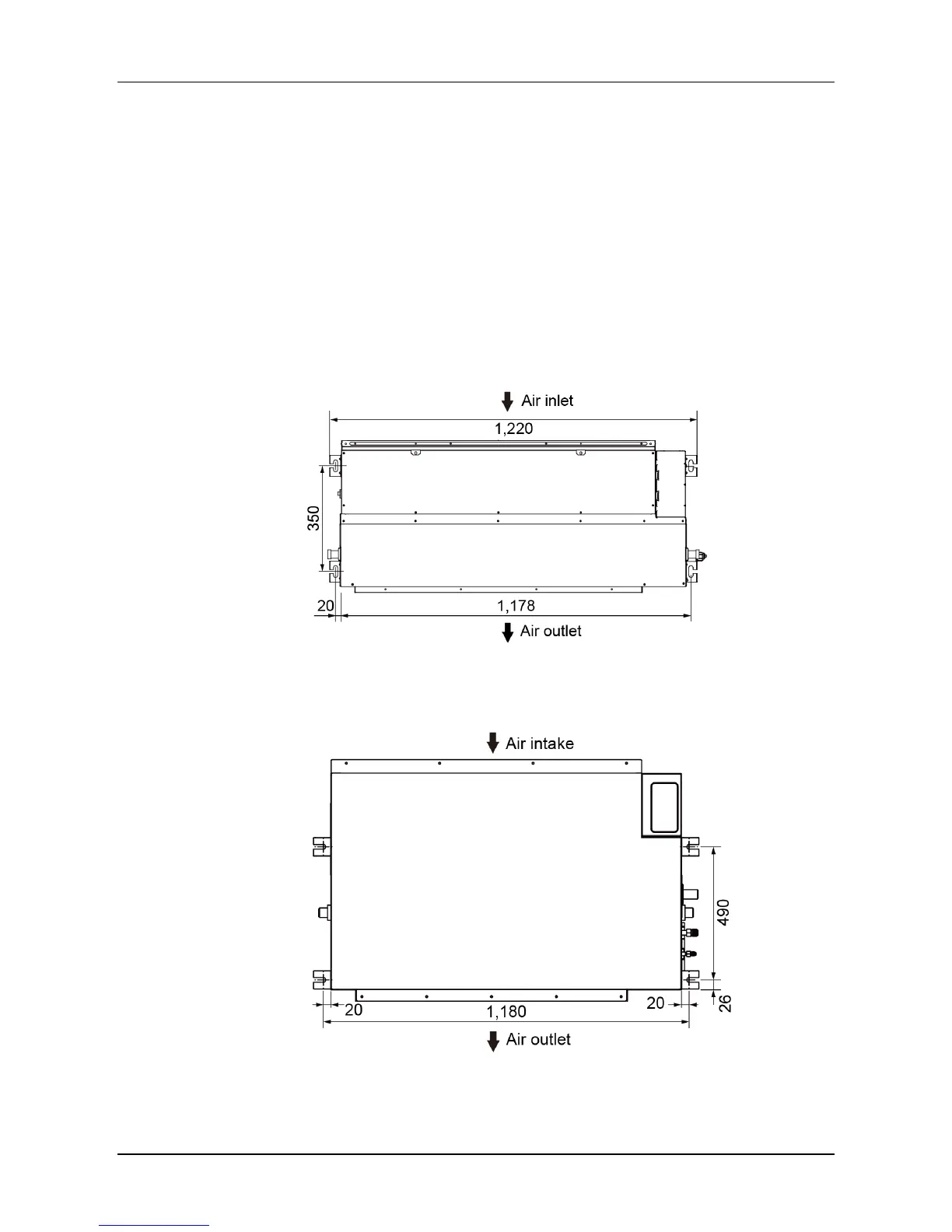

The distance between the four screw bolts:
MTA-18WN1: (Unit: mm)
MTA-24WN1, MTA-36WN1: (Unit: mm)
