DM13-01.01.16en Air-cooled Package
Service manual 99

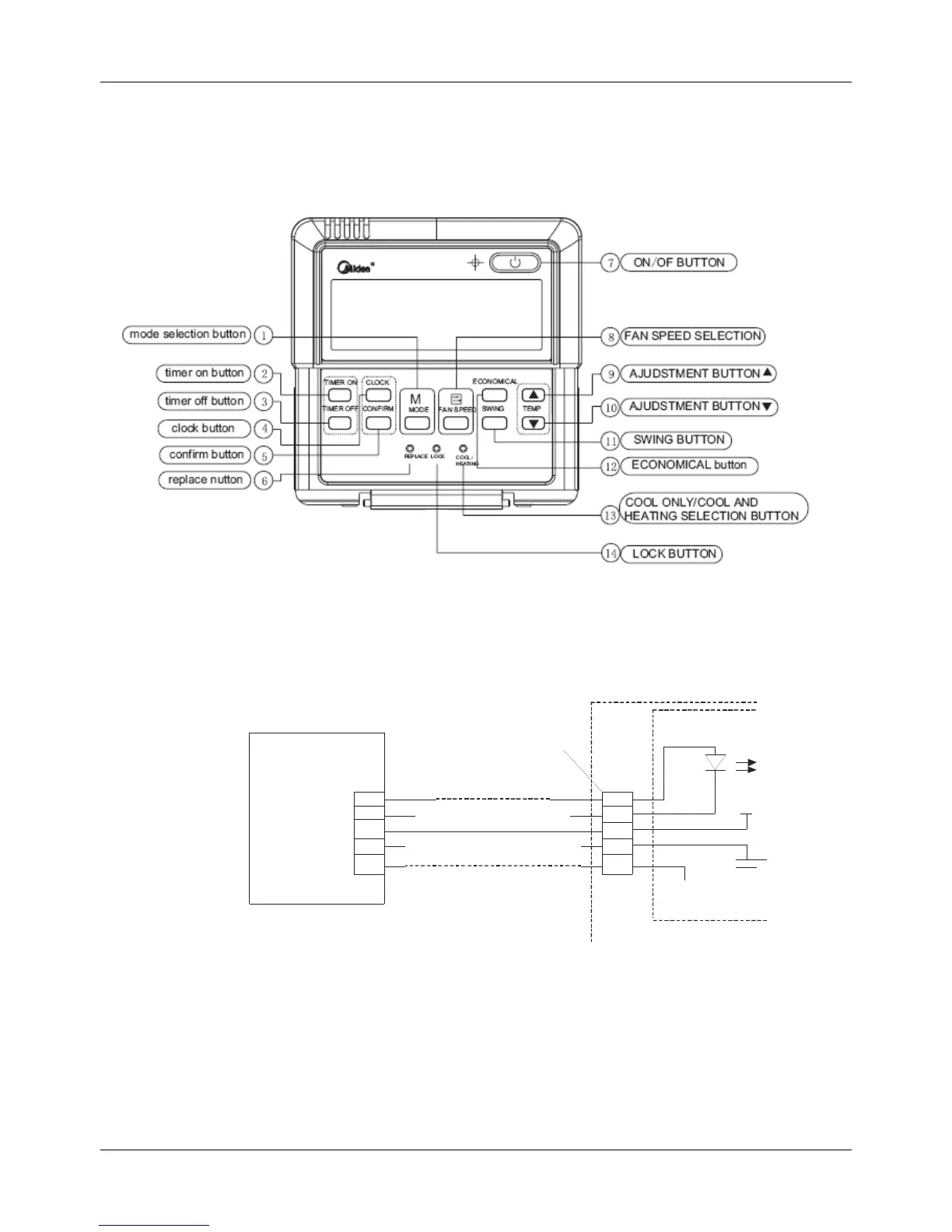

2. Wired controller (Optional)
KJR-10B
1) Outlook
2) Installation
Wire Controller
B
A
C
D
E
B
A
C
D
E
5-Core Shield Cable,the length
is decided by installation
Wir e Joint, 5p
Infraed Pipe
Indoor Unit
RUN
GND
+5
Wiring Principle Sketch:
Indoor Unit Switch Board
Note:
When the air conditioner needs the constant frequency wire Controller. Be sure adding a Wire Joint with 5 terminal named A, B, C,
D, E in indoor unit. And fixing a infrared emitter whose anode and cathode connecting with A and B near the receiver in the Indoor
Unit Switch Board, then connecting the terminal +5V, GND, Run in the Switch Board to C, D, E respectively.
To Next Page
