Air-cooled Package DM13-01.01.16en
12 Service manual

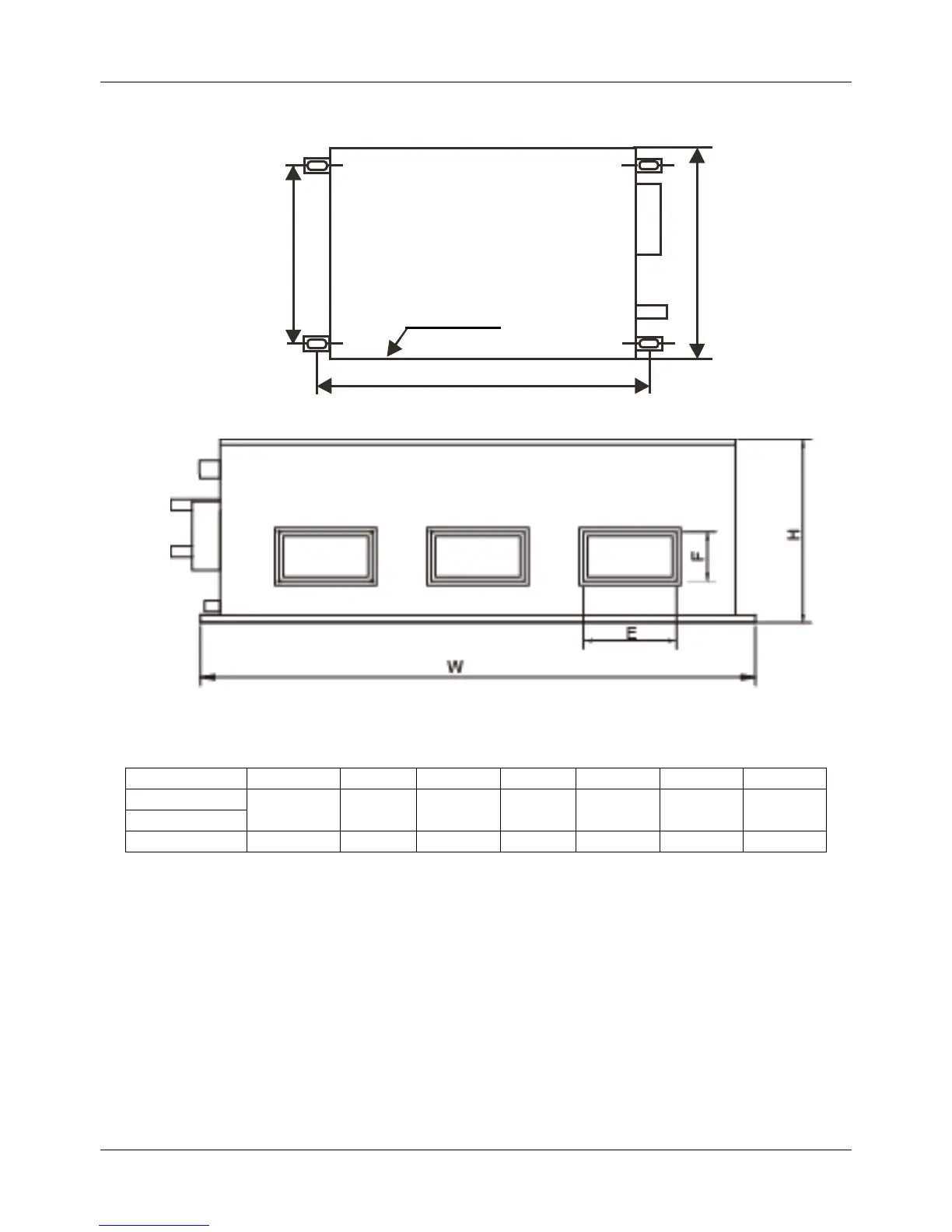

3.2 Duct type units with three air outlets：
Air inlet side
C
B
D
Model B (mm) C(mm) E(mm) F(mm) W (mm) H (mm) D (mm)
MTA-120CRN1
794.5 1895 330 180 1970 668 860
MTA-120HRN1
MTA-150CRN1 794.5 1895 330 180 1970 668 860
