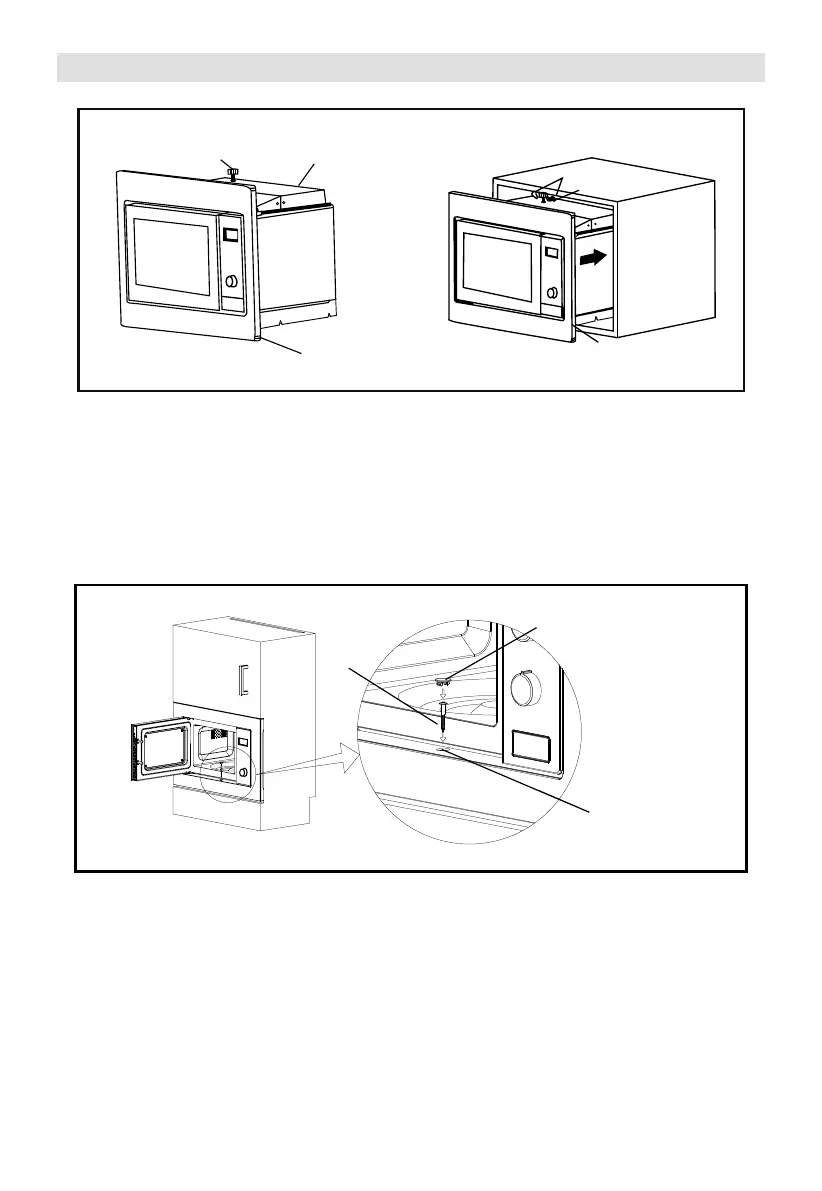

• Fix ADJSUTSCREW A on the UPPER AIR TUNNEL of the oven, and then install the
oven into the cabinet.
- Adjust the height of ADJUST SCREW A to keep 1mm gap between the ADJUST
SCREW A and the top plane of cabinet.
- Do not trap or kink the power cord.
- Make sure that the oven is installed in the centre of the cabinet.
• Open the door; fix the oven to the cabinet with SCREW B at the INSTALLATION HOLE
of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE.
B. Install the Oven
TRIM-KIT
UPPER AIR TUNNEL
ADJUST SCREW A
ADJUST HEIGHT
ADJUST SCREW A
TRIM KIT
SCREW B
TRIM-KIT PLASTIC COVER
INSTALLATION HOLE
