30
(see below 6.4.3). Holes from the outside through to the cavity should be sealed. The housing should
slope down towards the rear by about 5mm to allow water formed during operation to drain.
Step3
. Install the housing into the wall and secure. Ensure the foam seals are not damaged. Flash, seal or fill
gaps around the inside and outside to provide satisfactory appearance and protection against the
weather, insects and rodents.
6.4.2 Installation of the unit into the housing.
※Slide the unit into the housing until it is firmly against the rear of the housing. Care is required to
ensure the foam sealing strips on the housing remain in position.
※Connect the air conditioner to the power and position excess cord length beneath the air conditioner
base.
※Engage the chassis fixing brackets into the bottom housing rail and secure to the base with the screw
provided.
※Remove the front panel from it's carton and plastic bag and fit as per the installation instruction.
Switch unit on. Check for operation of the unit and check for vibration in the installation.
※Fit the drain pan to the housing and run a drain line to a suitable location if required.

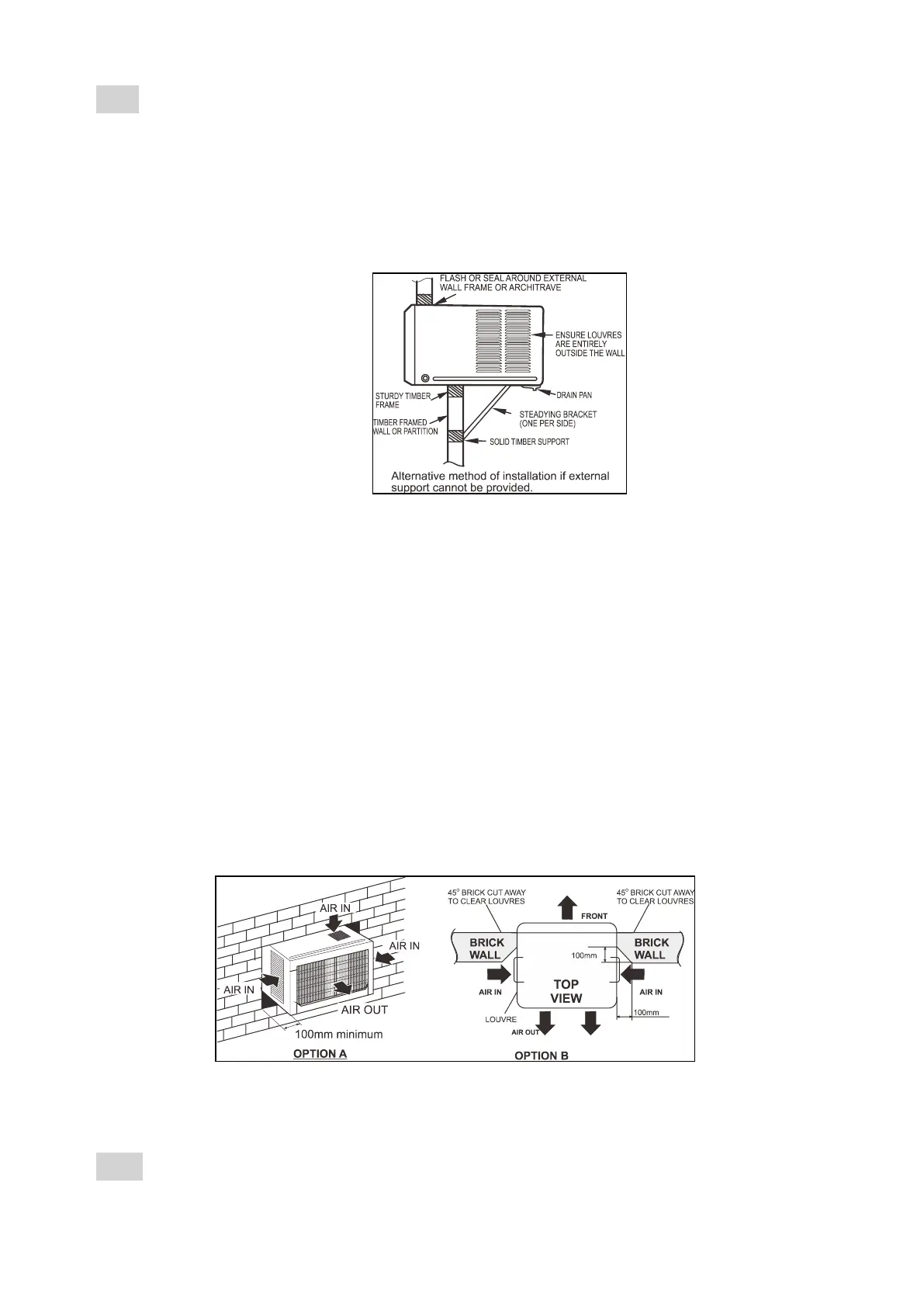

6.4.3 Installation of the unit into the wall.
6.4.4 Installation steps.
Step 1 Remove the front panel and the air filter.
