24
8.2
Outdoor centrifugal
fan
201100100702
8.3
Outdoor volute shell
cover
201125190051
8.4
Fan motor
202400400969
9
Rear panel assembly
201125190062
10
Drain stopper
202725490002
11
Fixing joint for water
drain
201125490271
12
Air discharger
201125690024
13
Outdoor wind
discharging pipe
201125190159
16
Air Outlet Tie-in
201125190130
18
Window sealing
board I
201125090001
19
Window sealing
board II
201125090002
20
Evaporator
201525590024
21
Remote contrller
2033550A3095
22
Compressor
201402000570
23
Condenser
201525190039

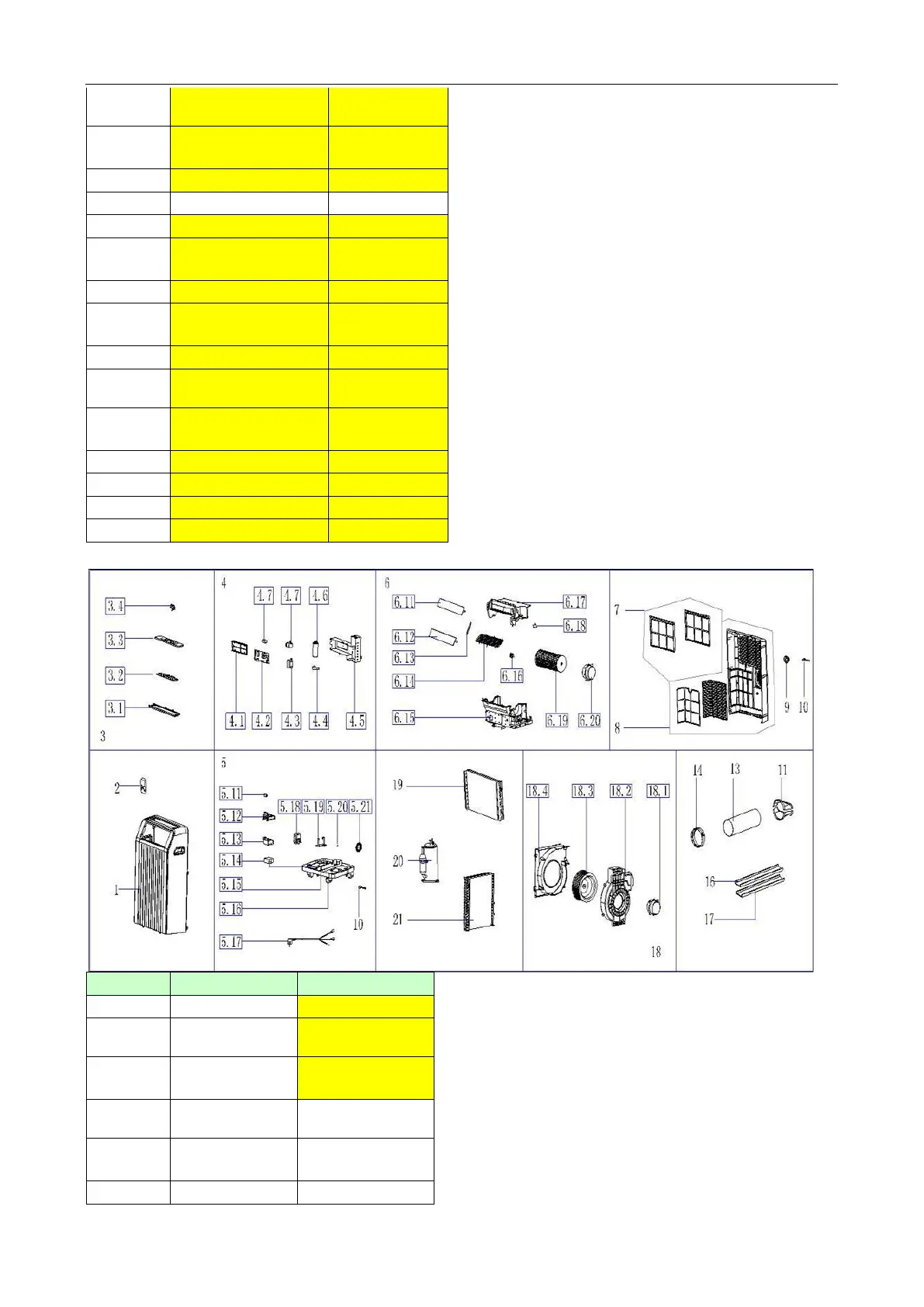

Exploded View & Parts Listing: MPN1-10CRN1-BH9
No.
Part Name
BOM code
1
Front panel
2011252A0068
2
Remote
controller
2033550A3478
3
Display box
assembly
2033252A0023
3.1
Display box
cover
201125290003
3.2
Display board
assembly
201325490141
3.3
Control panel
201125290029
