维修手册 Service Manual, 2017 v1.0
4 / 16

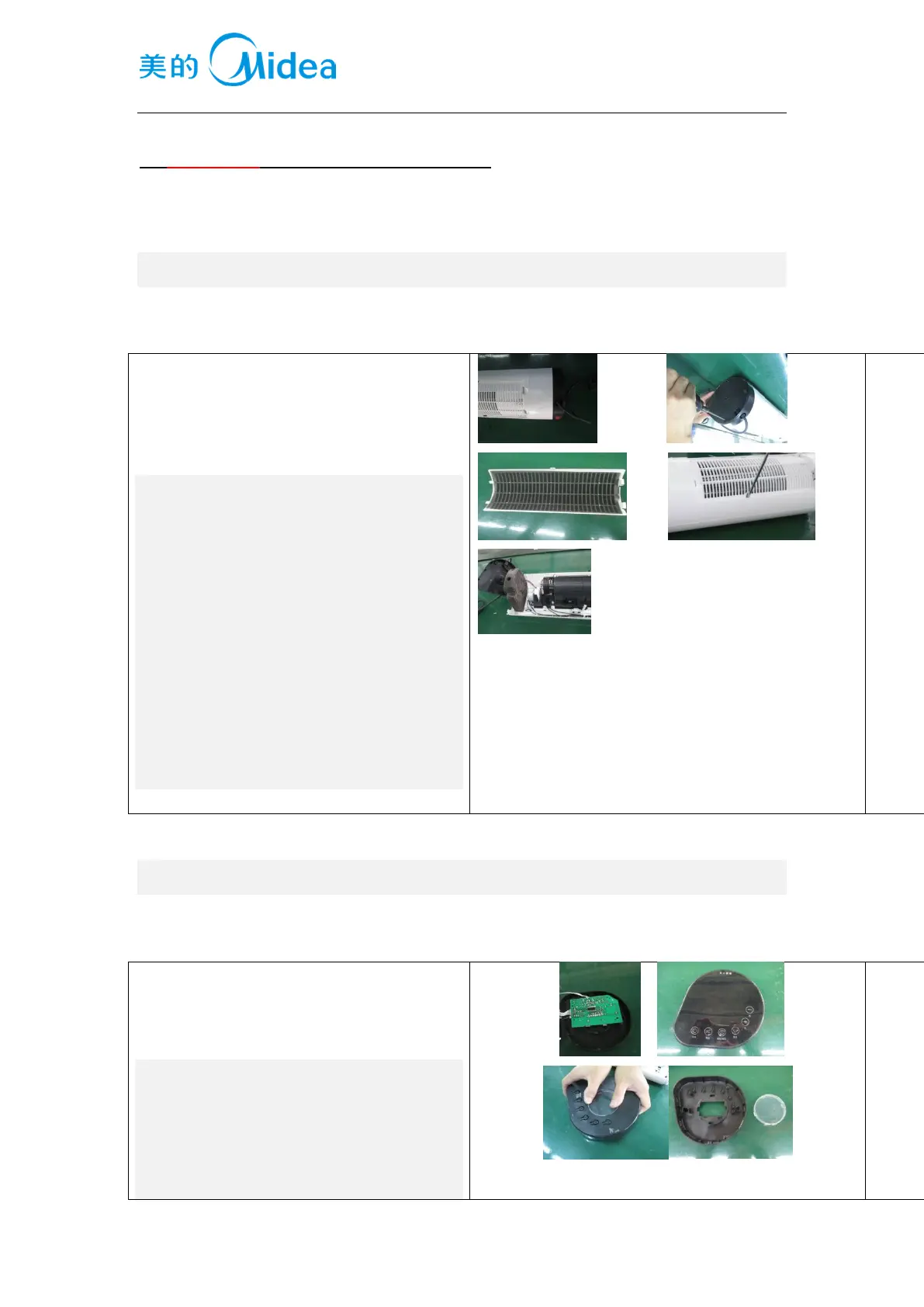

2. 整机拆卸 Dismantling of appliance
2.1
底座
/
后壳拆卸
Remove base/rear housing
1 使用电批取下固定底座的螺钉；
2 取下底座，并且取下配重块；
3 将后壳滤网盖取下，并用电批取下固定后壳
的螺钉。
4 将前后壳的卡扣松开，取下后壳。
1. Use the electric batch to remove the screw of
the fixed base;
2. Remove the base and the weight distribution
block;
3. Remove the filter cover of the rear shell, and
remove the screw of the fixed rear shell by
electricity batch.
Release the front and rear shell clasp and
remove the back shell.
2.2
顶盖拆卸
The top to remove
1 使用电批取下固定顶盖的螺钉，取下顶盖；
2 使用电批取下固定控制电路板的螺钉，取下
控制电路板；
3 将面贴从顶盖上面取出。
1. Use the electric batch to remove the screw
fixing the cover and remove the cover;
2. Use electrical batch to remove the screw of
the fixed control board and remove the control
To Next Page
