维修手册 Service Manual, 2017 v1.0
6 / 16

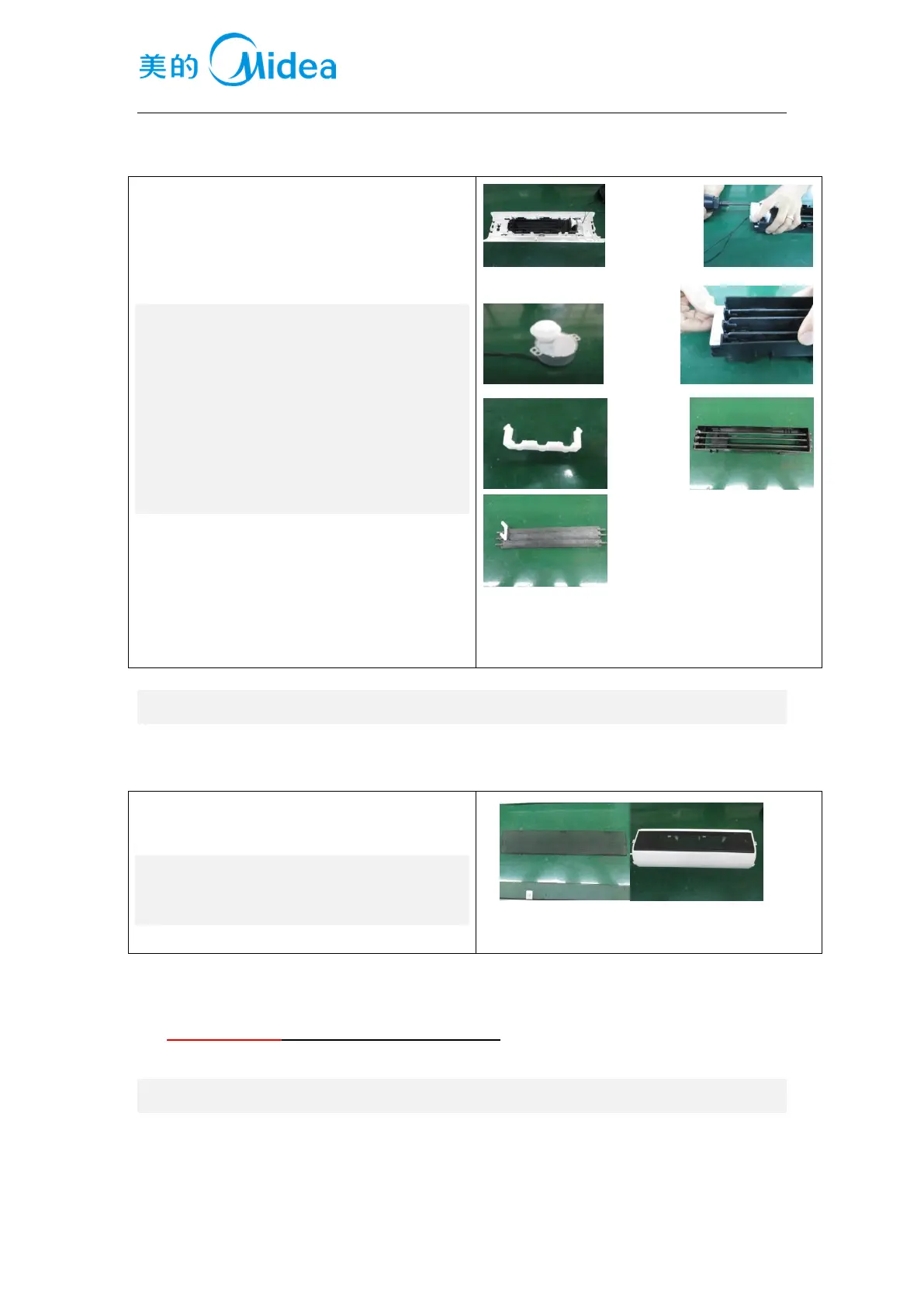

1 使用电批取下固定同步电机的螺钉；
2 取下偏心轮；
3 将风叶压板取出；
4 取出摆风风叶并取出相应的支架。
1. Use electrical batch to remove the screws that
fix the synchronous motor;
2. Remove the eccentric wheel;
3. Take out the wind blade pressing plate;
4. Take out the swing air leaf and take out the
corresponding support
2.6
菱形网拆卸
Diamond mesh removal
1 使用一字批将菱形网的卡扣翘起，取出菱形
网。
1. Use a word batch to lift the card button of the
diamond net and take out the diamond net.
3. 整机的安装 Function and operation
3.1
网栅安装
Mesh is installed
