Midea NTH15-17BR

维修手册 Service Manual, 2017 v1.0
7 / 16

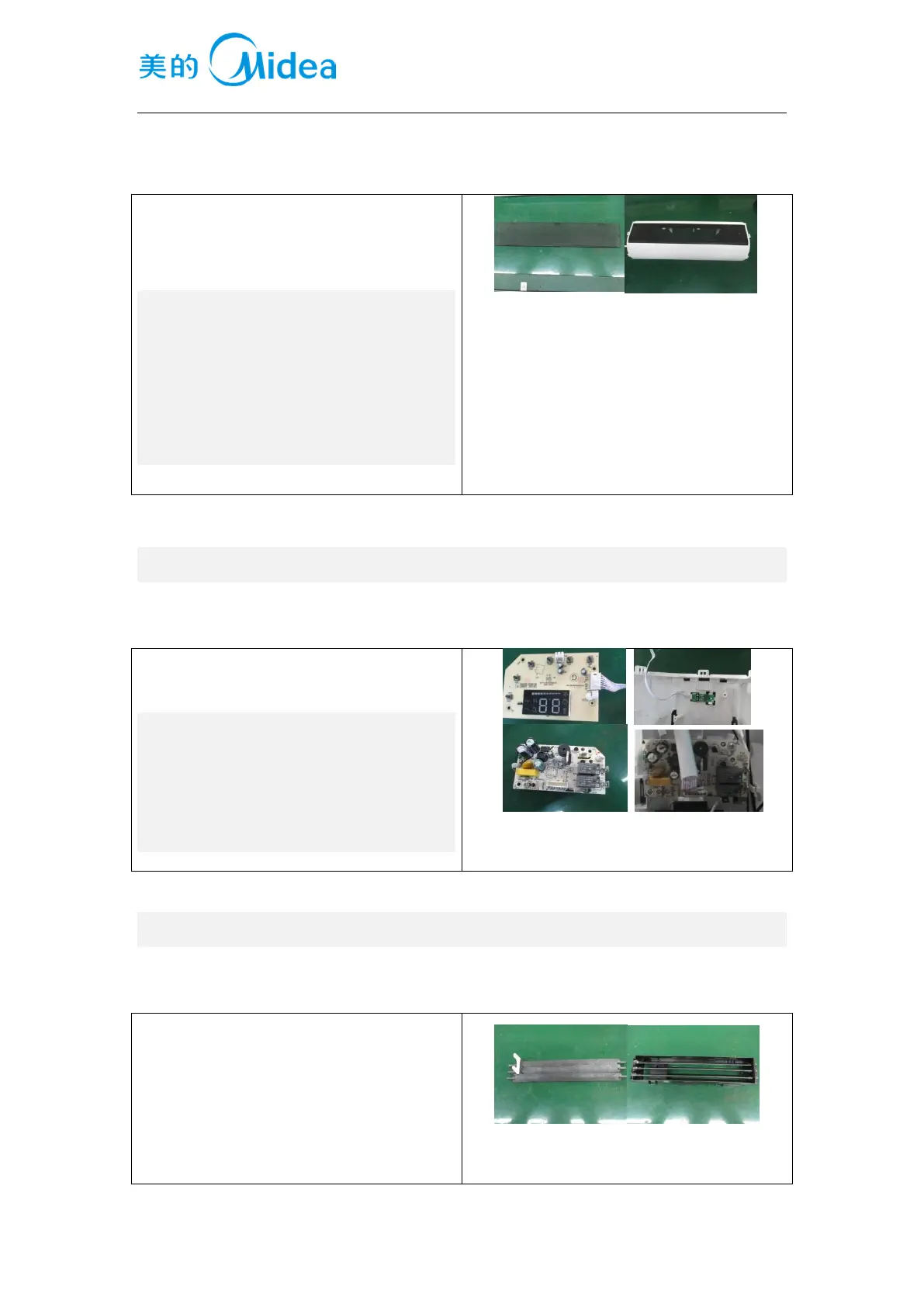

1. 取一前网，检查无掉漆、刮手后将扣脚对
准前壳网槽装进去并检查各扣位需完全卡到
位。
1. Take a front net, check that no paint has
been removed, put the buckle foot into the
front shell net slot after scraping, and check
that all fasteners need to be completely stuck
in place.
3.2
电源电路板安装
Power circuit board installation
1. 取电路板总成将其上的感应头安装在前壳
上；
2. 取电源电路板并用螺钉固定在前壳上。
1. Take the circuit board assembly and install
the induction head on it on the front shell;
2. Take the power circuit board and fix it on the
front shell with screws.
3.3
出风格栅的安装
Installation of the air grid
1. 分别取 3 根竖向风叶将卡位筋对准风叶支
架卡槽安装到位；
2. 取一出风格栅将风叶组件对应插入 3 个孔
位中，支架端放置于出风格栅卡槽位中；
3. 在出风格栅卡槽位处加少量润滑脂，取一
压板对应安装在出风格栅卡槽端，压住竖向
风叶。
