维修手册 Service Manual, 2017 v1.0
5 / 16
board;
3. Remove the noodle paste from the top of the
cover.

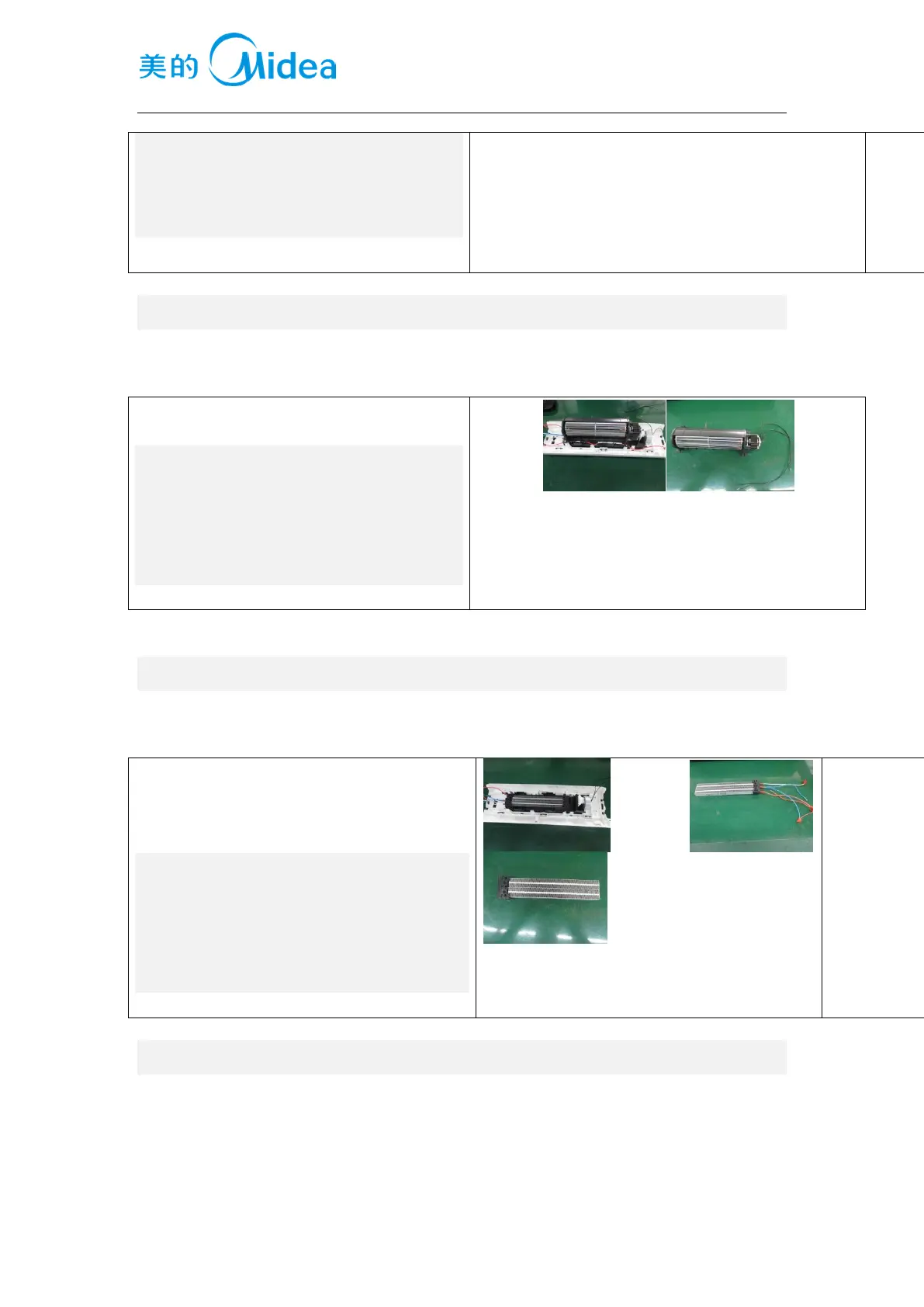

2.3
风机组件的拆卸
Removal of fan assembly
1.将用来固定风机组件的螺钉用十字螺丝刀拆
卸，取下风机组件，并且拆开相应的接线帽。
1. Remove the screw used to fix the fan
assembly with the cross screwdriver, remove the
air unit parts, and open the corresponding
wiring cap.
2.4 PTC
拆卸
PTC disassembly
1. 从出风格栅里面取出 PTC 与 PTC 支架；
2. 将 PTC 支架引线从 PTC 支架里面取出，取下
PTC 发热体。
1. PTC and PTC supports were removed from the
air outlet grille;
2. Take the lead wire of PTC bracket out of PTC
bracket and remove the PTC heating body.
2.5
出风格栅拆卸
The air grid is removed
