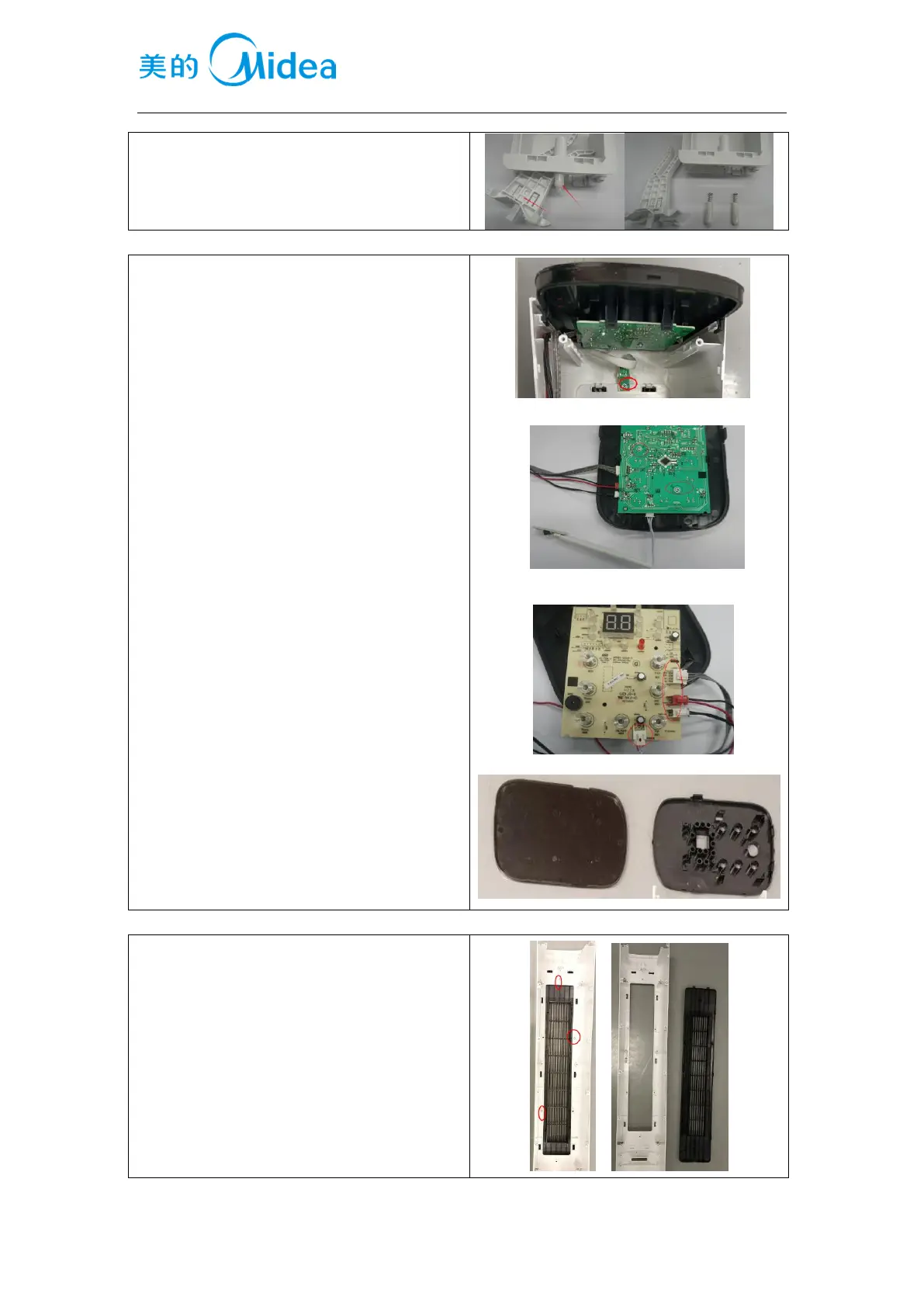

4)取出拨杆和导套。
4）Remove the paddle and the sleeve.
.
2.7 拆顶壳组件 Dismantling the Top cover assembly
1)松开遥控接收板与前壳的螺钉。
1) Loosen the screw that fix the remote control
receiving board and the front cover.
2)松开控制板与顶壳之间的螺钉。
2）Loosen the screws that fix the control PCB and
the top cover.
3)拆开线束。
3）Disassembling the wires.
4)拆开顶盖与顶壳。
4）Disassembling the top cap and the top cover.
.
2.8 拆前网与前壳 Dismantling the mesh grill
1)松开前网与前壳的螺钉。
1) Loosen the screws that fix the mesh grill and
the front cover, then remove it.
.
