Midea NTH15-23AR

维修手册 Service Manual, 2021 v1.0
8 / 17

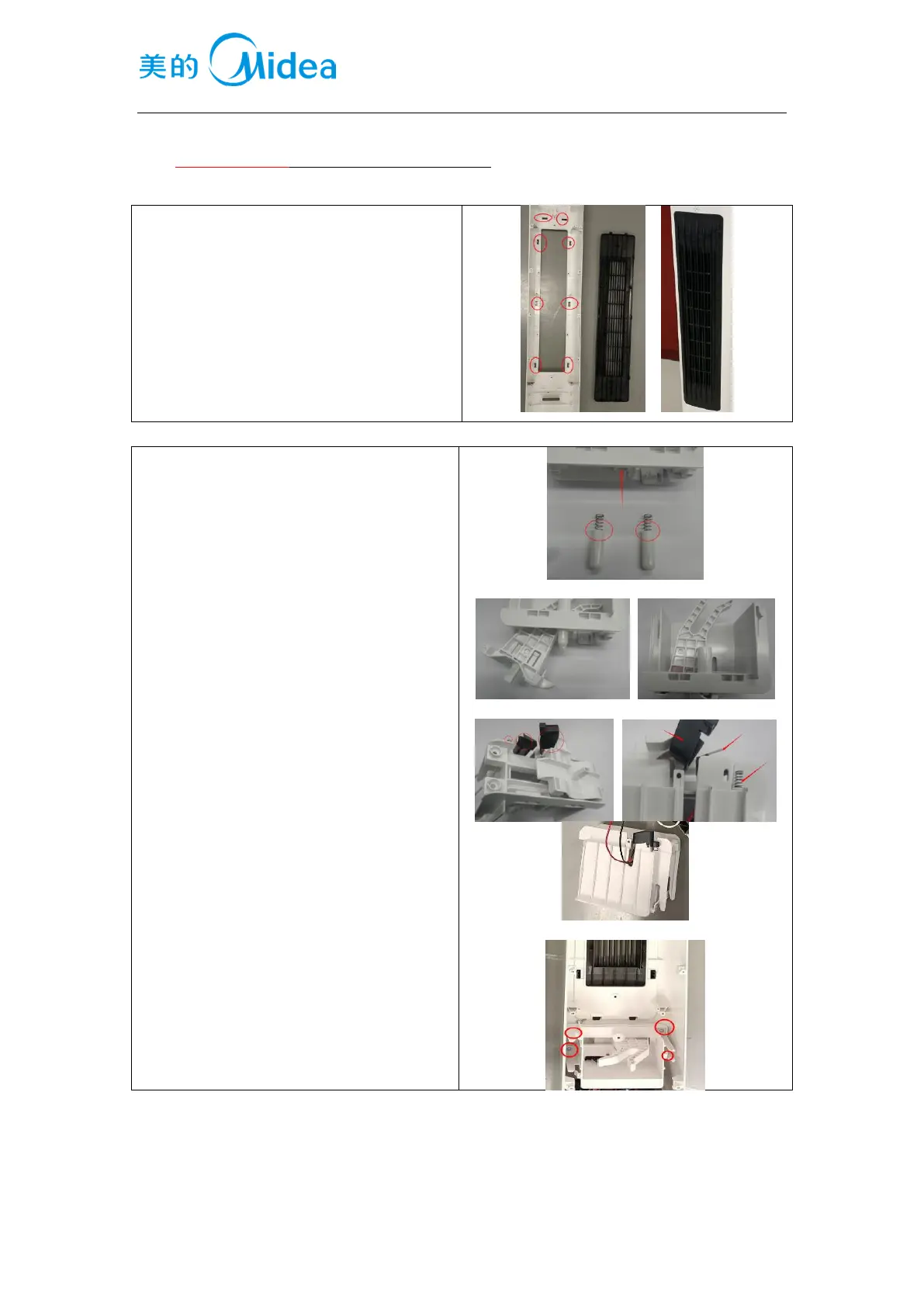

3. 整机的安装 Function and operation
3.1 安装前网 Install enclosure
1、将前网安装到前壳上
Install the enclosure into the front cover.
3.2 安装拨杆组件 Install the Paddle assembly
1)将弹簧放入导套，然后装入挡板的孔中。
1）Put the spring into the sleeve, then put them
into the Paddle bracket.
2)将拨杆放入拨杆支架中，确保扣位扣住支
架。
2）Put the paddle into the paddle bracket,
ensure that the buckle engages the bracket
3)将微动开关、微动开关外壳、弹簧安装到
拨杆支架上。
3）Install the microswitch, the microswitch
housing and the spring on the paddle bracket.
4)将拨杆组件安装在前壳上。
4）Install the Paddle assembly into the front
cover, and tighten the screws.
