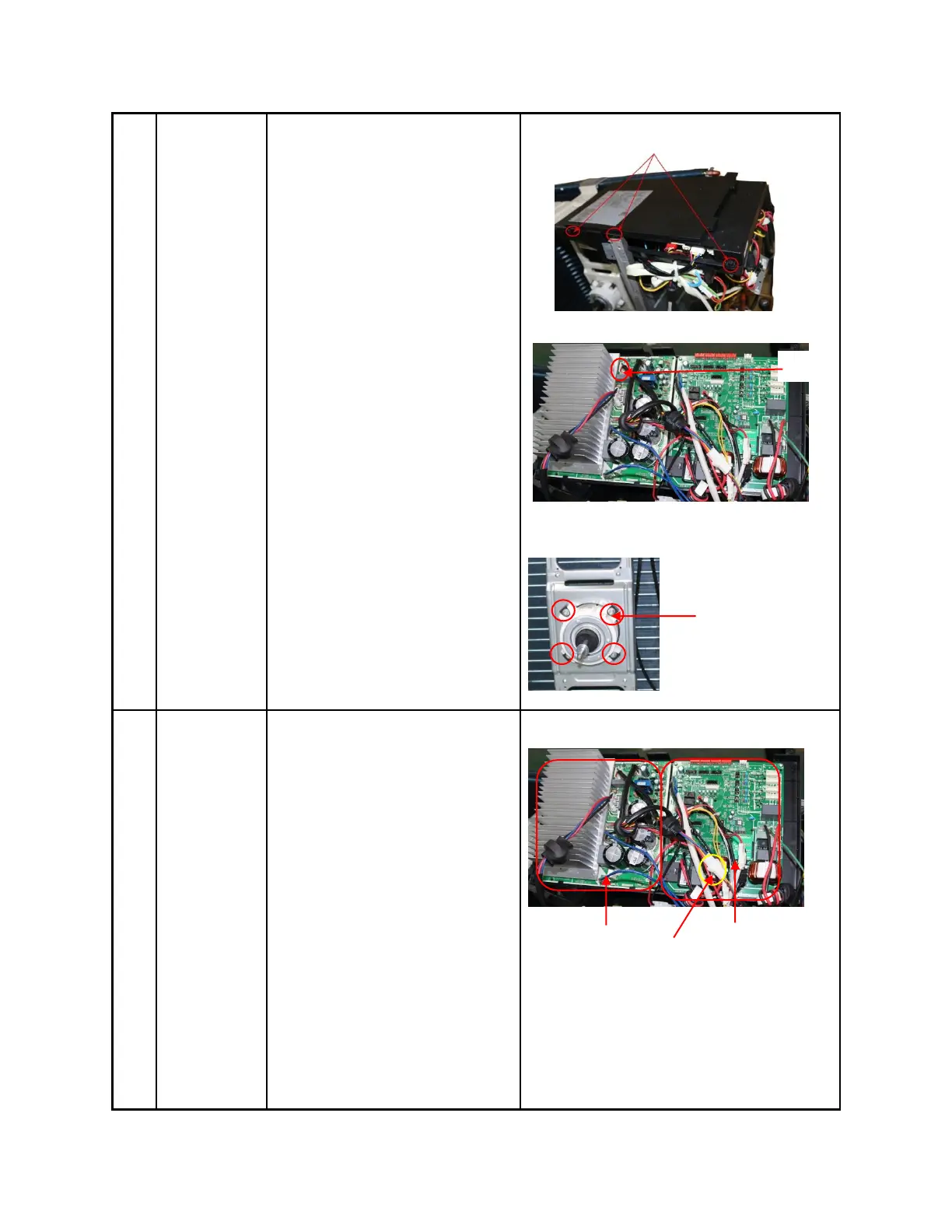

3) Remove the fan.
4) Unfix the hooks and
remove the screws, then
open the electronic control
box.
5) Disconnect the fan motor
connector CN19(3p,white)
from the driver board.
6) Remove the fan motor
after unfastening four fixing
screws.
3
Electrical
parts
How to remove the electrical
parts.
1) Perform work of item 1,2.
2) Unfasten the connector
of the reactor.
3) Unfasten the connector
of the compressor.
4) Unfasten the connector of
the PFC inductor.
5) Disconnect following 3
Driver board
PCB board
④
4s
cr
e
w
s
⑤
⑥
③
