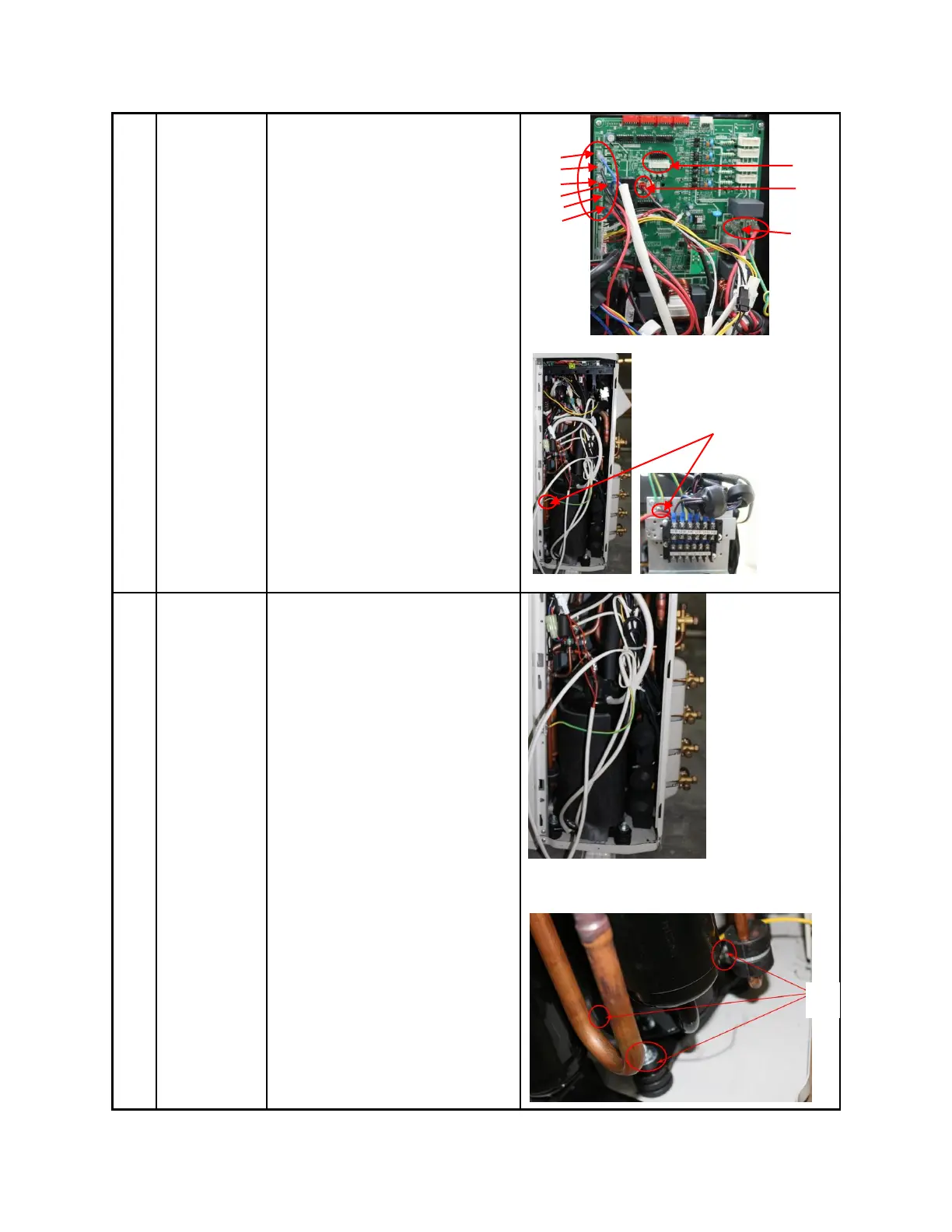

CN10/CN44: Crankcase heating
cable (black-red)
CN1:L1-IN (red)
CN2:L2-IN (black)
8) Disconnect the
grounding wire (yellow-green)
after removing the right-rear
panel.
9) Remove the PCB board.
4
Compressor
How to remove the
compressor.
1) Perform work of item 1,2,3.
2) Remove the electrical
control box and partition
plate.
3) Extract refrigerant gas.
4) Remove the sound
insulation material and
crankcase heating cable.
5) Remove terminal cover of
compressor, and
disconnect wires of
compressor thermo and
compressor from the
terminal.
⑦
⑧
CN13
CN33
CN3
CN4
CN10
CN22
CN40
CN44
CN2 CN1
